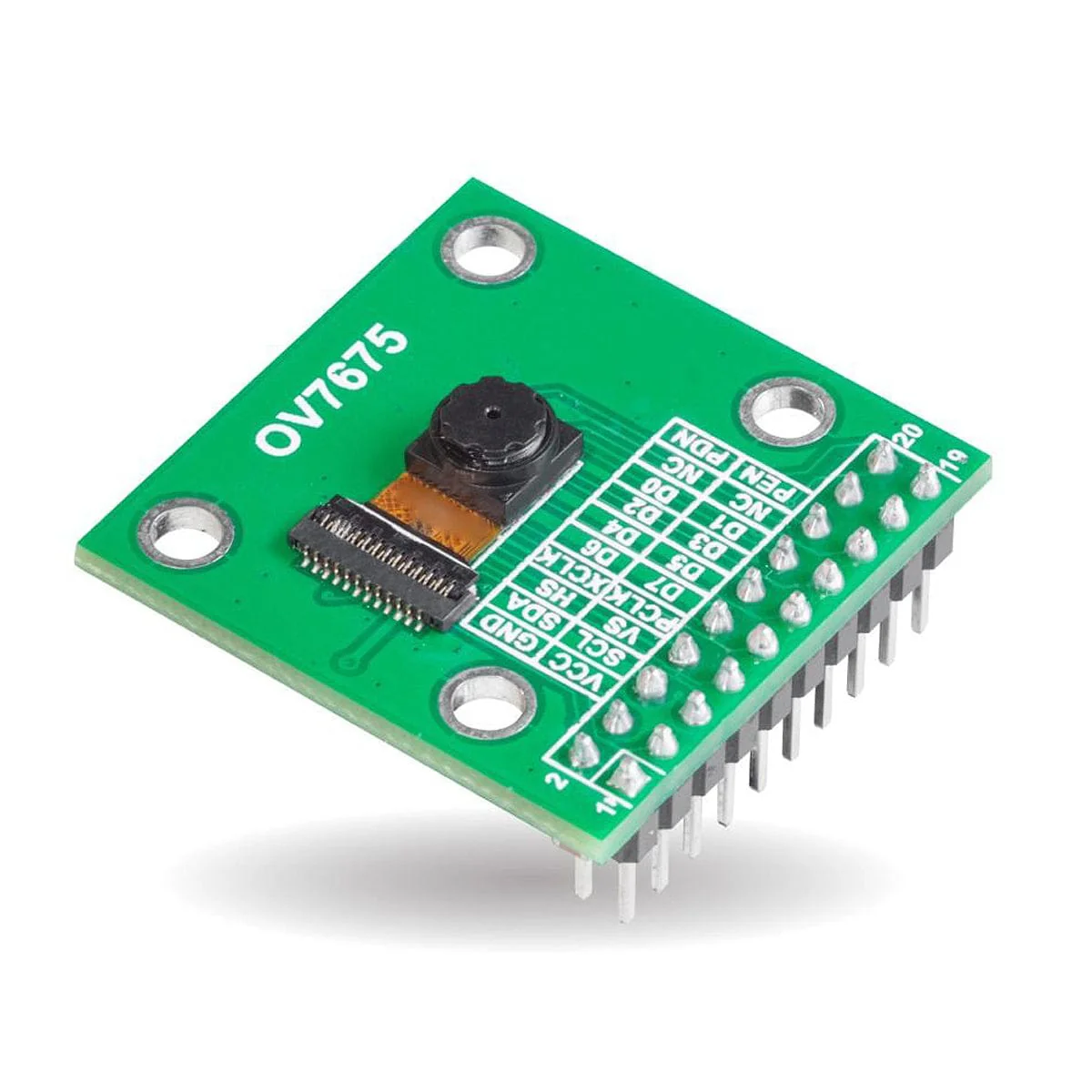

0.3MP OV7675 20-pin DVP Camera Module for Arduino GIGA R1 WiFi
This camera module is based on the OmniVision 0.3MP OV7675 image sensor, which excels in image capture with its advanced features and exceptional performance. Its pixel array captures intricate details with precision and clarity, while its low-light imaging capabilities reveal hidden elements in challenging lighting conditions.
It is fully compatible with Arduino GIGA R1 board, a professional-grade microcontroller development board recently launched by Arduino. The GIGA seamlessly integrates with this camera module, unlocking versatile image capture and processing capabilities.
Features
- Cost-effective: Affordable solution for implementing visual capabilities in projects
- Compact size: Compact form factor enables integration into space-constrained applications
- Simplify embedded vision for all: Easy to set up and operate, making it possible to add machine vision to your GIGA R1 board
- High precision: Captures images with high resolution and detail, allowing for precise visual analysis
- Low power consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications
Specifications
| Image Sensor | OV7675 |
| Active Array Pixels | 640x480 |
| Pixel Size | 2.5µmx2.5µm |
| S/N Ratio | 38 dB |
| Dynamic Range | 71 dB |
| Interface | 20-pin DVP |
| Shutter Type | Electronic Rolling Shutter |
| Color Filter Array | Quad-Bayer RGB |
| Output Format | RAW/YUV/RGB |
| Resolution&Frame Rate | 640x480/320x240/160x120@15fps |
| Lens Optical Size | 1/9 Inch |
| EFL | 1.75mm |
| F.NO | 2.8 |
| Field of View Angle | 63.9°(D) |
| Lens Distortion | <1.0% |
| Focus Distance | 0.12M - ∞(AT=0.23M) |
| Power Supply | AVDD: 2.7VA ~ 3.0V |
| DOVDD: 1.7V ~ 3.0V | |
| DVDD: 1.5V | |
| Operation Temp. | -30° C to 70° C |
| Camera Size | 30.5mm x 30.5mm |
Package Contents
- 1 x Arducam 20-pin DVP Camera Board with OV7675 CCM Module
Resources
Original: $7.20
-65%$7.20
$2.52
