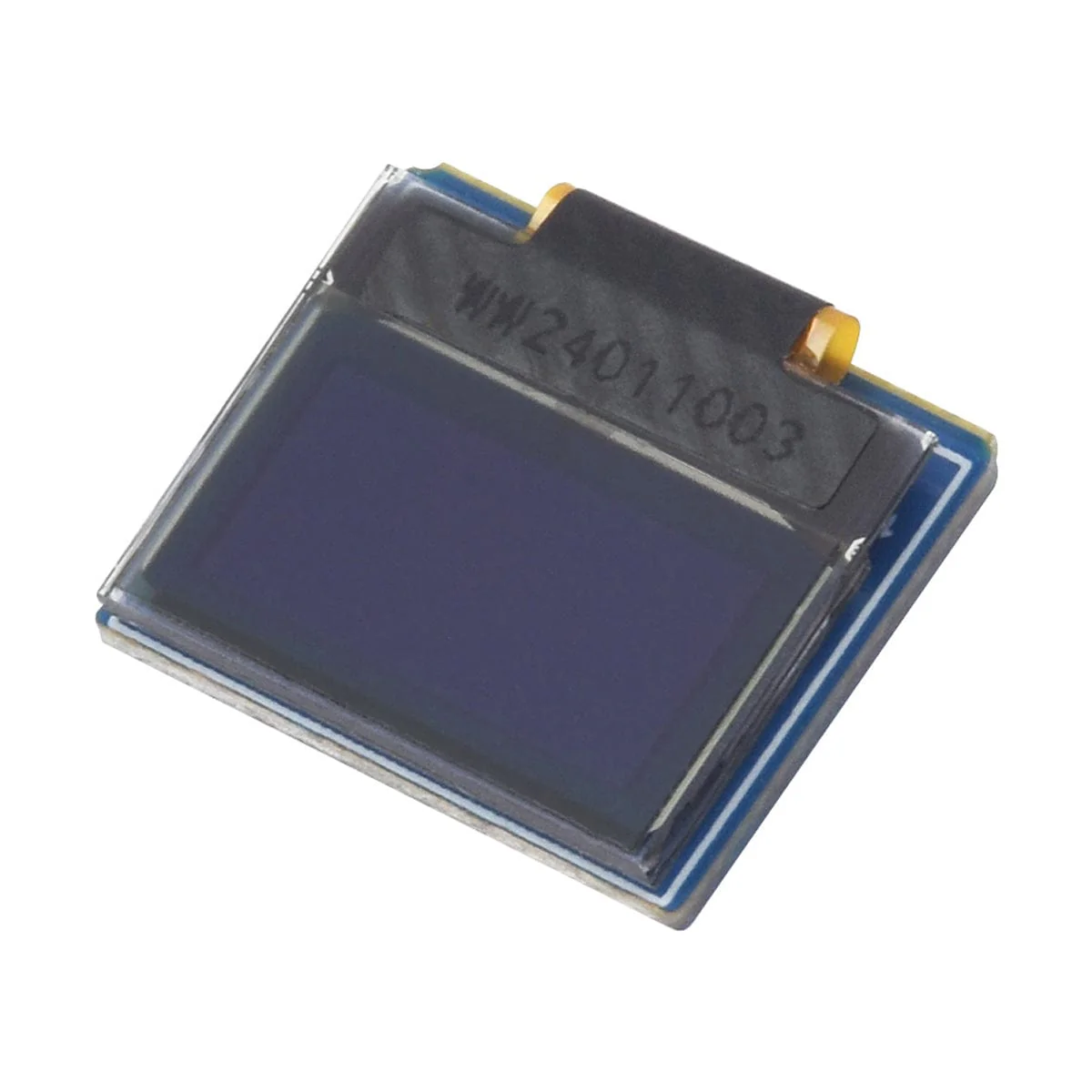

0.49" OLED Display Module (64×32)

The 0.49" OLED display has a 64 x 32 resolution, providing crisp and clear visuals in black and white. It makes use of I2C communication for easy integration with various projects. This compact display, embedded with an SSD1315 driver chip, is designed with an ultra-narrow bezel, making it ideal for space-constrained projects. The module includes an onboard voltage translator for seamless compatibility with different voltage levels. It comes with comprehensive online resources for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32 to help you get started quickly and effectively.

Features

• Ultra-narrow bezel, compact size, with onboard voltage translator
• Adopts I2C communication interface, better compatibility, fast data rate
• Comes with online development resources (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32, etc.)
• SSD1315 Driver
• I2C Interface
• OLED Display Panel
• Black/White Display Colour

Connection Example - Raspberry Pi

Specifications

Operating Voltage	3.3V / 5V
Communication Interface	I2C
Display Panel	OLED
Driver	SSD1315
Resolution	64 x 32 pixels
Display Size	14.4 x 11.5mm
Pixel Size	0.155 x 0.155mm
Module Size	15.50 x 13.00mm

Resources

• Product Wiki
• Schematic

Pinout

VCC	Power (3.3V / 5V input)
GND	Ground
SDA	Data input
SCL	Clock input

Package Contents

• 1x 0.49" OLED Module
• 1x MX1.25 4-pin cable -20cm
