1.83" IPS LCD Display Module (240 x 280)

This 1.83" LCD Display has a 240 x 280 resolution with vibrant 65K colours on an IPS LCD screen. The module is powered by an embedded NV3030B driver chip, providing a clear and colourful display.

With an SPI interface, this display module minimises the number of required IO pins, making it ideal for integration with popular controller boards such as Raspberry Pi, Arduino, STM32, and ESP32. To assist with development, the module comes with online resources, including examples for Raspberry Pi, Arduino, STM32, and ESP32, making sure you have the support needed to get started quickly and easily.

Features

• 240 x 280 resolution, 65K colours, clear and colourful displaying effect
• SPI interface, minimises required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32
• Embedded NV3030B Driver Chip
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32, etc.)

Connection Example - Raspberry Pi

Specifications

Operating Voltage	3.3V / 5V
Communication Interface	4-wire SPI
Display Panel	IPS
Driver	NV3030B
Resolution	240 x 280 pixels

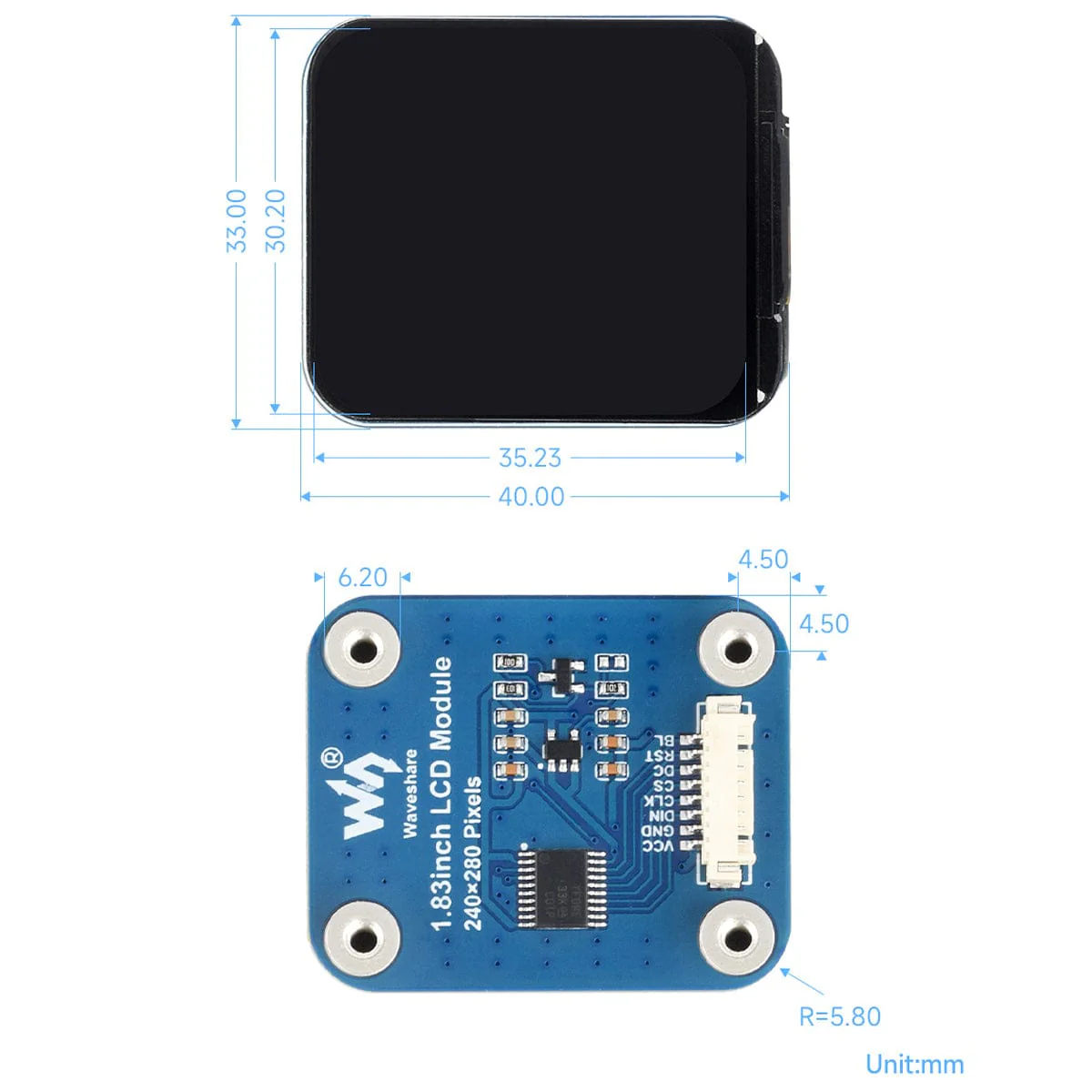

Display Size	30.20 x 35.23mm
Pixel Size	0.126 x 0.126mm
Module Size	33.00 x 40.00mm

Resources

• Product Wiki
• Schematic

Pinout

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Package Contents

• 1x 1.83" LCD Module
• 1x MX1.25 8-pin cable
