2.13" ePaper HAT+ for Raspberry Pi (250x122)

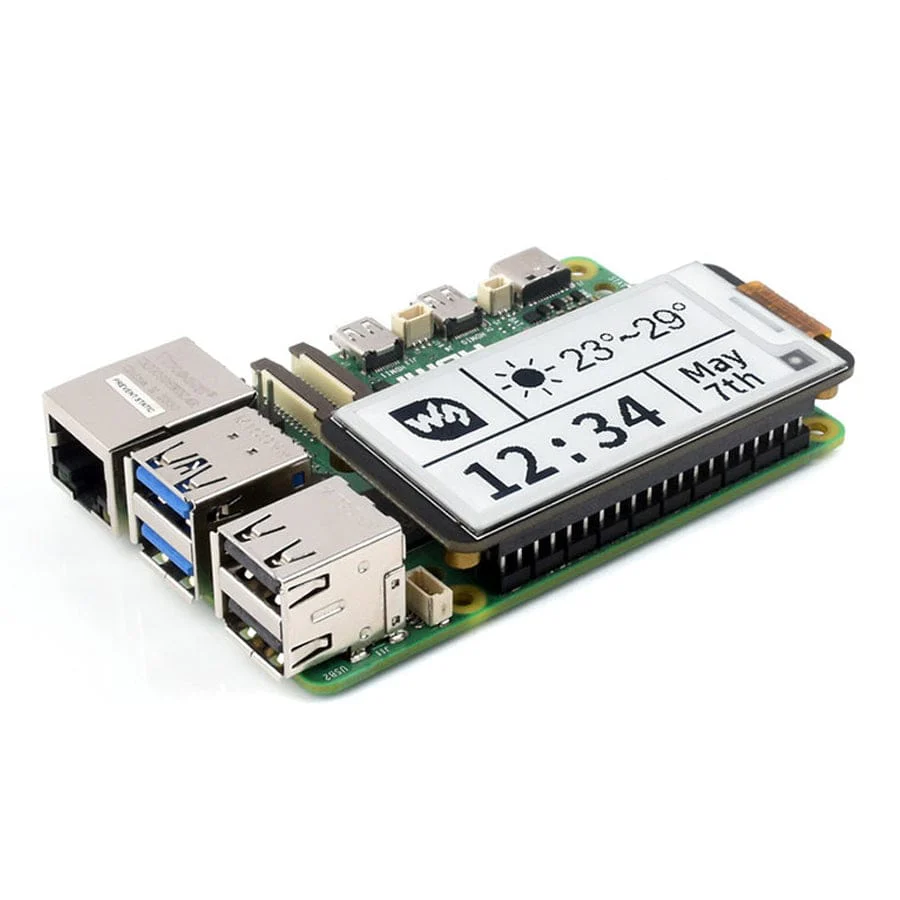

The Waveshare 2.13" E-Paper HAT+ is a compact, low-power display for Raspberry Pi, offering a 250x122 resolution and support for partial refresh. With no backlight and a paper-like display effect, it maintains the last image even when powered down—ideal for ultra-low power applications.
This version adopts the Raspberry Pi HAT+ standard and includes an onboard high-precision RTC for accurate timekeeping. The PCB uses immersion gold plating and includes extra mounting holes for easier fixing in enclosures or projects.
Refresh times are fast - full refresh takes around 2 seconds, while partial refresh completes in just 0.3s. The module supports SPI communication (3-wire/4-wire) and works on 3.3V logic. Online resources are provided, including a circuit diagram, examples for Raspberry Pi OS, plus a pwnagotchi porting guide.
This is a great option for low-power dashboards, clocks, labels, and other simple e-Paper display projects.
Raspberry Pi not included
Features
- 2.13" e-Paper display, 250x122 resolution
- Supports partial refresh (0.3s) and full refresh (2s)
- No backlight, maintains the last image when powered off
- Paper-like display effect with wide viewing angle
- 3.3V operating voltage
- 3-wire/4-wire SPI interface
- Raspberry Pi HAT+ standard form factor
- Onboard high-precision RTC
- Immersion gold PCB for durability and soldering quality
- Extra mounting holes for secure installation
- Includes online resources and examples for Raspberry Pi OS
- Includes pwnagotchi porting tutorial
Specifications
| Operating voltage | 3.3V |
| Grey scale | 2 |
| Interface | 3-wire SPI, 4-wire SPI |
| Full refresh time | 2s |
| Outline dimensions | 65 × 30.5mm |
| Partial refresh time | 0.3s |
| Display size | 48.55 × 23.70mm |
| Fast refresh time | 1.8s |
| Dot pitch | 0.194 × 0.194mm |
| Refresh power | 10.5mW (typ.) |
| Resolution | 250 × 122 pixels |
| Standby power | <0.01mW (typ.) |
| Display colour | Black, white |
| Viewing angle | >170° |
Resources
Package Contents
- 1x 2.13" E-Paper HAT+ for Raspberry Pi (Black/White) (250x122)
- 1x Screws pack
Raspberry Pi not included
Revision History
As of 05/08/2025 - We are stocking the latest version from Waveshare, which no longer includes a lithium battery.
