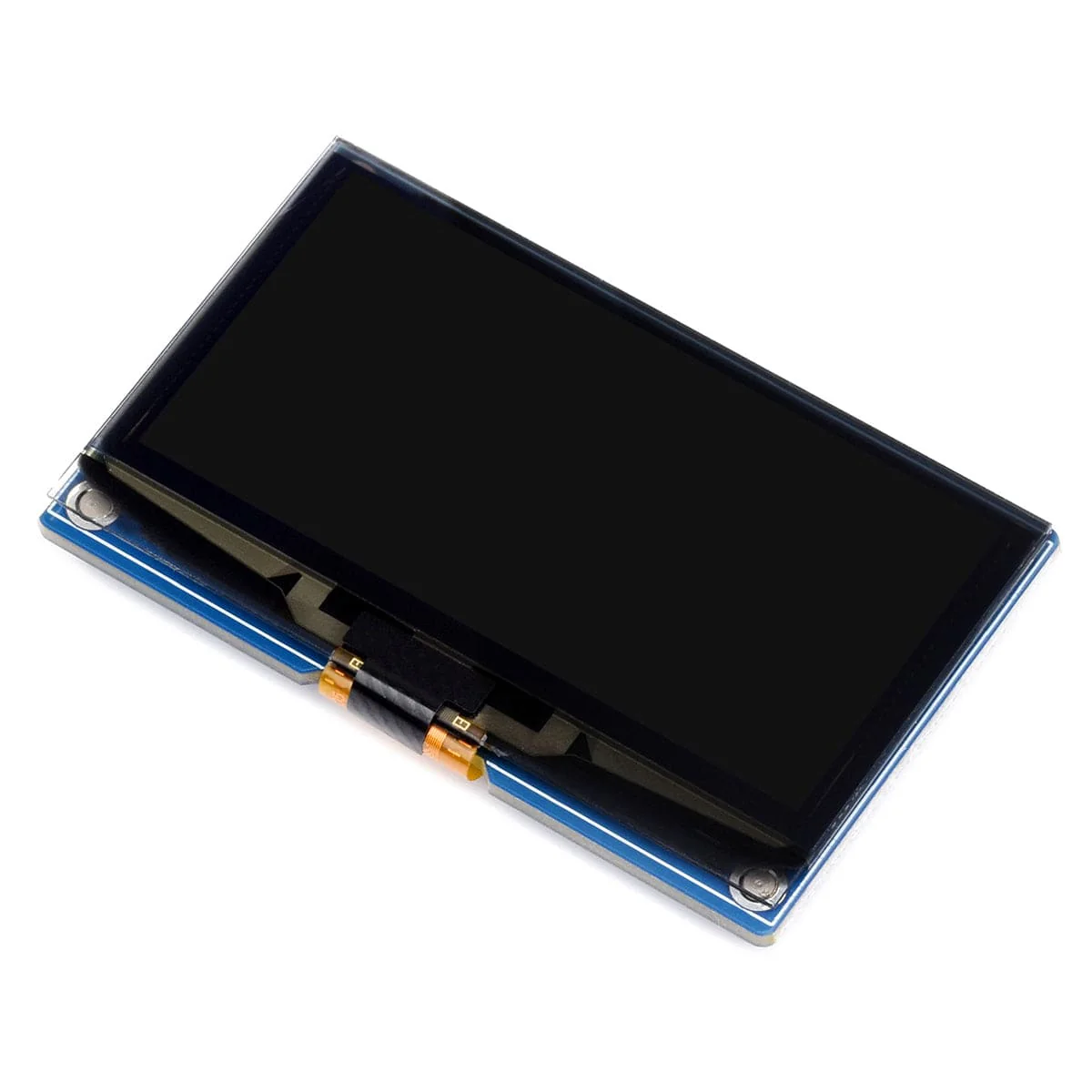

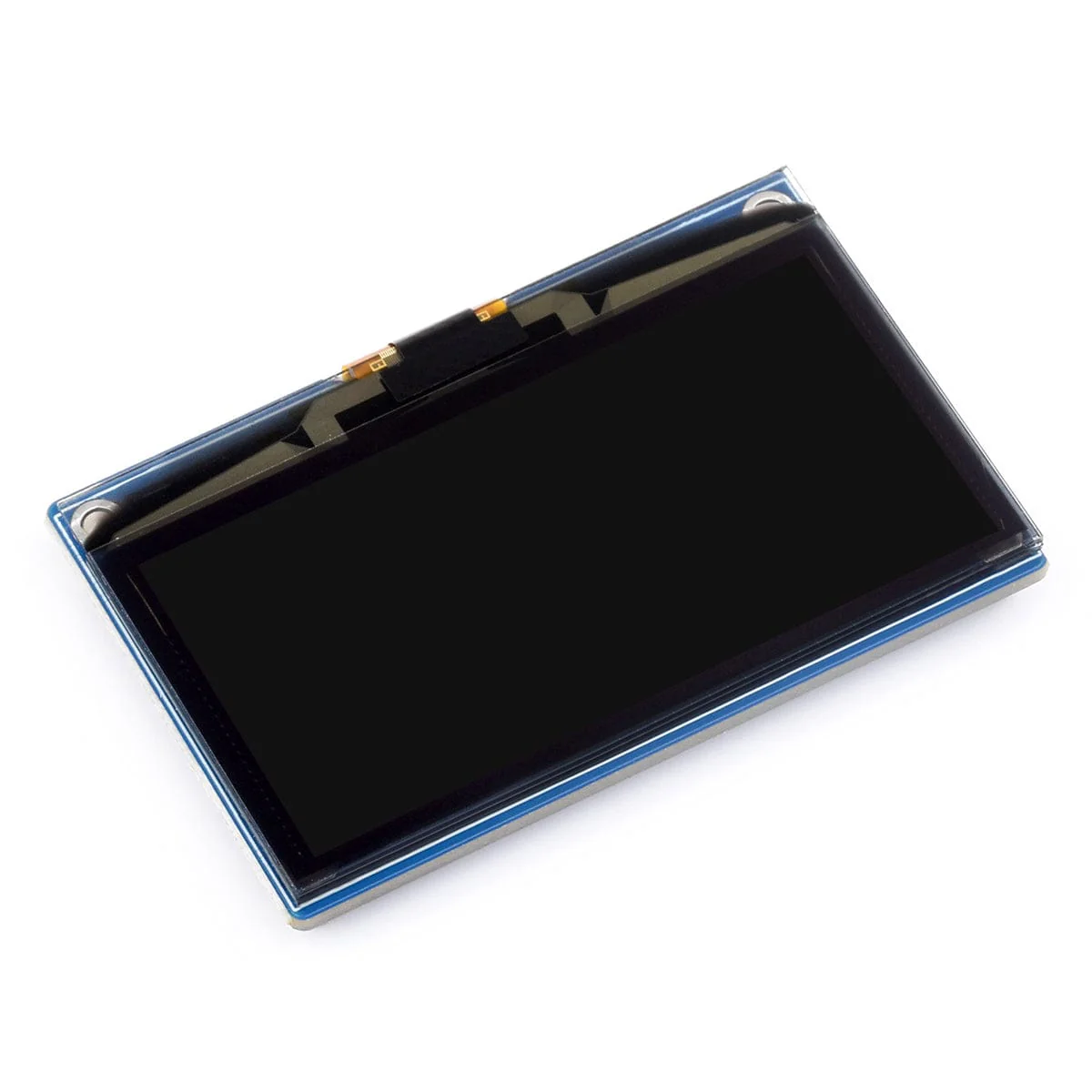

2.42" OLED Display Module (128 x 64)

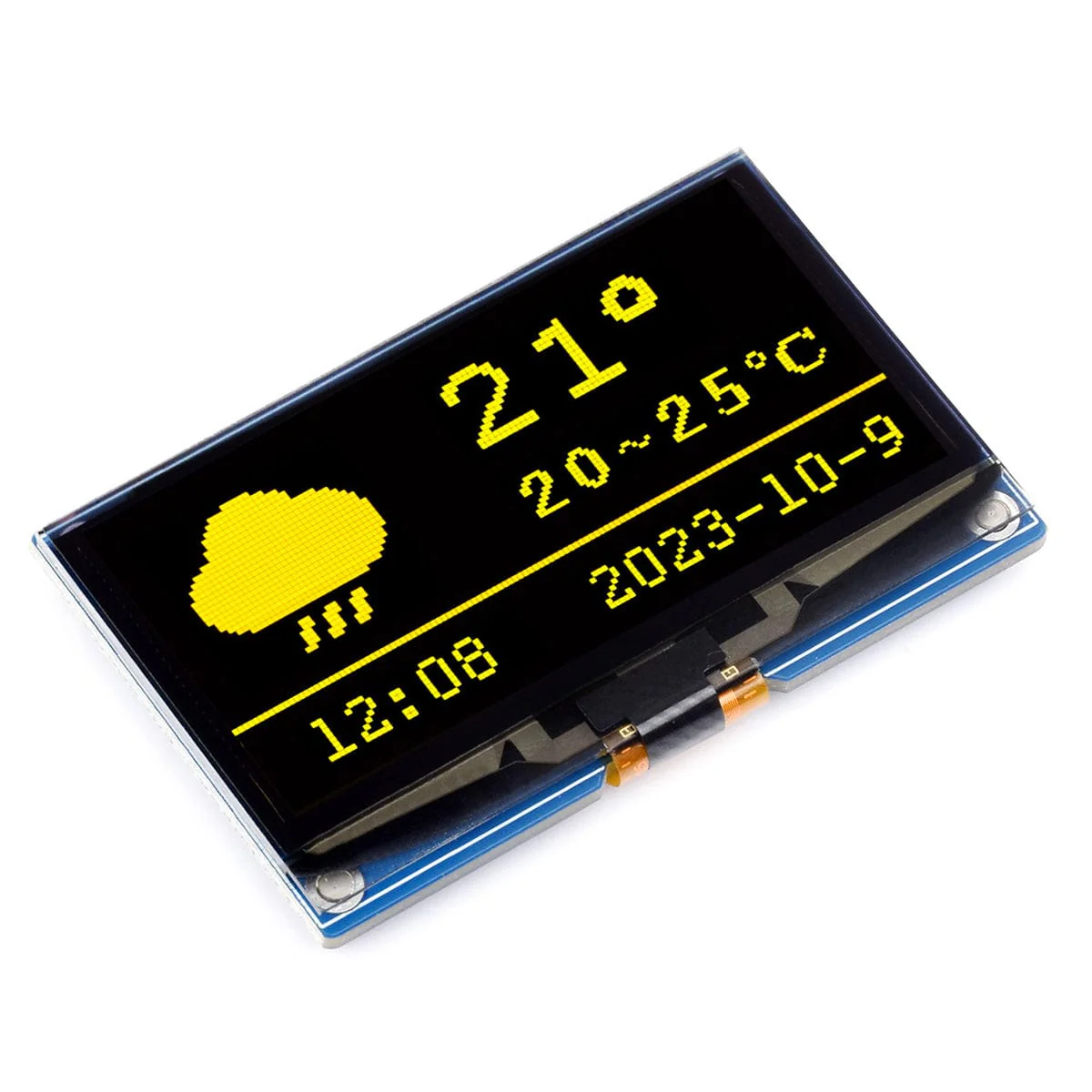

This 2.42" OLED module comes in either a bright white or yellow colour display and has an SSD1309 driver, making this a small but powerful module that you can use with many different projects!

It connects via a GH1.25 7-pin connector and is compatible with multiple development platforms including Raspberry Pi, Arduino, STM32, ESP32, and Jetson Nano. Online development resources and example codes are available to provide easy integration and prototyping for your next project!

Note: Does NOT come with a Raspberry Pi board

Features

• OLED Display Panel
• SSD1309 Driver
• SPI/I2C Connector
• White Colour
• Ultra-narrow bezel, compact size, with onboard voltage translator
• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
• Comes with online development resources (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32/ESP32/Jetson Nano)

Connection Example - Raspberry Pi

Specifications

Operating Voltage	3.3V / 5V
Resolution	128 x 64 pixels
Communication Interface	4-wire SPI (default) / I2C
Display Size	55.01 x 27.49mm
Display Colour	2.42" OLED Module: white
Display Panel	OLED
Pixel Size	0.4 x 0.4mm
Driver	SSD1309
Module Size	61.50 x 39.50mm

Resources

• Product Wiki
• Schematic

Pinout

Package Contents

• 1x 2.42" OLED Module
• 1x GH1.25 7-pin cable
