3.4" DSI Round Touch Display (800x800)

This 3.4" round touch display is a great way to add a front-end interface to many different projects!

The display has a 170° wide viewing angle that provides an excellent display performance along with a 10-point capacitive touch screen that allows you to easily zoom, rotate, swipe, drag, double tap or use other gestures with up to ten fingers on the screen at the same time (OS-dependent). It has a colourful 800x800 resolution, a tough glass panel, and support for Raspberry Pi boards.

Note: some CM3/3+/4 baseboards require an extra adapter cable, found here

Features

• 3.4" IPS round display with a hardware resolution of 800×800
• 10-point capacitive touch control, up to 6H hardness toughened glass panel
• Optical bonding technology for clearer imaging
• Directly drive LCD via Raspberry Pi's DSI interface, refresh rate up to 60Hz
• Raspberry Pi OS system driver is provided for use with Raspberry Pi
• Support Pi 4B/3B+/3A+, some CM3+/4 need to be used with an adapter cable
• Adjust the backlight via the software

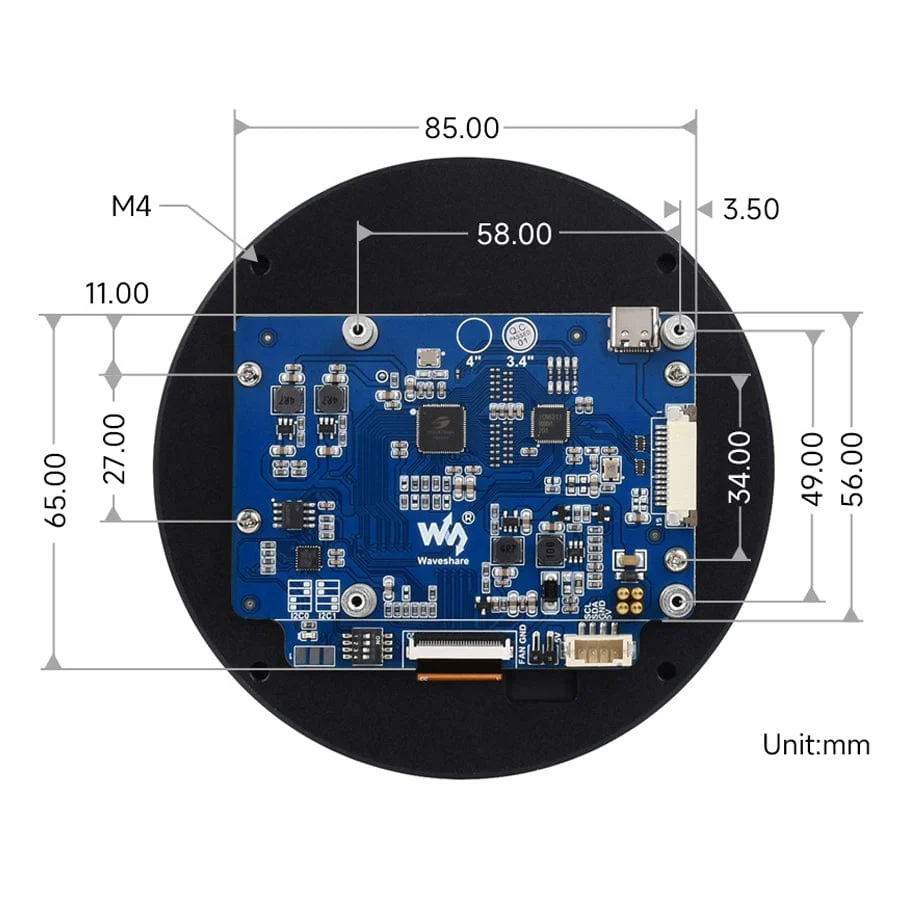

What's Onboard

Specifications

Resolution	800×800
Display Port	DSI
Display Panel	IPS
View Angle	170°
Touch Type	Capacitive
Touch Port	I2C
Toughened Glass Panel	Y
Optical Bonding	Y
Speaker	N
Signal Output	N

Resources

• Product Wiki

Package Contents

• 1x 3.4" DSI Round Touch Display
• 2x FPC 15-pin cable (50mm)
• Screws pack
