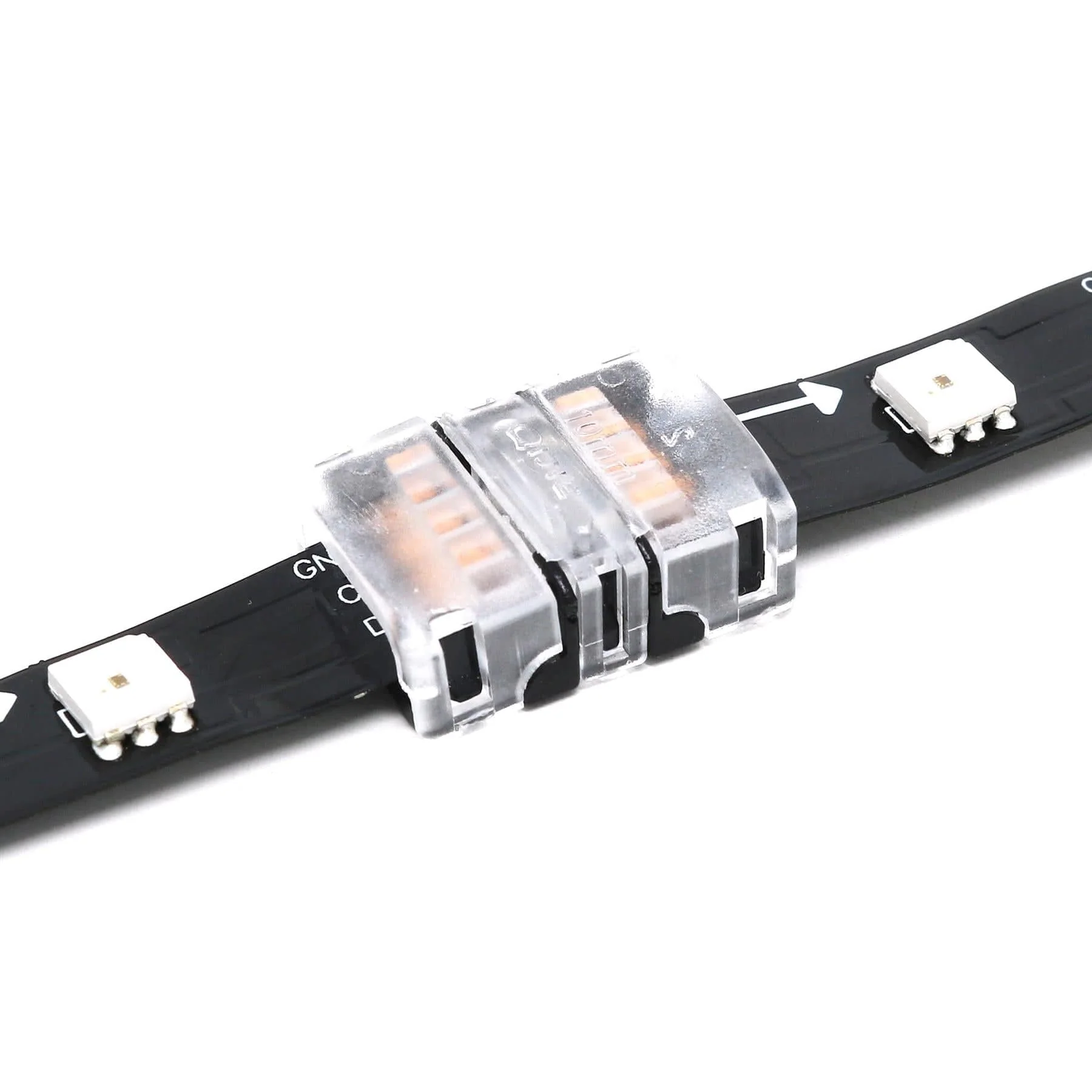

4-pin LED Strip Connectors - Strip to Strip (10mm)

These 4-pin 'strip to strip' LED strip connectors provide a secure and solder-free way to join our Illuminate 4-pin APA102 LED strips together for your project.

Simply cut your strips at the metal connection section, place them into each end then snap the connector down. We also offer matching 4-pin connectors in a 'strip to wire' format.

Only compatible with strips with a 10mm internal PCB (check the strip you're planning to use this with before buying).

Comes as a pack of 5 connectors.

Usage Notes

• The clear snap-down parts can break off if bent back too far or over time with use. They will still work perfectly fine once fitted.
• You may need to use pliers to gently compress the clamps onto the connectors until they click into place.
• To release the connector, use a thin tool to release the clear connector sections
• For indoor usage only
• May work with other brand LED strips however we have only tested these on our 10mm Illuminate LED strips

Features

• 4-Pin LED Strip Connectors
• Easy to install, no soldering required
• Pack quantity: 5
• Type: Strip to Strip
• LED strip internal PCB size: 10mm
• Rated voltage: 0-36V
• Rated current: 5A
• Working temperature: -20℃ to 60℃
