51mm Whip LTE Antenna
This RF Antenna is designed specifically for use with LTE modem boards. Its whip multiband antenna gives a strong performance in a minimal footprint, which is ideal for setups where space is limited. Unlike many antennas, it doesn’t require mounting on a metallic surface, making it especially useful for compact IoT installations and small devices.

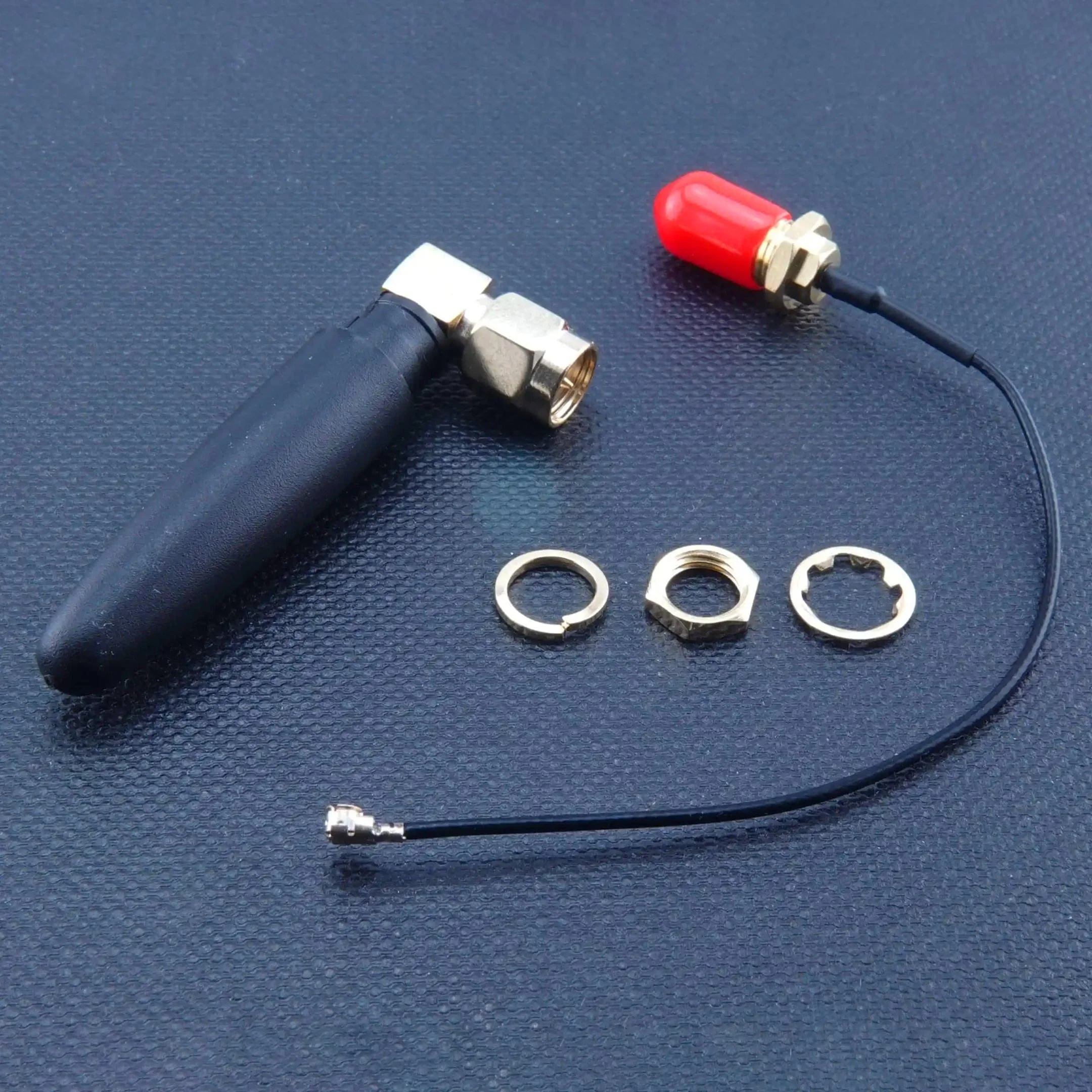

This antenna kit includes an RF cable assembly featuring an SMA (Female) connector and a JK-IPEX/MHF/U.FL connector for easy PCB connection. The coaxial cable is 1.13mm in diameter, with a 50-Ohm rating, and measures 100mm in length, providing a solid link for reliable LTE connectivity.
This comes in two variants. Straight and Angled. Please choose which version you want before adding it to your cart!
Specifications
| Characteristic impedance | 50 ohms |
| Radiation Pattern | Omni Directional |
| Polarisation | Linear |
| Temperature Range | -40C – +85C |
| Dimensions | 51mm x 10.4mm |
| Connector | SMA Male (Straight) |
| SMA Male (90 Degree Angled) | |
| Connector Plating | Gold/Nickel |
Original: $8.10
-65%$8.10
$2.83
