8 Relay Card for Raspberry Pi [discontinued]

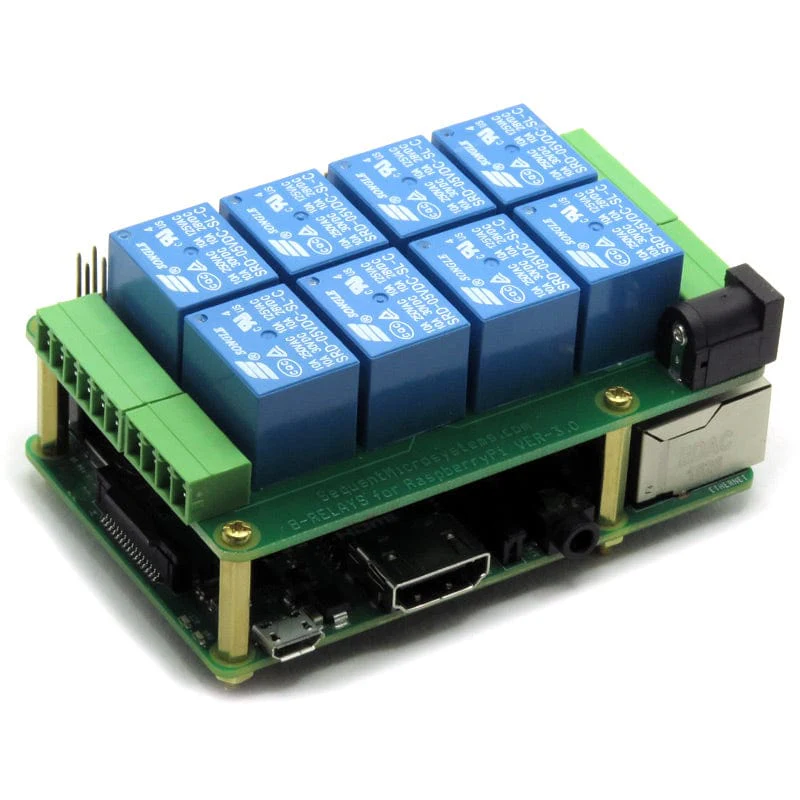

Sequent Microsystems The 8-RELAY card is a stackable expansion card for Raspberry Pi B+, 2, 3, 4 and Zero. It offers a compact and inexpensive solution for adding up to 64 relays to a Raspberry Pi project.

Limits! This card can switch 120VAC/4A (24V if DC). If you need to switch higher voltages/currents, the 4-relay card is rated to 250VAC/10A.

Please Note. The IO-Plus has 8 relays plus a lot of IO functions: 8 ADC inputs, 4 DAC outputs, 8 digital inputs, 4 digital outputs.

The 8 Relay is 8 level stackable, yielding a total of 64 relays in one stack. You can also create a stack with up to 4 MegaIO and up to 4 more 8Relay cards.

Two of the Raspberry Pi’s GPIO pins are used for I2C communication, leaving 24 GPIO pins available for the user.

8-RELAY adds the following I/O functions:

• Eight on-board relays
• Eight later stackable: add up to 64 relays to your Raspberry Pi
• Command line, python drivers

Technical Specifications:

• Relay limits (due to PCB construction)
• Relay max current/voltage: 4A/120VAC (24V if DC)
• Power requirements
  • 10 mA @ +5V (all relays off)
  • 750 mA @ 5V (all relays on)

Package Contents

• 8 Relay board
• Mounting hardware and jumpers
• Relay connector plugs

Resources

• User Guide
• Command Line & Python Drivers
• Node-Red Code Example
• I2C Address Map
