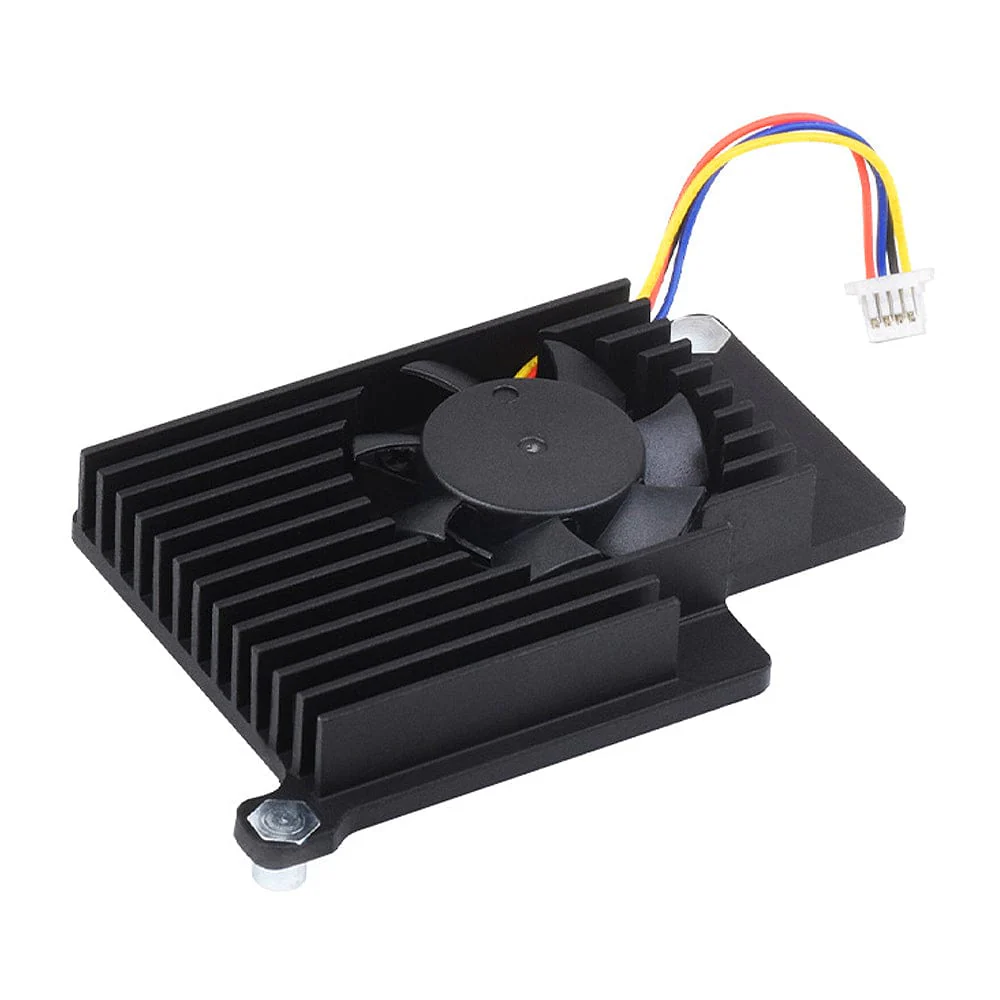

Active Cooling Heatsink for Raspberry Pi 5

The Waveshare active cooling heatsink is designed to optimise the performance of your Raspberry Pi 5 by keeping the critical components cool.

The heatsink offers efficient cooling with a minimal footprint, connecting to the board via the dedicated Raspberry Pi 5 heatsink mounting points. The tall heatsink fins move heat away from your Pi, assisted by the cooling fan.

The fan connects to the dedicated Raspberry Pi 5 fan header, meaning all your GPIO pins are left free for your project, and offers software-controlled fan speeds.

The heatsink also comes bundled with thermal pads, ensuring reliable heat transfer from your Raspberry Pi.

Note: The Raspberry Pi is not included

Specifications

Input Voltage	5V DC (supplied via 4-pin fan header on Raspberry Pi 5)
Fan Speed Control	Pulse width modulation control with tachometer
Maximum Airflow	2.35 CFM
Fan Speed	8000±10% RPM
Weight	0.029kg
Material	Anodised aluminium

Package Contents

• 1x Active Cooling fan
• 3x Thermal pads
• 2x Nylon screws
