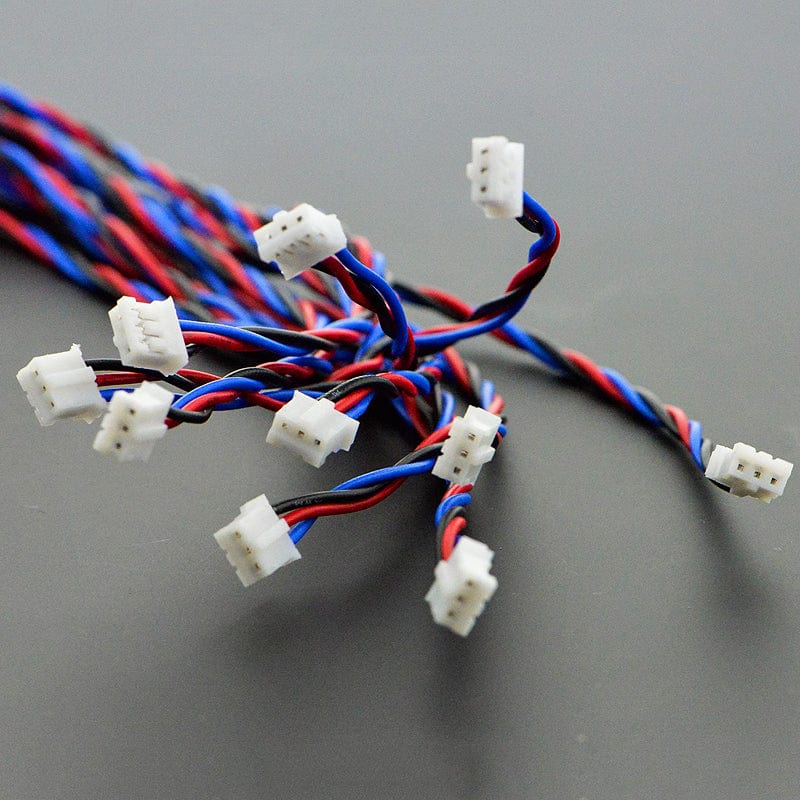

Gravity: Analog Sensor Cable - 30cm (10 Pack)
These analog sensor cables are specially designed for our popular IO Expansion shield and sensors. It connects most of our analog sensors to the IO board.
Includes 10 cables.
Latest Update: Changed the analog sensor extension pin mapping to be compatible with the latest IO expansion shield and Romeo analog sensor expansion pinout.
Latest Pin mapping for Analog sensor extension
- Red: PWR; Blue: Signal
Specifications
- Length: 30cm
- Maximum voltage:<50V
- Maximum current:<1000mA
- One Servo Type connector with Signal, GND PWR.
- One 3 Pin JST connector
Package Contents
- 1x Analog Sensor Cable For Arduino (10 Pack)
Original: $5.80
-65%$5.80
$2.03
Description
These analog sensor cables are specially designed for our popular IO Expansion shield and sensors. It connects most of our analog sensors to the IO board.
Includes 10 cables.
Latest Update: Changed the analog sensor extension pin mapping to be compatible with the latest IO expansion shield and Romeo analog sensor expansion pinout.
Latest Pin mapping for Analog sensor extension
- Red: PWR; Blue: Signal
Specifications
- Length: 30cm
- Maximum voltage:<50V
- Maximum current:<1000mA
- One Servo Type connector with Signal, GND PWR.
- One 3 Pin JST connector
Package Contents
- 1x Analog Sensor Cable For Arduino (10 Pack)
