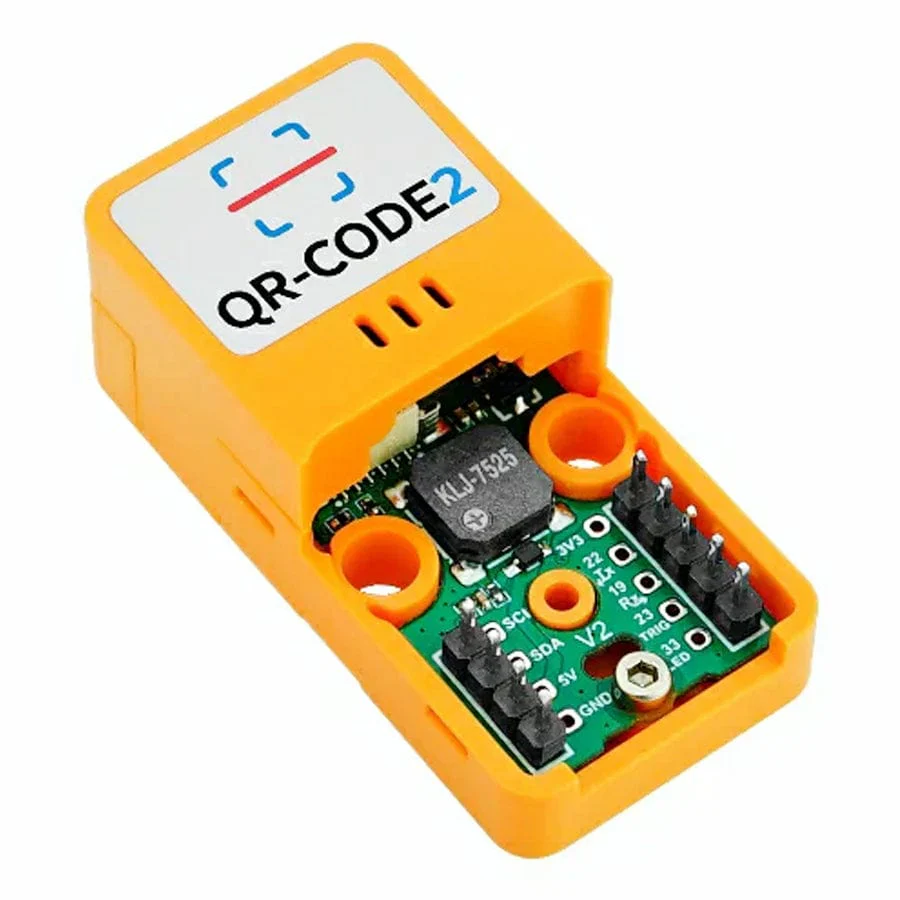

ATOMIC Barcode/QR-Code Scanner 2 Base
This code scanner is designed specifically for the ATOM series hosts. The 1D/2D barcode scanning base supports 3 major types of 2D barcodes and 8 types of 1D barcodes. It has a built-in buzzer and supplementary LED light, providing audio feedback in different states, and a green LED for focus and aiming assistance.

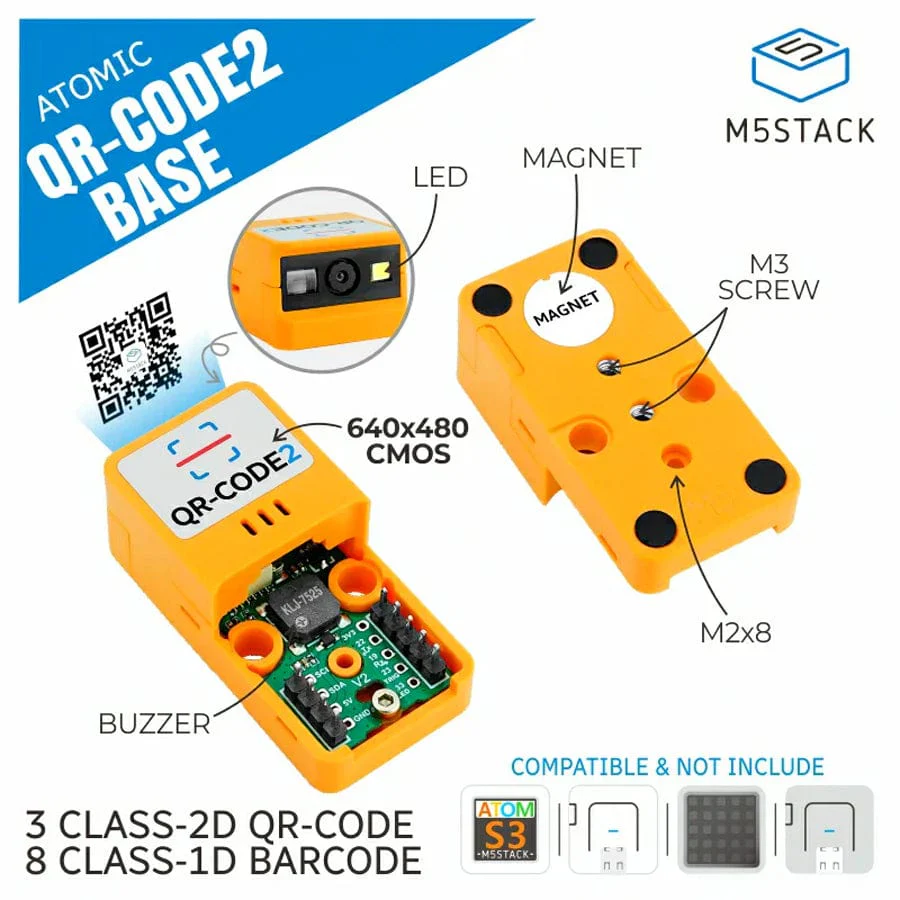

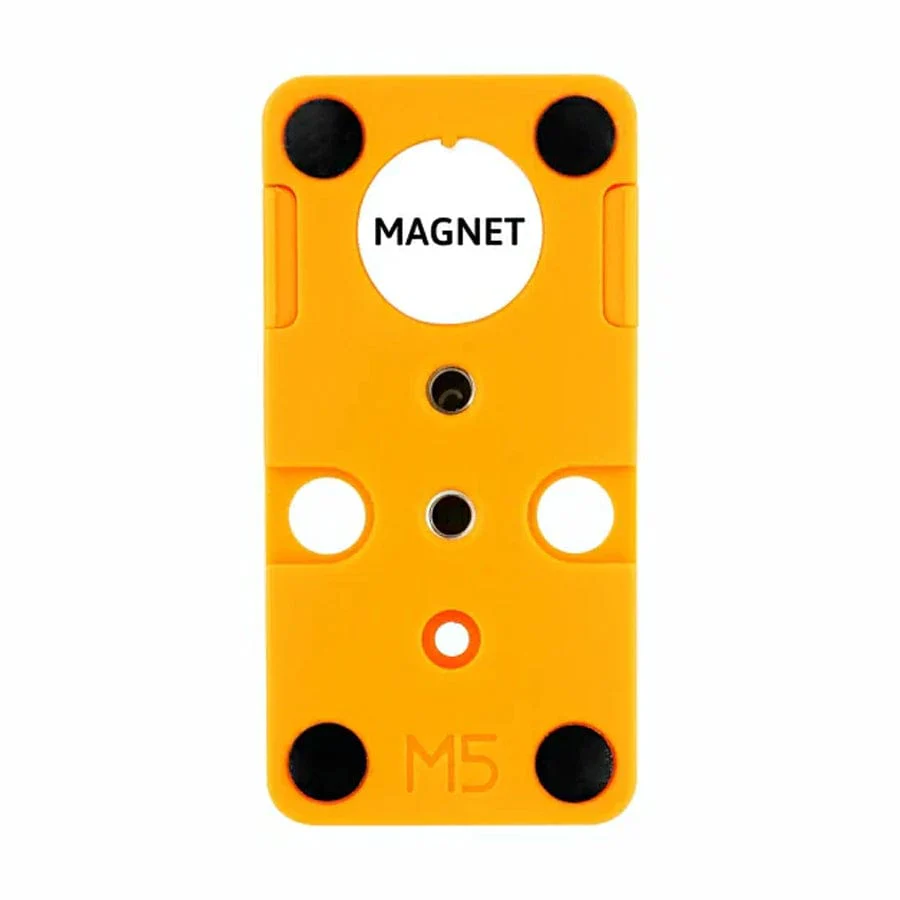

Scanned data can be transmitted to the receiving end via wired or wireless means using the ESP32 built into the M5Atom host. The base includes magnets, M3 screw holes, and LEGO-compatible holes on the back, offering multiple mounting options. It is ideal for use in logistics, retail, manufacturing, and other fields.
Features
- Supports 3 types of two-dimensional code and 8 types of one-dimensional code

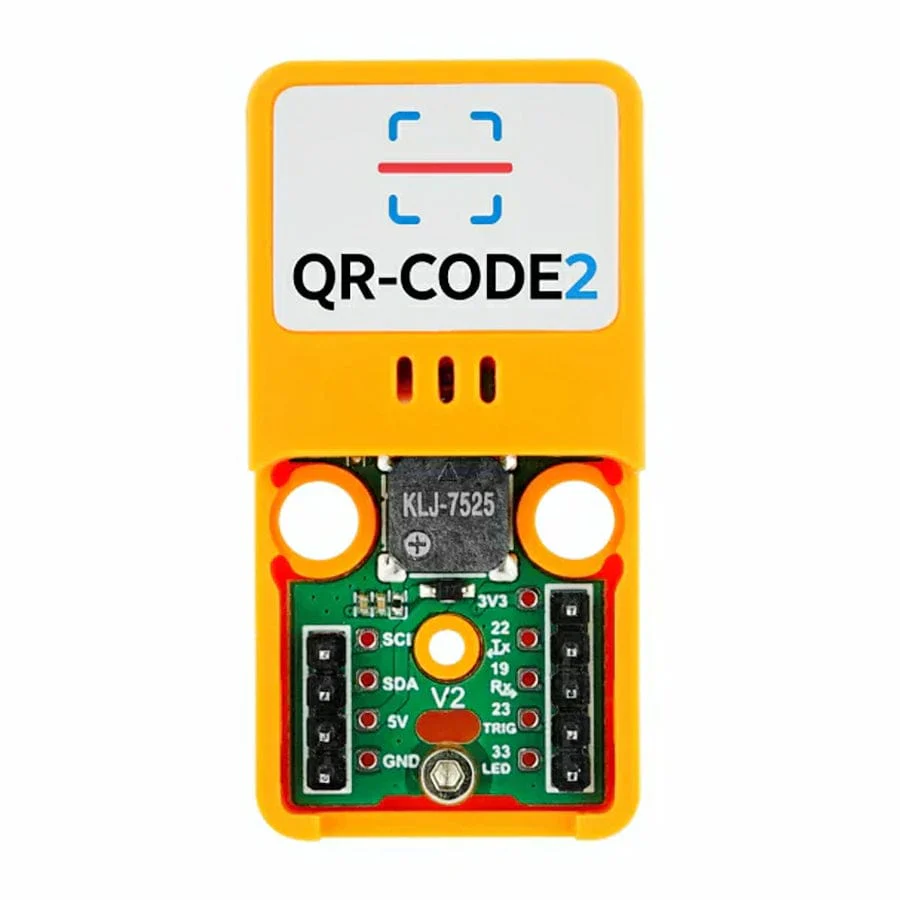

- Built-in buzzer sound prompts

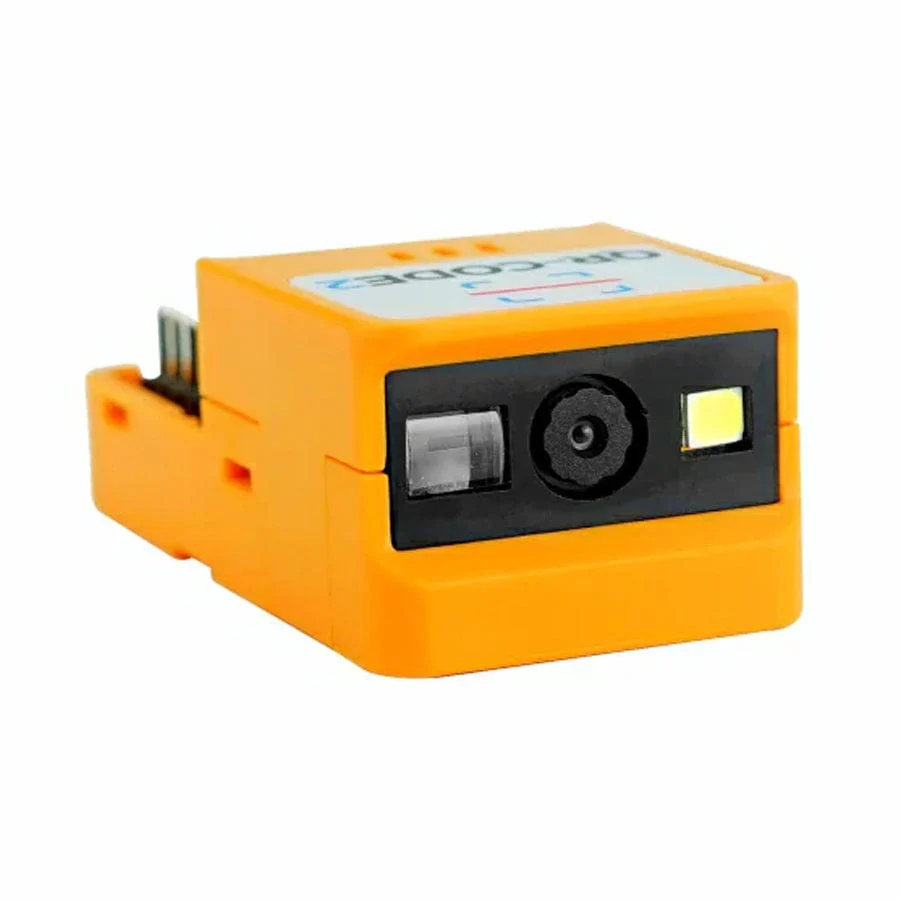

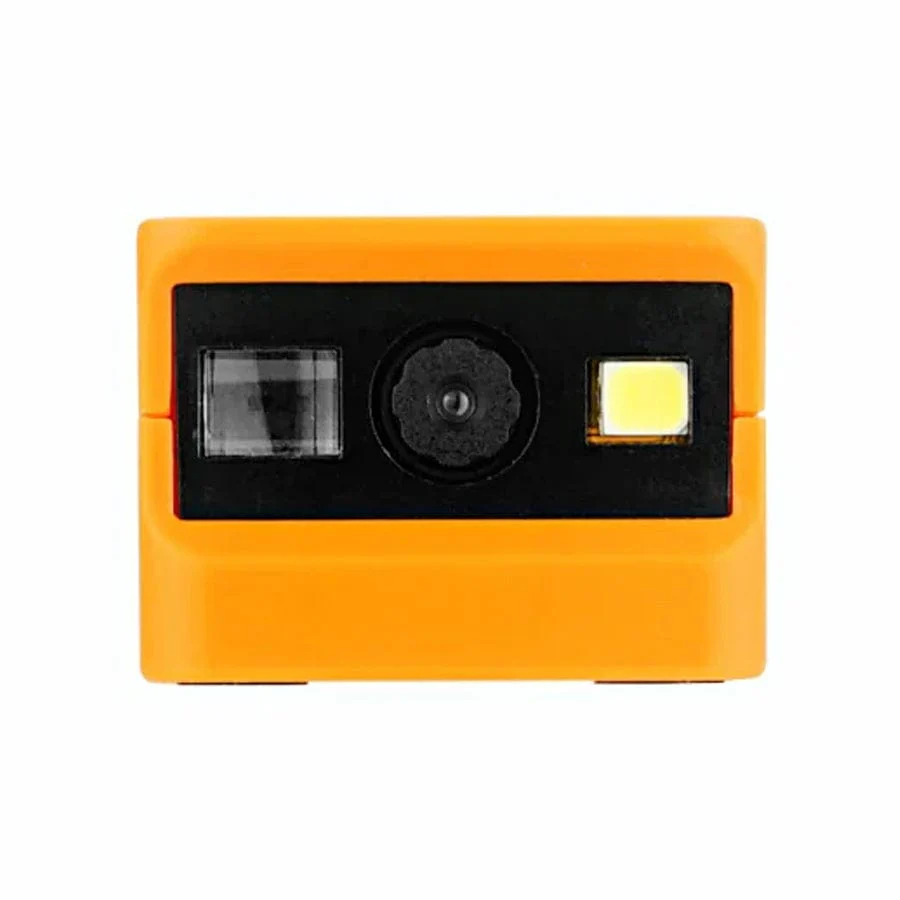

- Built-in lighting LED
- High-resolution imaging
- Focusing and aiming functions
Specifications
| Sensor | 640 x 480 CMOS |
| Illumination | White LED |
| Focus Indicator | Green LED |
| Recognized 2D Barcode Types | PDF417, QR Code, Data Matrix |
| Recognized 1D Barcode Types | Code39, Code93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5 |
| Recognition Precision | ≥5mil |
| Print Contrast | ≥20% |
| Scan Angle | Rotation 360°, Tilt ±55°, Skew ±55° |
| Field of View | Horizontal 34°, Vertical 28° |
| Communication Interface | UART |
| Power Consumption | Standby current (without ATOM Lite): DC5V/116.57mA |
| Standby current (with ATOM Lite): DC5V/174.18mA | |
| Casing Material | Plastic (PC) |
| Operating Temperature | 0-40°C |

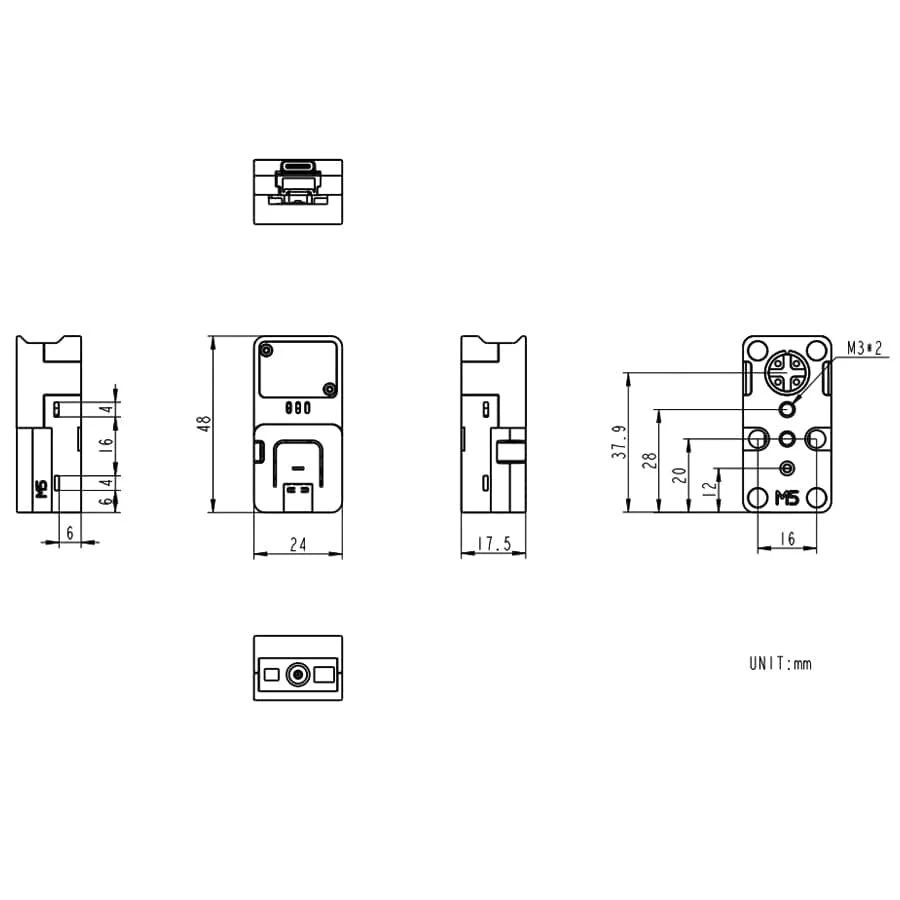

| Product Size | 48 x 24 x 17.5mm |
| Package Size | 136 x 92 x 18mm |
| Product Weight | 12g |
| Package Weight | 14.2g |
Resources
Package Contents
- 1x ATOMIC Barcode/QR-Code Scanner 2 Base
