ATOMIC CANBus Base (CA-IS3050G)

The ATOMIC CAN Base is a CAN bus communication unit created to work with the ATOM series controllers. Utilising the CA-IS3050G transceiver solution, this unit includes a built-in DC-DC isolated power chip, enhancing circuit safety by isolating interference and protecting against damage to sensitive components. Made for compatibility with Atom Matrix, Atom Lite, AtomS3, and AtomS3 Lite, the ATOMIC CAN Base is ideal for vehicle transportation and security system projects.

Supporting up to 110 nodes, this unit offers scalability for extensive system networks. It has a high-speed signal transmission rate of up to 1Mbps, providing reliable data communication. The base is equipped with electrical circuit protection measures, including a common-mode voltage range of -12V to +12V. It features over-voltage protection, failure protection, and over-temperature protection, all of which safeguard against electromagnetic interference, overvoltage, and current peaks, thereby maintaining the stability and reliability of communication signals.

Features

• Fits ATOM Matrix/ATOM Lite/ATOMS3/ATOMS3 Lite
• CAN bus multipoint communication
• Built-in isolation DC-DC
• Signal rates up to 1Mbps
• Signal rates up to 1Mbps
• Protection function

Specifications

External port	VH-3.96-4P
CAN transceiver type	CA-IS3050G
Highest rate	1Mbps
Number of supported nodes	110
Low loop delay	150ns
Common mode voltage	-12V ~ 12V
Operating temperature	0-40°C

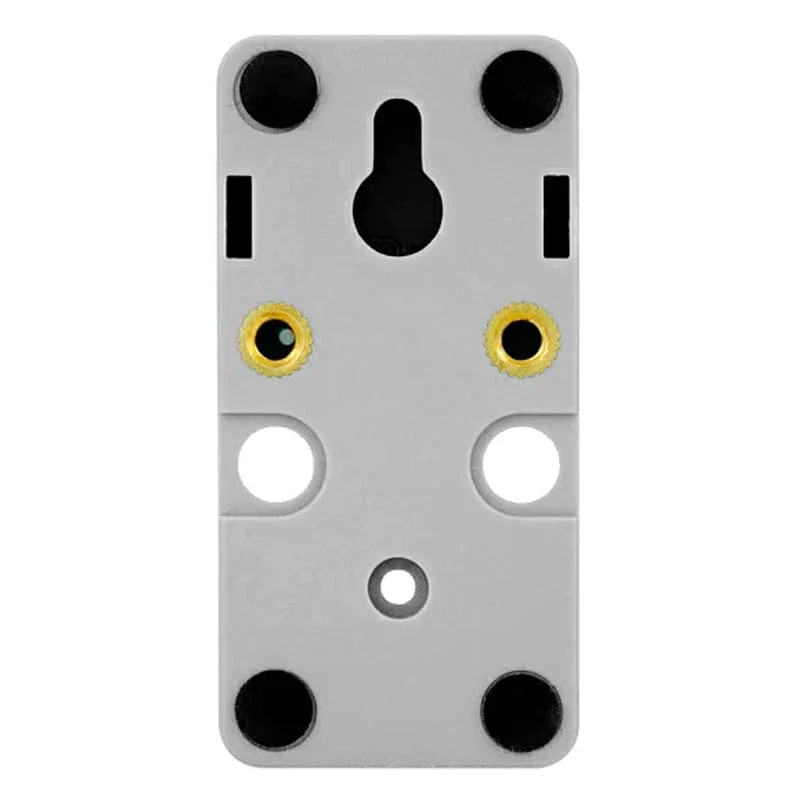

Shell material	Plastic (PC)
Product Size	24 x 48 x 18mm
Package Size	136 x 92 x 20mm
Product Weight	11.1g
Package Weight	15.6g

Resources

• Product Wiki

Package Contents

• 1x ATOMIC CAN Base
• 1x 3.96-4P terminal
