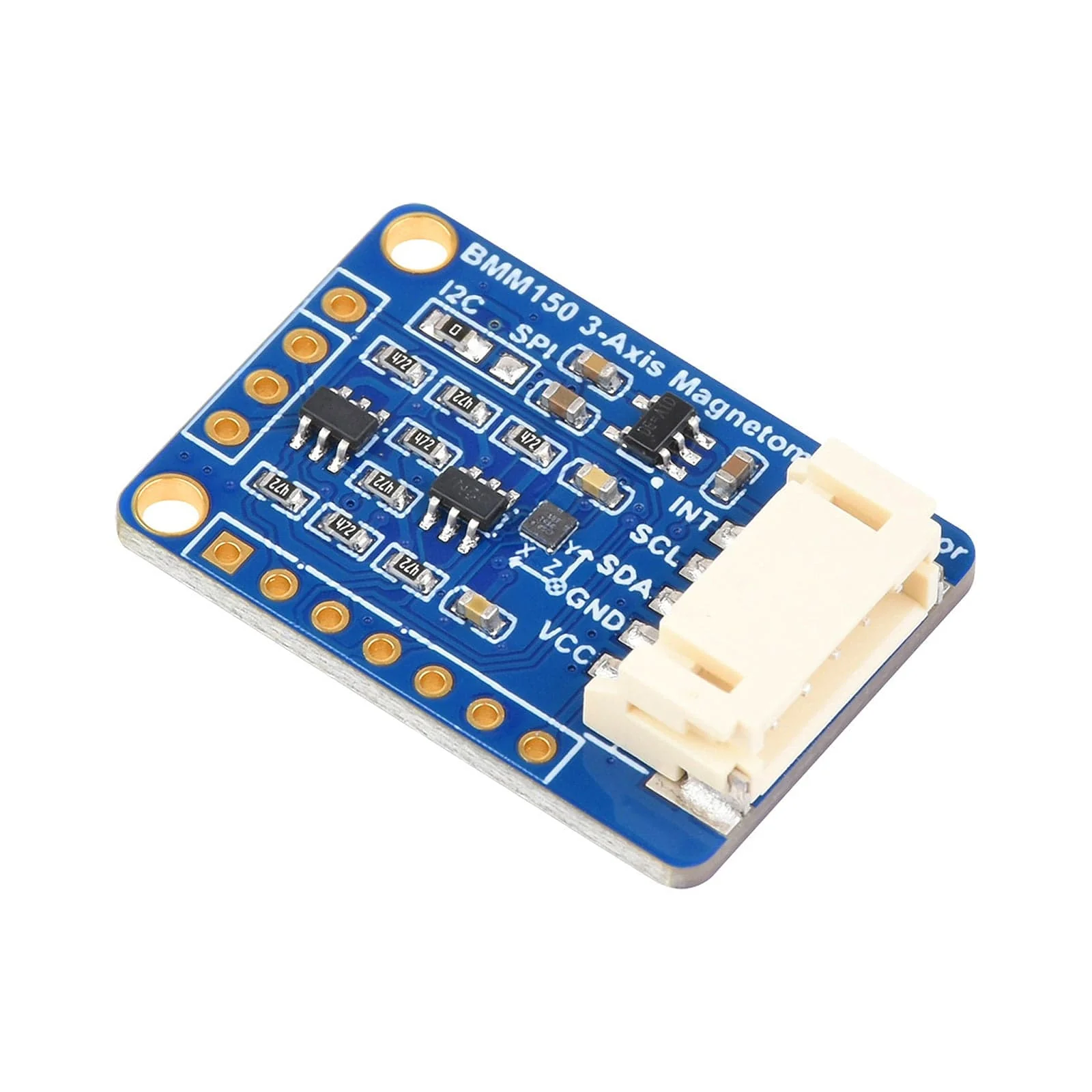

BMM150 3-Axis Magnetometer Sensor
The BMM150 is a high-performance 3-axis magnetometer sensor, designed to provide accurate and reliable magnetic field measurements for a wide range of applications. This compact and versatile sensor is part of Bosch Sensortec's sensor family, offering exceptional precision and sensitivity to detect even the smallest changes in the magnetic field.
With its 3-axis measurement capability, the BMM150 can detect magnetic fields along the X, Y, and Z axes simultaneously. This ensures comprehensive and reliable data acquisition, enabling you to obtain a comprehensive view of the surrounding magnetic environment
It also supports both I2C and SPI interface communication. It uses the I2C interface by default, but you can easily switch to SPI communication by configuring the onboard resistor. This versatility offers flexibility and convenience in integrating the sensor into various projects and systems, allowing seamless communication with different microcontrollers and devices.
Features
- Onboard BMM150 for measuring the magnetic field in three perpendicular axes
- Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor
- Onboard voltage translator, compatible with 3.3V/5V level
- Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)
Specifications
| Communication Interface | I2C / SPI (I2C bus by default) |
| Power Supply | 3.3V~5V |
| Magnetic Measuring Range | 1300μt (X, Y axis), 2500μt (Z axis) |
| Resolution | 0.3μT |
| Operating Temperature | -40℃ ~ +85 ℃ |
| Dimensions | 29 x 20mm |
Resources
Pinout
| PIN | I2C | PIN | SPI |
| VCC | 3.3V/5V power supply | VCC | 3.3V/5V power supply |
| GND | Ground | GND | Ground |
| SDA | I2C data | SDO | SPI data, can be connected to host MISO |
| SCL | I2C clock | SDI | SPI data, can be connected to host MOSI |
| INT | interrupt output, can be connected to I/O | SCK | SPI clock input |
| CS | Chip selection, can be connected to I/O | ||
| DRY | Data sending/receiving ready state, can be connected to I/O |
Package Contents
- 1x BMM150 3-Axis Magnetometer Sensor
- 1x PH2.0 5PIN cable
Original: $6.80
-65%$6.80
$2.38
Description
The BMM150 is a high-performance 3-axis magnetometer sensor, designed to provide accurate and reliable magnetic field measurements for a wide range of applications. This compact and versatile sensor is part of Bosch Sensortec's sensor family, offering exceptional precision and sensitivity to detect even the smallest changes in the magnetic field.
With its 3-axis measurement capability, the BMM150 can detect magnetic fields along the X, Y, and Z axes simultaneously. This ensures comprehensive and reliable data acquisition, enabling you to obtain a comprehensive view of the surrounding magnetic environment
It also supports both I2C and SPI interface communication. It uses the I2C interface by default, but you can easily switch to SPI communication by configuring the onboard resistor. This versatility offers flexibility and convenience in integrating the sensor into various projects and systems, allowing seamless communication with different microcontrollers and devices.
Features
- Onboard BMM150 for measuring the magnetic field in three perpendicular axes
- Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor
- Onboard voltage translator, compatible with 3.3V/5V level
- Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)
Specifications
| Communication Interface | I2C / SPI (I2C bus by default) |
| Power Supply | 3.3V~5V |
| Magnetic Measuring Range | 1300μt (X, Y axis), 2500μt (Z axis) |
| Resolution | 0.3μT |
| Operating Temperature | -40℃ ~ +85 ℃ |
| Dimensions | 29 x 20mm |
Resources
Pinout
| PIN | I2C | PIN | SPI |
| VCC | 3.3V/5V power supply | VCC | 3.3V/5V power supply |
| GND | Ground | GND | Ground |
| SDA | I2C data | SDO | SPI data, can be connected to host MISO |
| SCL | I2C clock | SDI | SPI data, can be connected to host MOSI |
| INT | interrupt output, can be connected to I/O | SCK | SPI clock input |
| CS | Chip selection, can be connected to I/O | ||
| DRY | Data sending/receiving ready state, can be connected to I/O |
Package Contents
- 1x BMM150 3-Axis Magnetometer Sensor
- 1x PH2.0 5PIN cable
