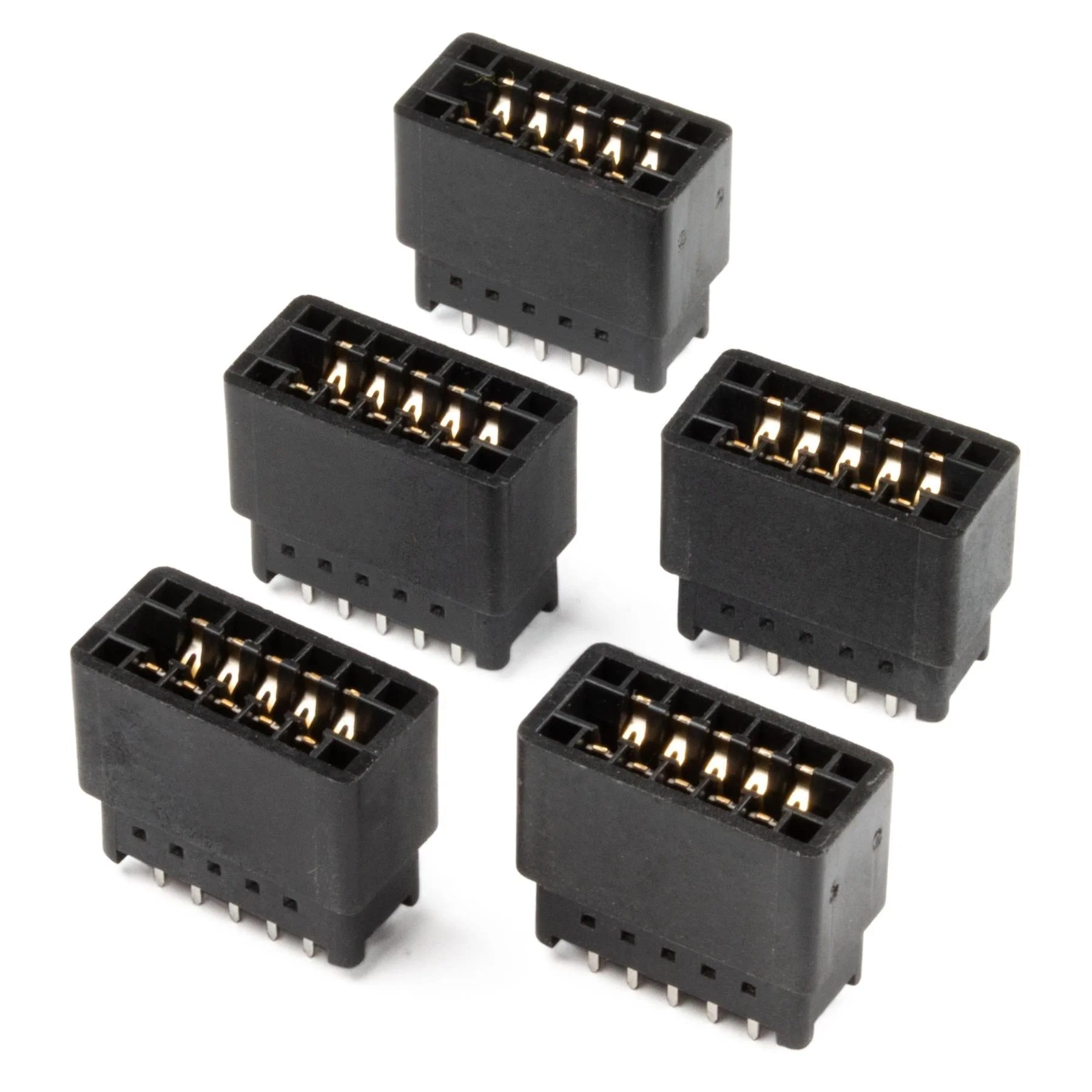

Breakout Garden I2C Connector (pack of 5)
Want to solder some Breakout Garden slots to your own circuit boards or stripboards? Now you can!
These are the raw card edge connectors that we use on our Breakout Garden boards. Just solder them onto your board of choice, wire them up to power, I2C and ground, then pop an I2C breakout into the socket.
These slots are ideal for adding Breakout Garden slots to your Trilobot or soldering directly to PCBs. If you'd rather attach a Breakout Garden socket to a breadboard or jumper wires, you might prefer I2C Breakout Extenders.
- Datasheet (with measurements)
- Eagle PCB landings
Check out our full range of Breakout Garden's and Breakout's here
Description
Want to solder some Breakout Garden slots to your own circuit boards or stripboards? Now you can!
These are the raw card edge connectors that we use on our Breakout Garden boards. Just solder them onto your board of choice, wire them up to power, I2C and ground, then pop an I2C breakout into the socket.
These slots are ideal for adding Breakout Garden slots to your Trilobot or soldering directly to PCBs. If you'd rather attach a Breakout Garden socket to a breadboard or jumper wires, you might prefer I2C Breakout Extenders.
- Datasheet (with measurements)
- Eagle PCB landings
Check out our full range of Breakout Garden's and Breakout's here
