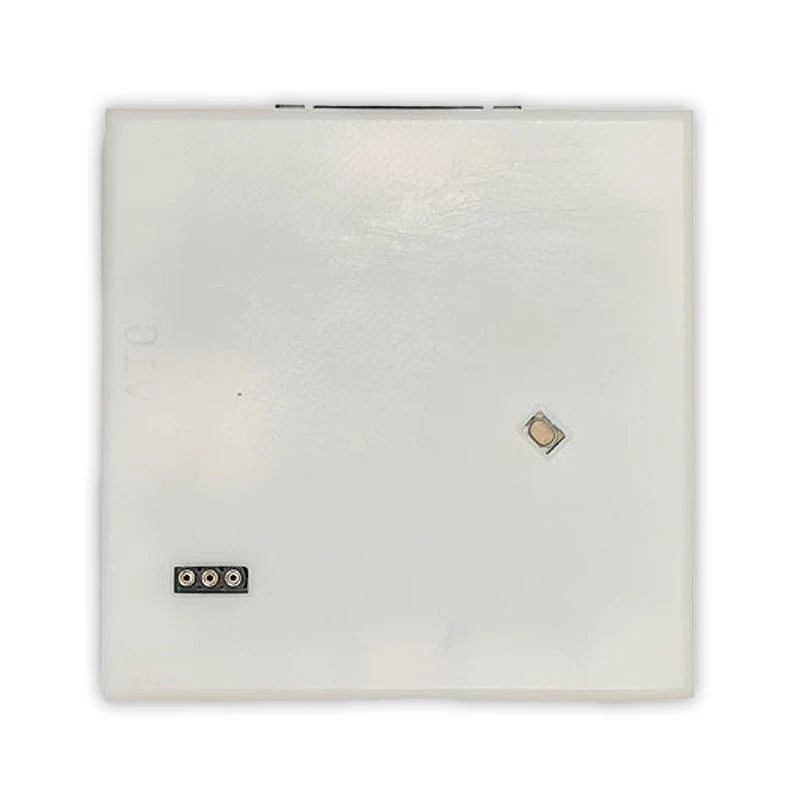

Bus Pirate 5 REV10 with Enclosure

Bus Pirate 5 is the universal serial interface tool designed by hackers, for hackers. It's crammed full of hardware and firmware features to make probing chips pleasant and easy.

Type simple commands in a terminal and talk to chips over 1-Wire, I2C, SPI, UART, and more. Figure out how a chip works before writing a line of code!

This is the latest "final" hardware revision with all bug fixes to date and an injection moulded enclosure. Check out the latest developments in the Bus Pirate forum.

Includes an assembled Bus Pirate 5 REV10 (the latest) with an enclosure and six button caps to customise your look!

Features

• Raspberry Pi RP2040 with 128Mbit program flash
• 1-5V programmable output power supply - 0-500mA current limit, current sense, resettable fuse and protection circuit
• 1Gbit NAND flash - Store settings and files. Appears as a USB drive.
• 18 RGB LEDs - It's customary to have an indicator LED, so to check that box we added 16 SK6812 RGB LEDs.
• LCD - A beautiful 240x320 pixel color IPS (all angle viewing) LCD acts as a pin label, while also showing the voltage on each pin and the current consumption of the programmable power supply unit
• 8 powerful IO pins - Support multiple protocols from 1.2-5volts. Analog voltage measurement and optional 10K pull-ups on all pins
• Onboard 10K pull-up resistors with enable

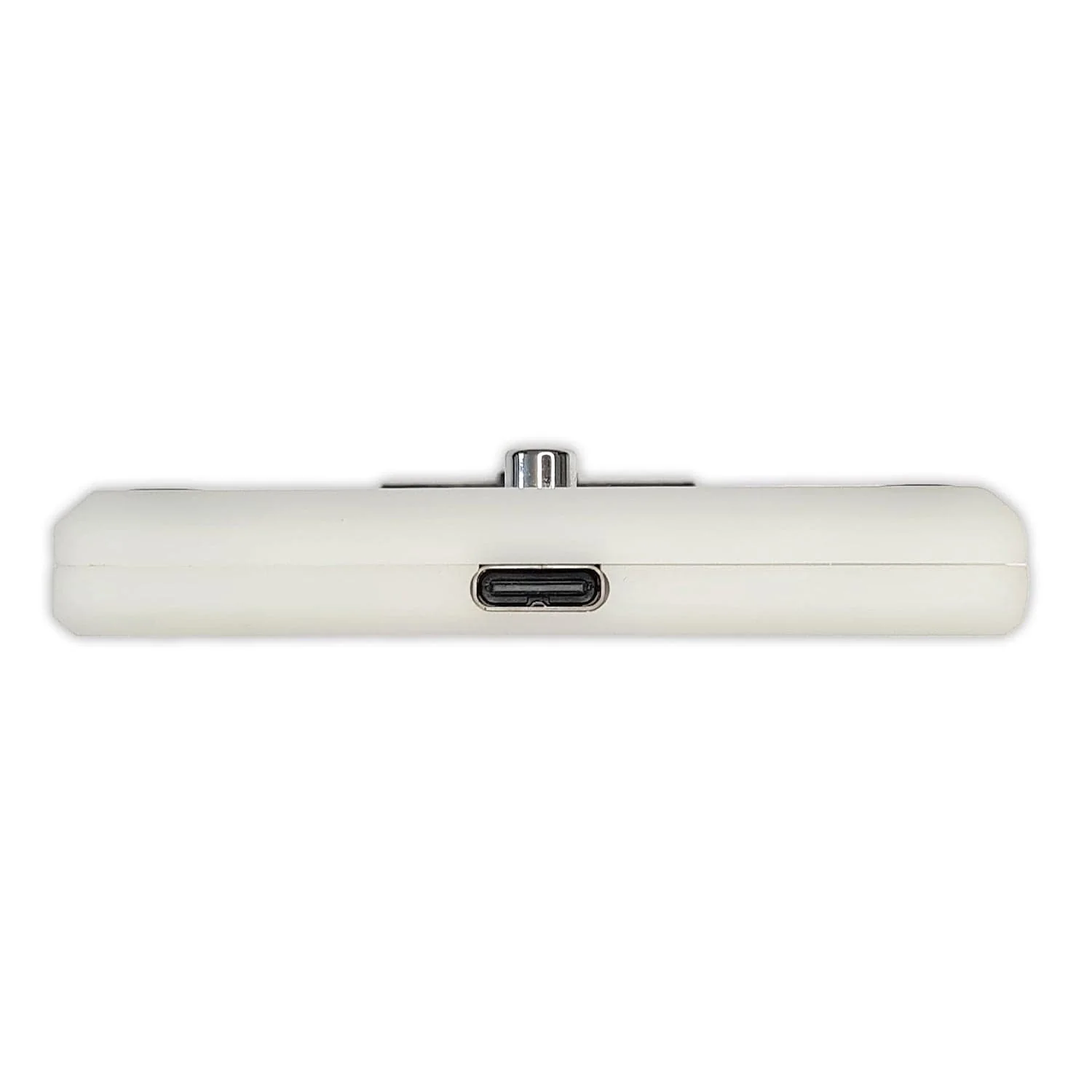

• Modern USB-C connector. Only RP2040-supported USB modes are available.
• IO pin names silkscreen on the main connector
• Injection moulded enclosure included
• 6 different button cap styles to customize your look: red, yellow, blue, carbon fibre, chrome and black
• Scratch and Sniff "Genuine" sticker quality assurance

Bus Pirate 5 Accessories

• USB-C cable
• Premium Probe Cable Set - with colour-coded, labelled probe leads and custom-milled breadboard pins
• Premium Auxiliary Cable Set - with colour-coded auxiliary, splitter, and jumper cables made of high-quality silicone-coated wire
• Auxiliary cable with color-coded crimp housings - an updated auxiliary cable (aux cable only) with dyed, colour-coded crimp housings
• Vertical KF141 quick connector adapter board with IO pin silkscreen
• Right-angle KF141 quick connector adapter board with IO pin silkscreen
• WSON8 SPI flash adapter
• SOP8 SPI flash adapter
• Mini/Micro/Nano SIM and Smart IC card adapter
• DIP8 SPI flash adapter

Resources

• Downloads
• Command reference
• Overview documentation
• Tutorial and basics
• Logic Analyser
• Software Support
• Device Demos
• Binary Modes
• Development
• Forum

Package Contents

• 1x Assembled Bus Pirate 5 with enclosure
• 6x button caps for customisation

USB cable not included
