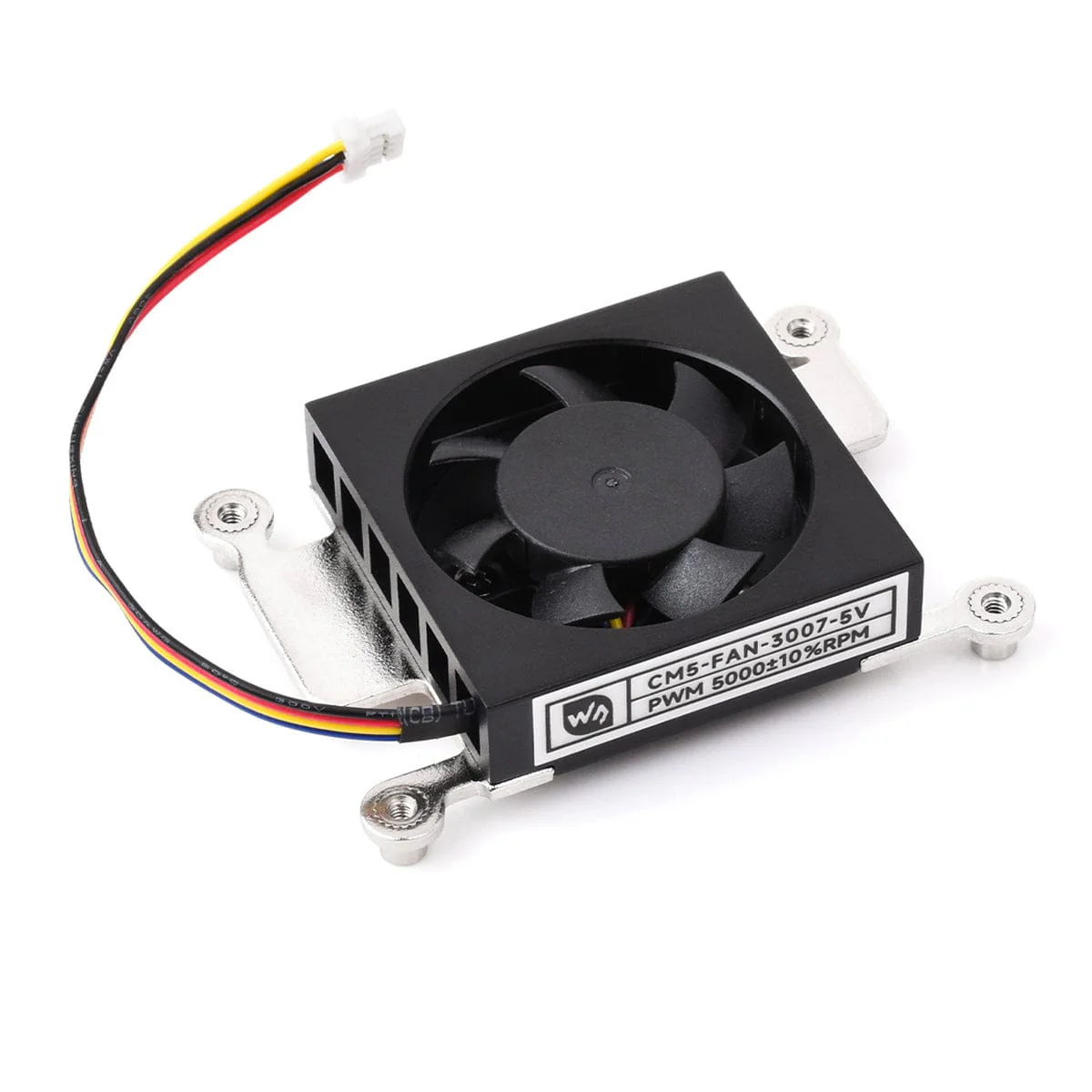

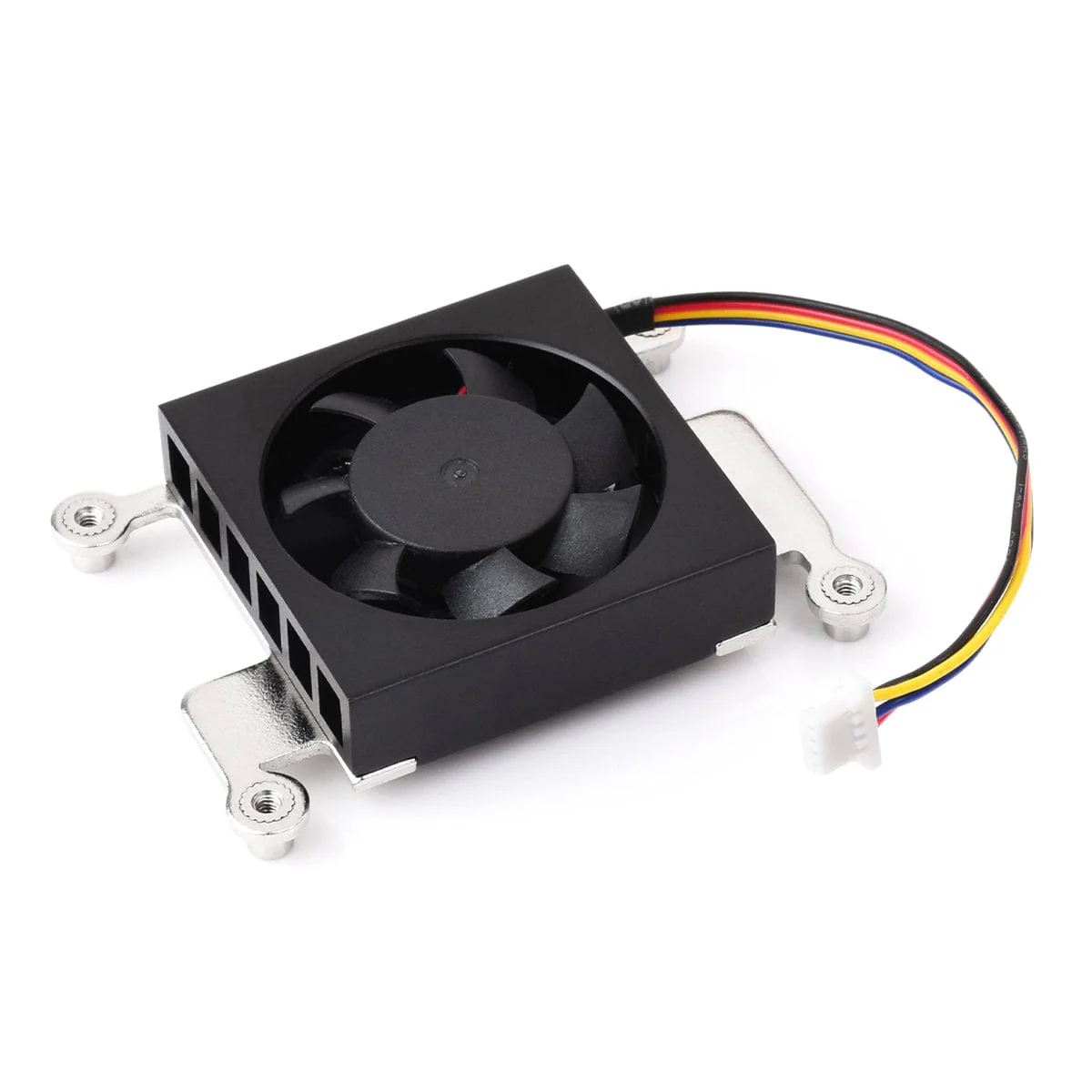

Cooling Fan for Raspberry Pi Compute Module 5

If your CM5 has been working hard and you need to cool it off, then look no further! This fan has been made exclusively for the Raspberry Pi Compute Module 5, doesn't make a lot of noise and comes with thermal tapes for efficient heat dissipation.

It is powered by a 5V supply and connects via a 4-wire PWM speed-adjustable fan header. It sits just nicely with the CM5's size and mounting holes and it doesn't obstruct the antenna section.

Raspberry Pi Compute Module 5 IO Board is NOT included

Specifications

Rated Power	1W (5V, 0.2±0.02A)
Rated Speed	5000±10% RPM
General	Low-profile, PWM speed adjustment
Interface	4-wire PWM speed-adjustable fan header
Cable Length	90 x 10mm

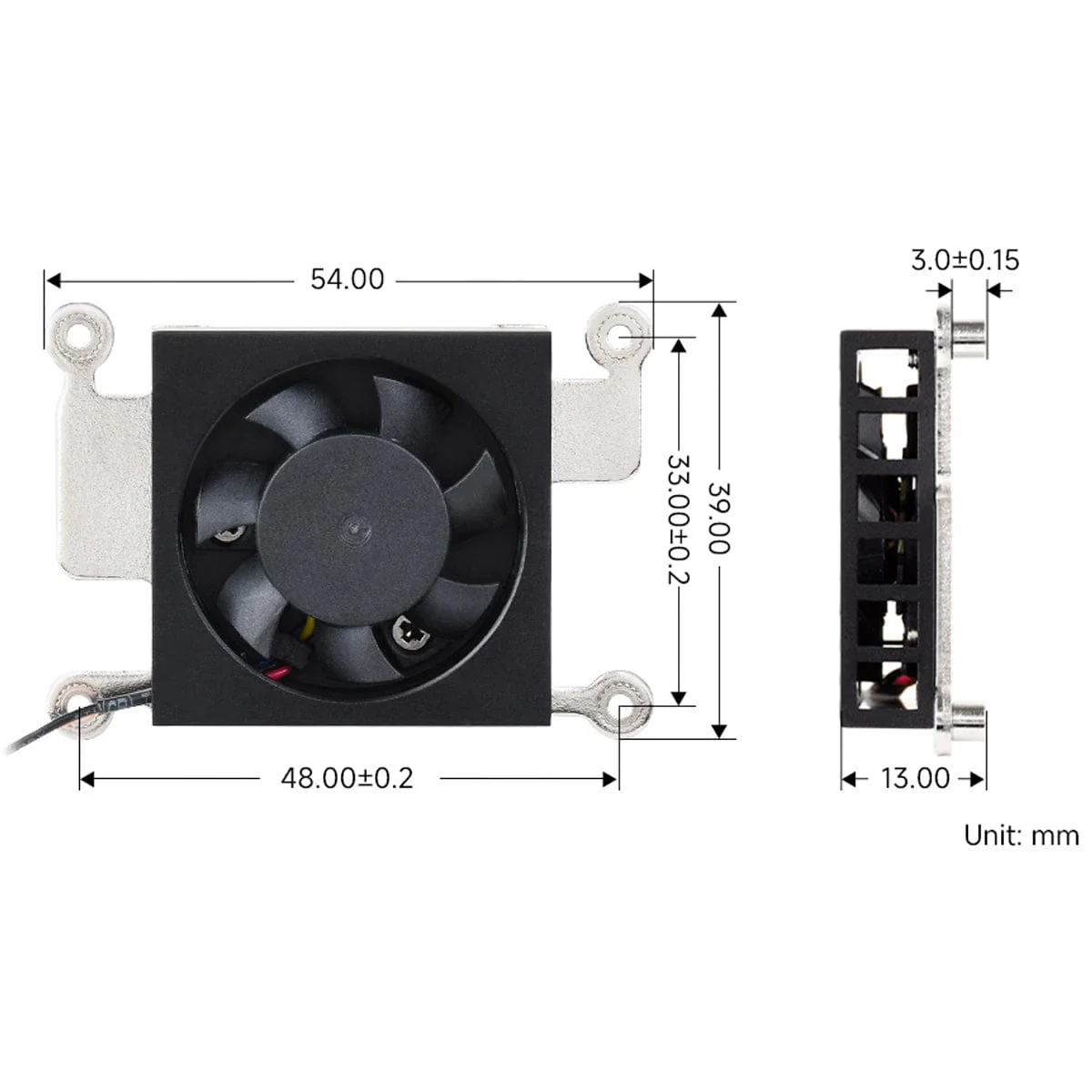

Dimensions	54 x 39 x 13mm

Connection Examples

Compute Module 5

Note: Compute Module 5 is NOT included

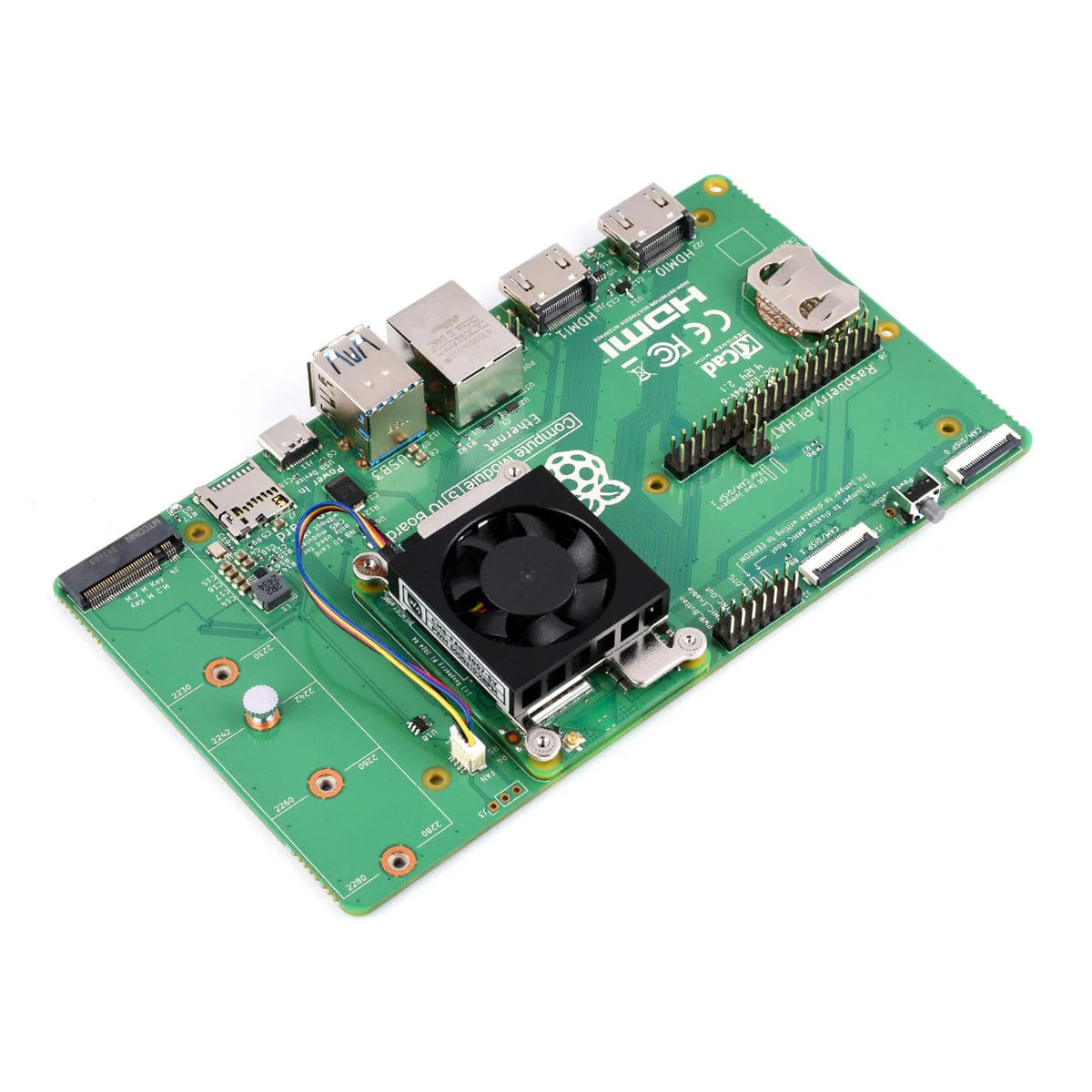

CM5 IO Board & Waveshare CM5 PoE Board

Note: IO board and PoE board are NOT included

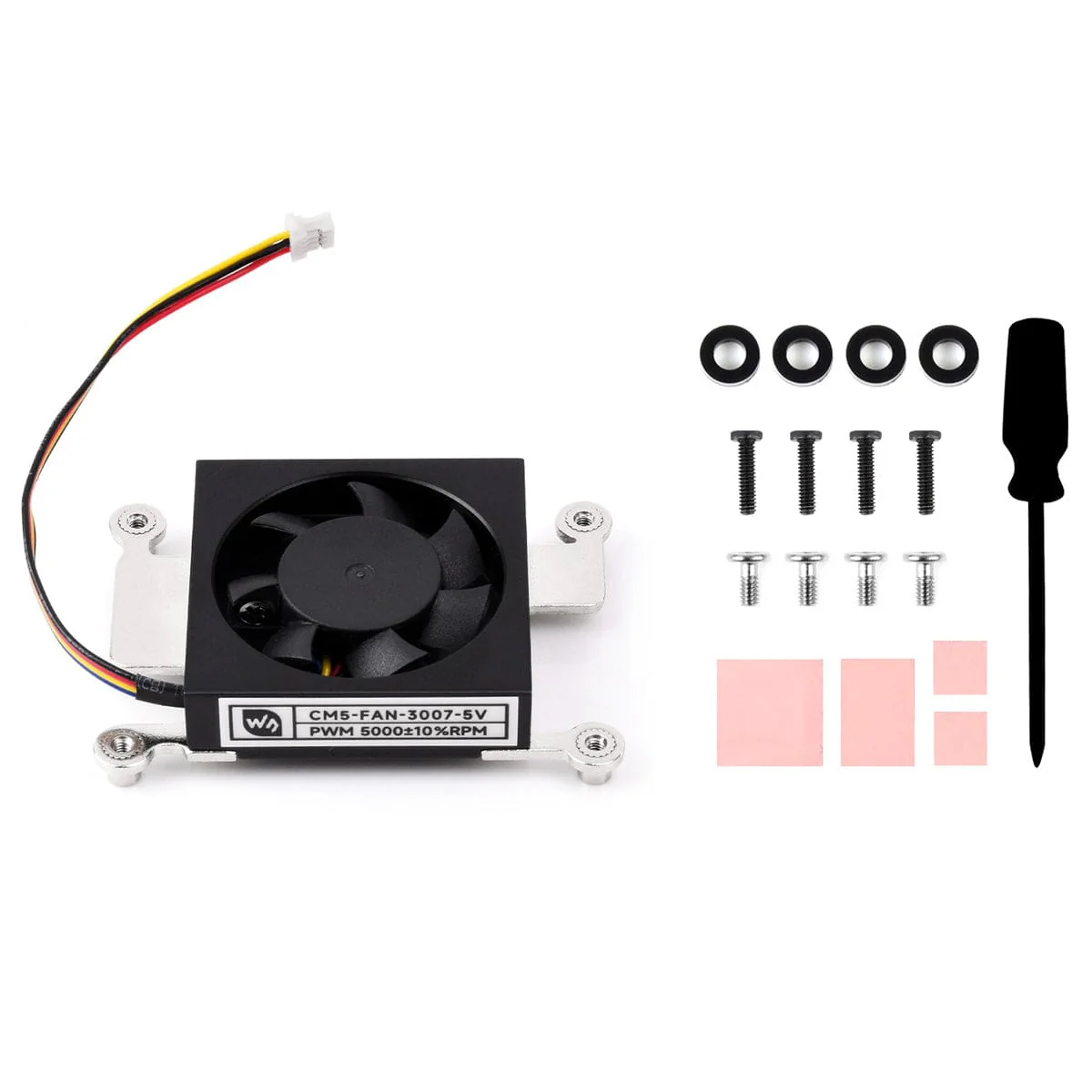

Package Contents

• 1x Fan for CM5
• 1x Screw Pack
• 1x Screw Driver
• 1x Thermal Tape Pack
