The DSS-M15 is a heavy-duty metal gear standard servo with 180°wide angle, high torque, improved stability and good durability.

Able to take in 6V and deliver a strong torque power of over 15Kg, this tough 180°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DSS-M15 servo demonstrates a maximum torque of 18Kg without much vibration or heat.

In addition, we enclose carefully selected steering parts, including an aluminium alloy wheel and a long bracket to enhance servo performance.

Specification

Operating voltage	4.8-7.2V
Test Environment	6 volts	7.2 volts
Operating speed (without payload)	0.18 sec/60°	0.16 sec/60°
Quiescent current	80 mA	100 mA
Stall Torque	13.5 kg*cm	15 kg*cm
Stall Current	1.8A	2A
Standby mode current	4 mA	5 mA
Control signal	RC PWM
Pulse width range	500-2500 us
Neutral position signal	1500 us
Clockwise rotation	<1500 us
Operating frequency	50 - 330Hz (Arduino compatible)
Materials of gear	Metal Gear
Limited angle	About 180°
Connector wire gauge	28 PVC
Wire length	About 320 mm
Horn gear spline	25T /5.80
Geared ratio	310:1
Dimension	54.5 X 20 x 47.5 mm

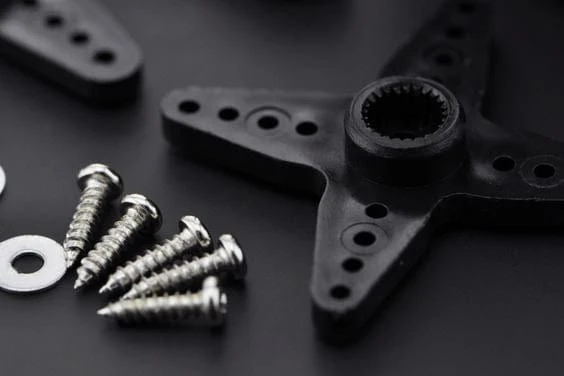

Package Contents

• DSS-M15 Servo x1
• Metal round servo horn x1
• X servo horn x1
• long straight servo horn x1
• Straight servo horn x1
• M2*8 self-tapping screw x5
• M2 screw washer x5
• M3*6 screw x1
