Direct Drive Servo Motor Driver Board for DDSM400
This DDSM Driver Board is a motor driver expansion board that lets you control up to six DDSM400 servo motors simultaneously, which is ideal for a variety of robotic projects (If you're looking for a board to control DDSM115, DDSM210 or DDSM315 motors, click here).
It connects to a Raspberry Pi through its integrated 5V buck regulator circuit and a GPIO 40-pin header connector.
The board is built around the ESP32-WROOM-32 module, with multiple wired and wireless communication methods. You can also send JSON commands for easy motor control. The motors can be used via the ESP32 UART or the Type-C USB port, making it easy to integrate with your system.
The board also comes with motor control demos and an SDK.
Features
- Suitable for DDSM400 hub motor, onboard 6-ch DDSM400 motor interfaces
- Based on ESP32-WROOM-32 module, supports multiple wired and wireless communication modes, supports JSON command interaction for easier control
- Provides DDSM400 hub motor control demo and SDK, easy-to-use
- Integrated WEB application for controlling and setting the DDSM400 hub motors, more convenient for debugging
- Control the hub motors directly via the Type-C port
- Connect to Raspberry Pi, powering the Pi via a 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management

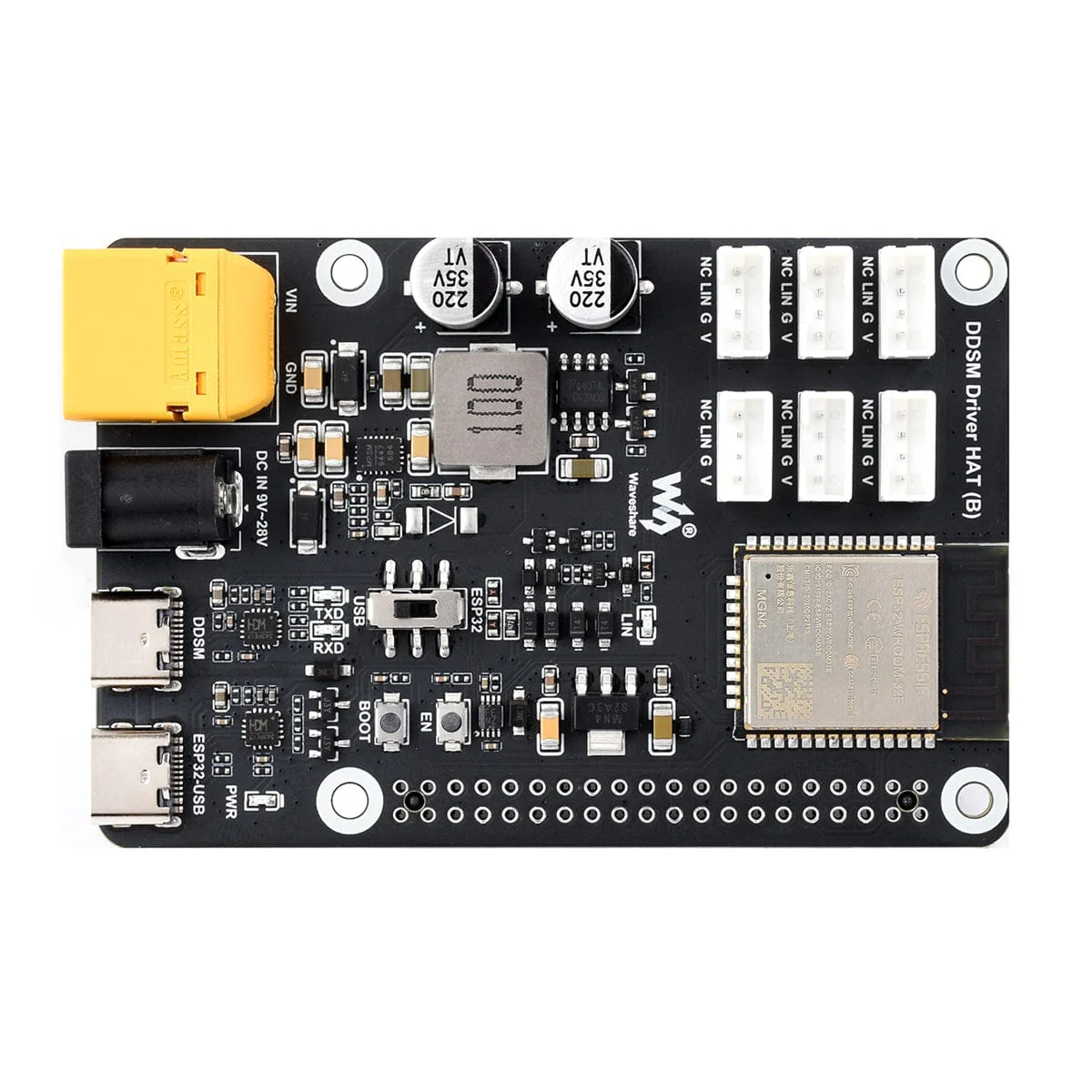

What's on Board
- ESP32 controller
- LIN single bus communication circuit
- UART control switch
- Reset button
-
BOOT button
for entering downloading mode manually - Raspberry Pi 40-pin header
- ESP32 Type-C port
- Hub motor Type-C port
- 5.5 x 2.5 DC power jack
- XT60 power supply connector
- LIN hub motor headers
Specifications
| Controller Module | ESP32 |
| Power Supply Port | XT60, 5.5 x 2.5mm DC power jack |
| Power Supply | 9V ~ 28V |
| Communication Interface | 2x Type-C, UART |
| Wireless Communication | 2.4G WiFi |
| Mounting Hole Diameter | 3 mm |
| Mounting Hole Spacing | 58 x 49 mm |
| PCB Size | 85 x 57 mm |
Resources
Pinout
Package Contents
- 1x DDSM Driver HAT (B)
- 1x 2 x 20-pin header
- 1x USB Type-A to Type-C cable
- 1x Screws pack
Original: $21.20
-65%$21.20
$7.42
Description
This DDSM Driver Board is a motor driver expansion board that lets you control up to six DDSM400 servo motors simultaneously, which is ideal for a variety of robotic projects (If you're looking for a board to control DDSM115, DDSM210 or DDSM315 motors, click here).
It connects to a Raspberry Pi through its integrated 5V buck regulator circuit and a GPIO 40-pin header connector.
The board is built around the ESP32-WROOM-32 module, with multiple wired and wireless communication methods. You can also send JSON commands for easy motor control. The motors can be used via the ESP32 UART or the Type-C USB port, making it easy to integrate with your system.
The board also comes with motor control demos and an SDK.
Features
- Suitable for DDSM400 hub motor, onboard 6-ch DDSM400 motor interfaces
- Based on ESP32-WROOM-32 module, supports multiple wired and wireless communication modes, supports JSON command interaction for easier control
- Provides DDSM400 hub motor control demo and SDK, easy-to-use
- Integrated WEB application for controlling and setting the DDSM400 hub motors, more convenient for debugging
- Control the hub motors directly via the Type-C port
- Connect to Raspberry Pi, powering the Pi via a 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management
What's on Board
- ESP32 controller
- LIN single bus communication circuit
- UART control switch
- Reset button
-
BOOT button
for entering downloading mode manually - Raspberry Pi 40-pin header
- ESP32 Type-C port
- Hub motor Type-C port
- 5.5 x 2.5 DC power jack
- XT60 power supply connector
- LIN hub motor headers
Specifications
| Controller Module | ESP32 |
| Power Supply Port | XT60, 5.5 x 2.5mm DC power jack |
| Power Supply | 9V ~ 28V |
| Communication Interface | 2x Type-C, UART |
| Wireless Communication | 2.4G WiFi |
| Mounting Hole Diameter | 3 mm |
| Mounting Hole Spacing | 58 x 49 mm |
| PCB Size | 85 x 57 mm |
Resources
Pinout
Package Contents
- 1x DDSM Driver HAT (B)
- 1x 2 x 20-pin header
- 1x USB Type-A to Type-C cable
- 1x Screws pack
