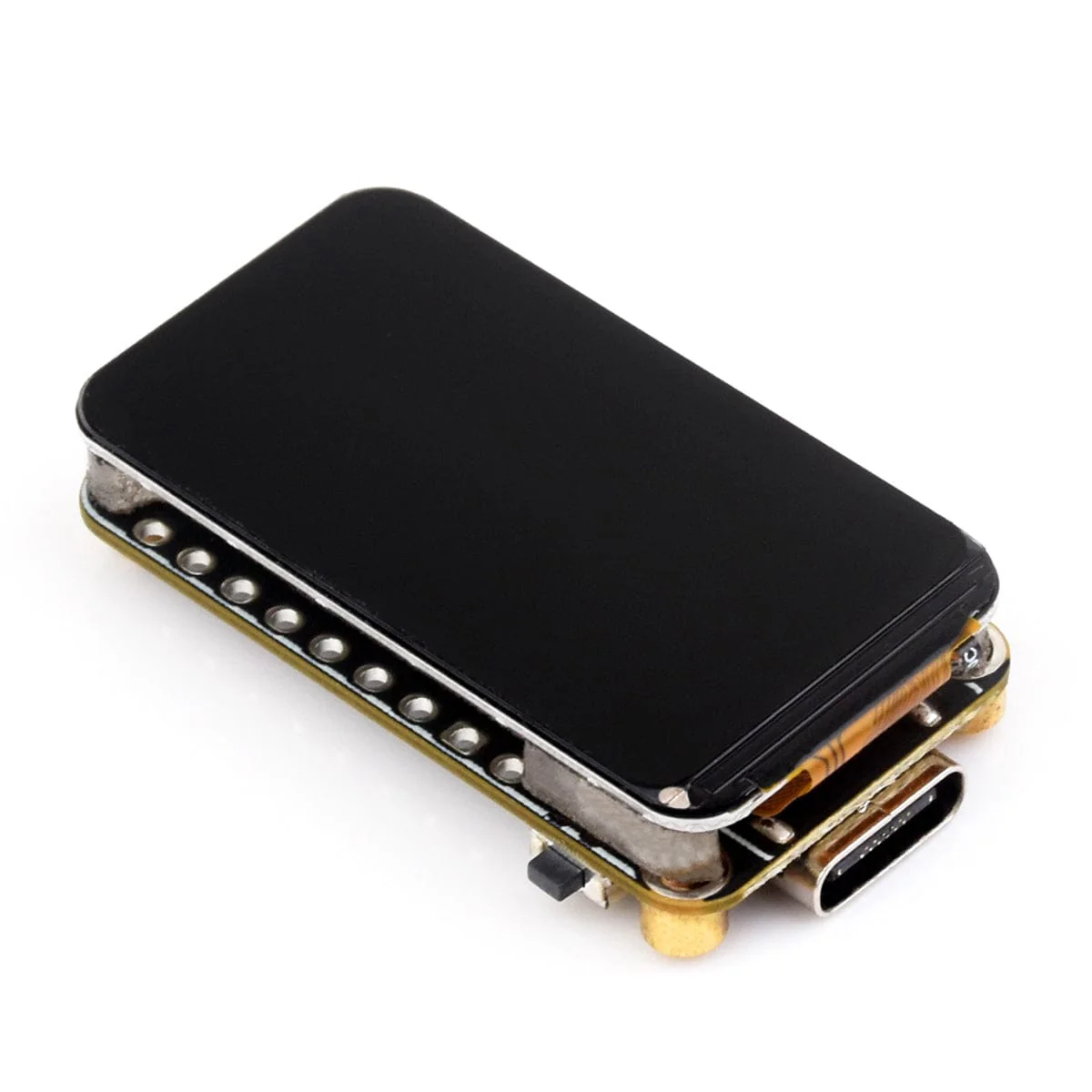

ESP32-C6 Development Board with 1.47" LCD Display (172 x 320)
This ESP32-C6 board from Waveshare supports 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 for wireless communication and includes 4MB of Flash memory. The 1.47" LCD screen, with a resolution of 172 x 320 and 262K colours, provides clear, colourful and vibrant visuals, making it ideal for running GUI programs like LVGL.
This board features a high-power 32-bit RISC-V processor with a clock speed of up to 160 MHz, with a low-power 32-bit RISC-V processor running at 20 MHz for energy-efficient tasks. It includes 320KB ROM, 512KB of high-performance SRAM, and 16KB of low-power SRAM.
There's a good number of GPIO pins available, and a USB-C port provides input for power/programming. The SD card slot provides an additional option for storage.
Available with or with loose (unsoldered) headers, or with headers pre-soldered. Select an option before adding to cart.
Features
- Equipped with a high-performance 32-bit RISC-V processor with a clock speed of up to 160 MHz and a low-power 32-bit RISC-V processor with a clock speed of up to 20MHz
- Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
- 1.47" LCD display, 172 x 320 resolution, 262K color
- Multiple IO interfaces
- USB-C port
- SD card slot for external storage
- Accurate control such as flexible clock and multiple power modes
- Built-in RGB LED with clear acrylic sandwich panel for a cool lighting effect
- Headers available loose in the bag (unsoldered) or pre-soldered to the board
What's on Board
- ESP32-C6FH4
-
ME6217C33M5G
Low dropout regulator, 800mA output (Max.) - SD Card Slot
- Ceramic Antenna
- BOOT Button
- RESET Button
Specifications
| Connector | USB Type-C |
| Master Chip | ESP32-C6 |
| Display Type | TFT |
| Display Control Chip | Display: ST7789 |
| Onboard Device | Micro SD |
Resources
Pinout
Package Contents
- 1x ESP32-C6 1.47" Display Development Board
- Headers loose (unsoldered) in the bag, or pre-soldered. Select an option before adding to cart.
