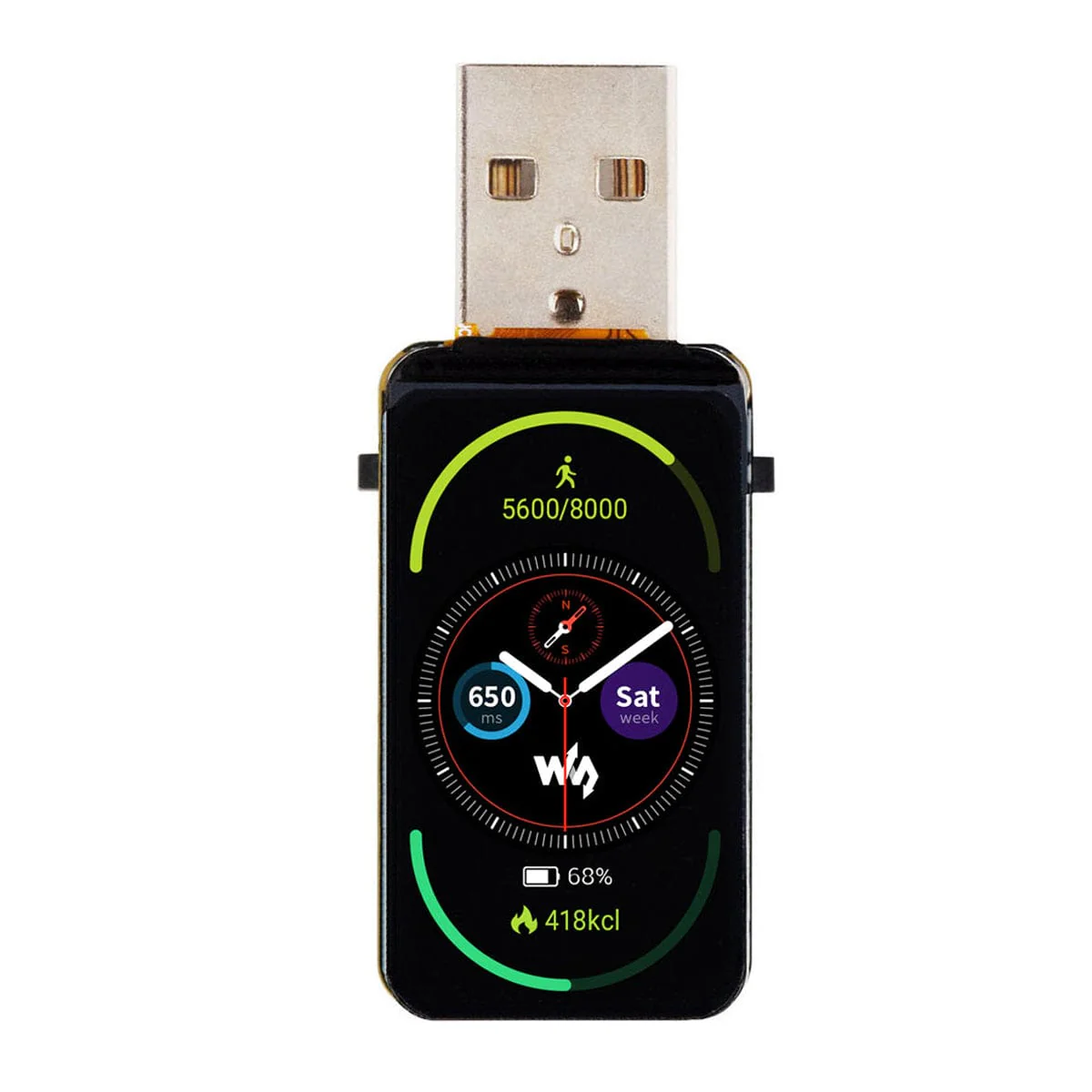

ESP32-S3 Development Board with 1.47" LCD Display (172x320)

This ESP32-S3 dev board has a really interesting format - it comes with a USB-A connector to plug straight into your PC for programming and also has a 1.47" LCD screen on the front with a 172 x 320 resolution and 262K colours.

It supports 2.4GHz Wi-Fi and Bluetooth 5, and comes with 16MB of Flash memory and 8MB of PSRAM. The ESP module offers an Xtensa 32-bit LX7 dual-core processor, running at up to 240MHz. It even has an SD card slot for additional storage.

Another cool feature is the RGB LED sandwiched between the PCB and LCD, allowing you to code some cool backlight/glow effects!

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
•  2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• 1.47" LCD display, 172 x 320 resolution, 262K color
• Multiple IO interfaces, full-speed USB port
• SD card slot for storage of pictures or files
• Accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
• Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects

What's on Board

1. ESP32-S3R8
   Dual-core processor, up to 240MHz operating frequency
2. 16MB Flash
3. SD Card Slot
4. ME6217C33M5G
   Low dropout regulator, 800mA output (Max.)
5. Onboard ceramic antenna
6. RESET button
7. BOOT button

Resources

• Product Wiki
• Schematic
• Datasheet

Pinout

Package Contents

• 1x ESP32-S3 1.47" Display Development Board
• 1x Black header
