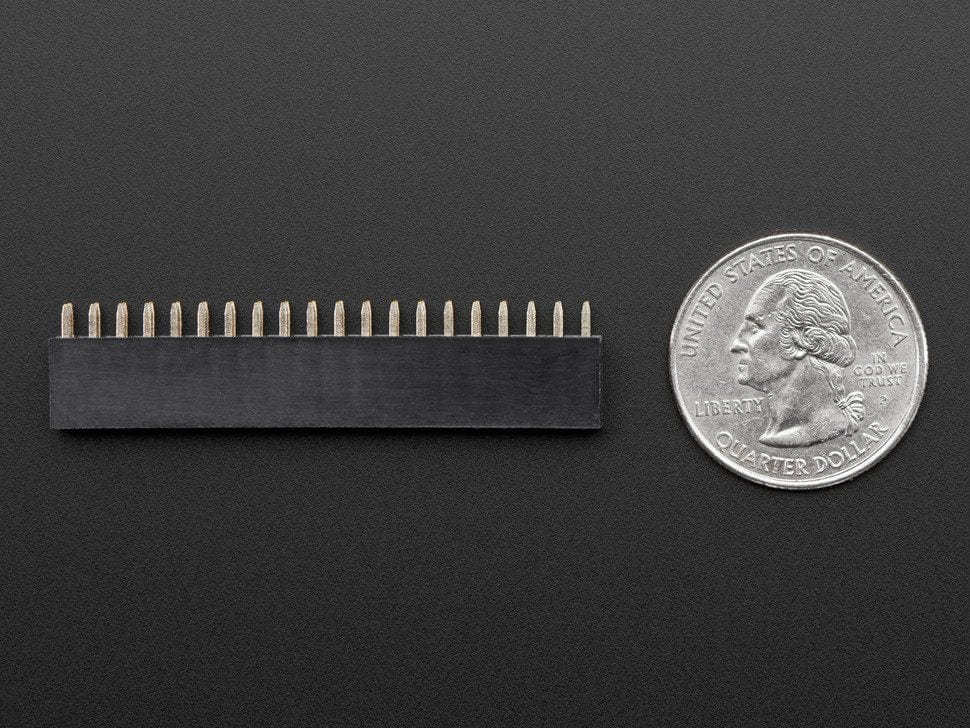

GPIO Header for Raspberry Pi (2x20 Female Header)
Connect your own PCB project to a Raspberry Pi with this handy female header!
Note: These short-pin headers are intended to be soldered to your own PCB/project. They're not ideal for rising HATs - we have a better option here for that with longer pins. We also have stacking headers available.
The female header part is about 8.5mm tall, good for smaller PCB projects that do not to clear the USB/Ethernet jacks.
With the short pins on this header you don't have to cut the ends off, so its ideal for basic Pi HAT design with a clean finish.
Features
- Dimensions: 5mm x 51mm x 12mm
- Pins: 3mm
- Pin Spacing: 2.5mm
- Pin Thickness: 0.6mm
- Weight: 3.56g
Original: $1.30
-65%$1.30
$0.45
Description
Connect your own PCB project to a Raspberry Pi with this handy female header!
Note: These short-pin headers are intended to be soldered to your own PCB/project. They're not ideal for rising HATs - we have a better option here for that with longer pins. We also have stacking headers available.
The female header part is about 8.5mm tall, good for smaller PCB projects that do not to clear the USB/Ethernet jacks.
With the short pins on this header you don't have to cut the ends off, so its ideal for basic Pi HAT design with a clean finish.
Features
- Dimensions: 5mm x 51mm x 12mm
- Pins: 3mm
- Pin Spacing: 2.5mm
- Pin Thickness: 0.6mm
- Weight: 3.56g
