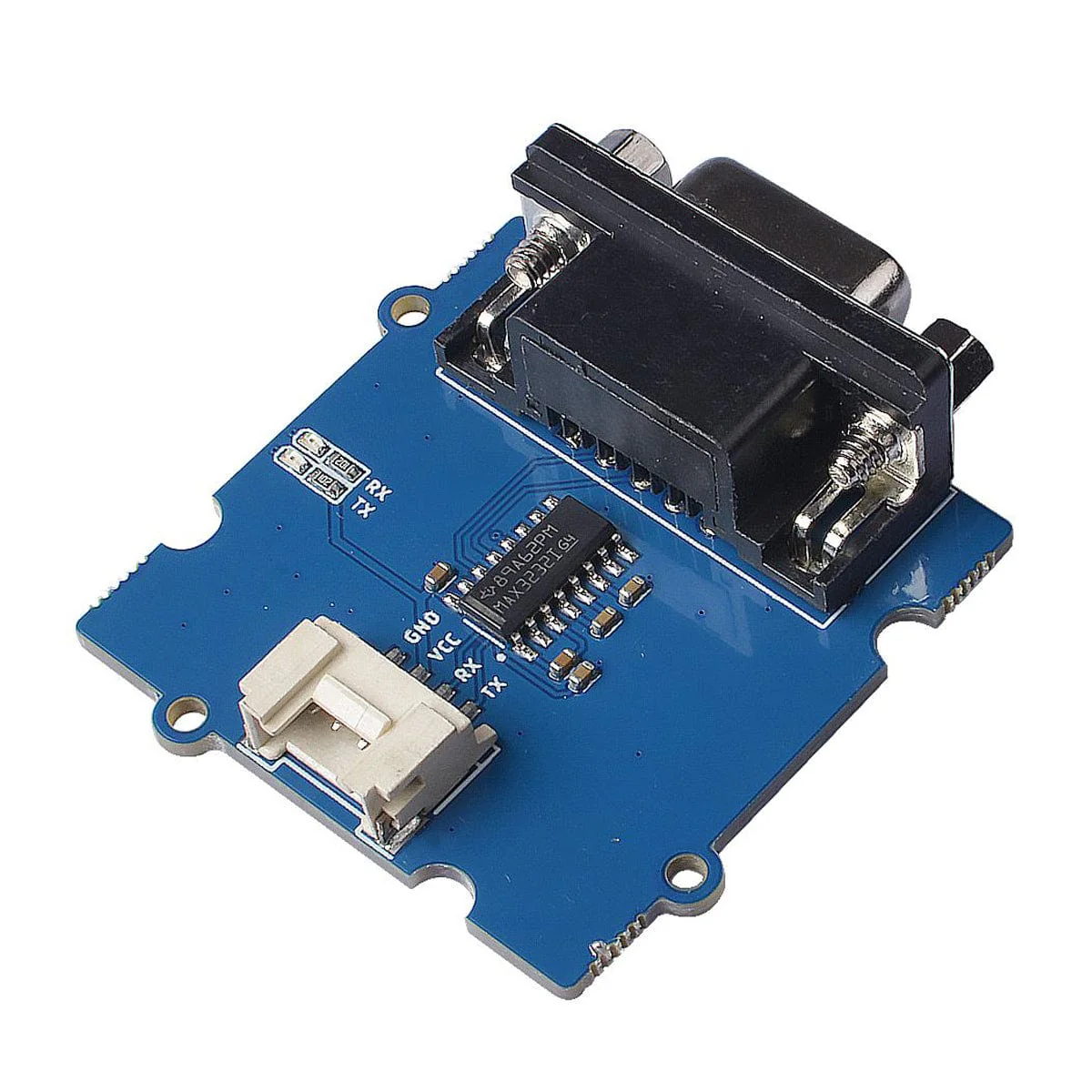

Grove - RS232 Board
The Grove - RS232 has been made to bridge communication between your microcontroller (MCU) and computer. Many MCUs use TTL levels, while most computer serial ports rely on RS232 levels, making this module ideal for easy integration. It provides easy and efficient serial communication between your devices, simplifying your project’s setup.
With the Grove interface, you can connect the RS232 to your Arduino or other development boards easily. Whether you're debugging, transmitting, or receiving data, this module gives you reliable communication. Compact, and incredibly useful for both beginners and professionals, the Grove - RS232 is a must-have tool for anyone working with serial communication.
Features
- Alternative High-Speed Terminal-Compatible Devices (1 Mbit/s)
- Meets or exceeds the requirements of TIA/EIA-232-F and ITU V.28 standards
- RS-232 Bus-Terminal ESD protection exceeds ±15 kV using the human-body model (HBM)
- Low supply current: 300 μA typical
- It has "Plug and Play" which is useful for various Grove projects
- Product Number: Seeed 103020192
Specifications
| Supply Voltage | 3.3V / 5V |
| Driver Input Voltage | 0V ~ 5.5V |
| Receiver Input Voltage | -25V ~ +25V |
| Supply Current (No load) | 0.3mA |
| Operating Free-air Temperature | -40°C ~ 85°C |
| Storage Temperature Range | -65°C ~ 150°C |
| Maximum Data Rate | 250 Kbit/s |
| Support Baud Rate | 300bps ~ 230400bps |
| Length | 46mm |
| Width | 42mm |
| Height | 16.5mm |
| Weight | 13.3g |
| Package Size | L: 140mm W: 90mm H: 15mm |
| Gross Weight | 20g |
Resources
Pinout
Package Contents
- 1x Grove - RS232
