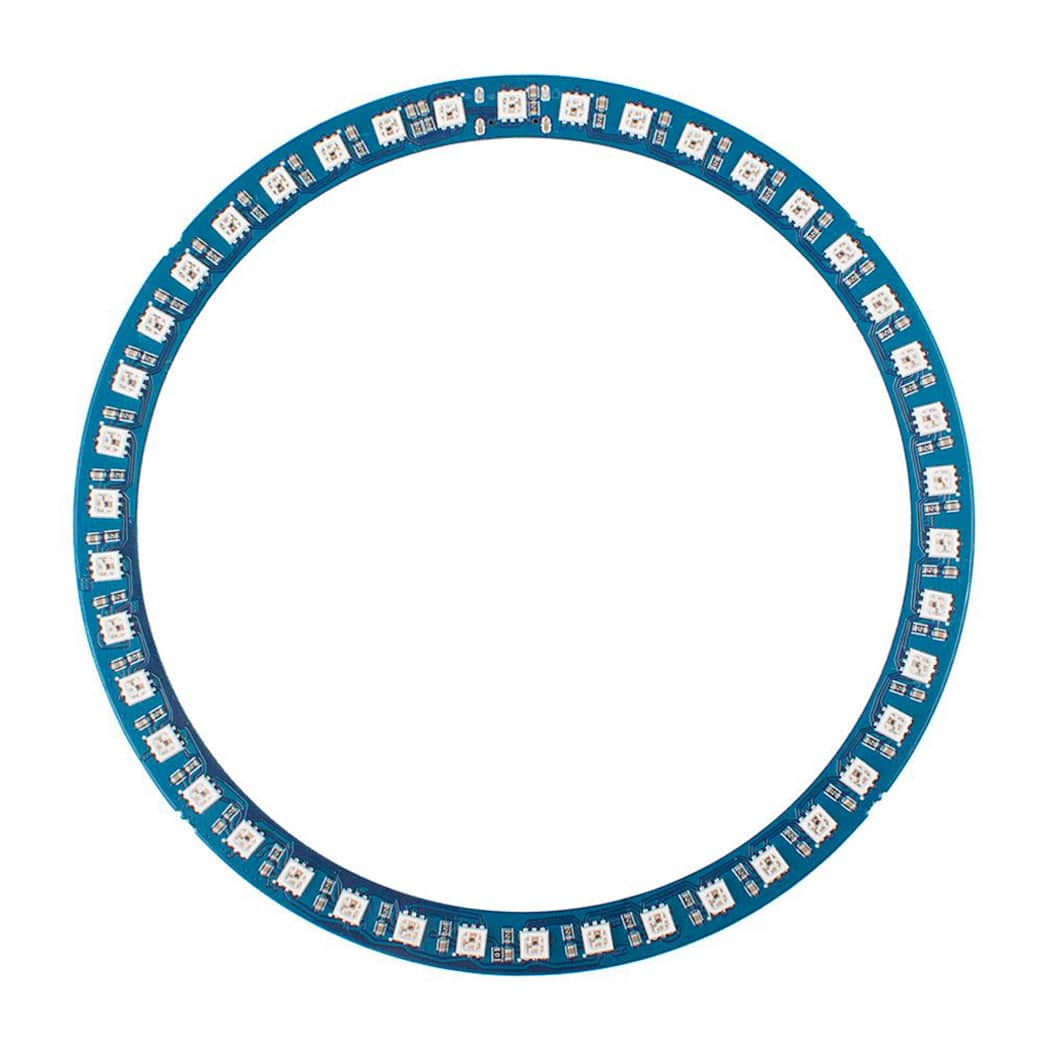

Grove - Ultimate RGB LED Ring (42 x WS2813 Mini)

This ultimate RGB LED Ring features 42 programmable WS2813 mini LEDs arranged in a 117 mm diameter ring, which is great for creating vibrant lighting effects. Each LED is addressable, providing detailed control over colours and patterns. The ring supports signal break-point continuous transmission, providing functionality even if some LEDs are damaged. It is chainable with other LED rings and supports 5V/3.3V power. The built-in Grove connector simplifies integration, making it perfect for various DIY and professional lighting projects.

You can find our Grove LED ring range here

Notes

1. The control data signal inputs are connected. So please do not input different signals at the same time.
2. The three power ports are isolated, and the Grove VCC can only supply up to 400mA, so please use VIN or USB-Type C when multiple LED rings are cascaded. We recommend you use a 5V/2A adapter for the USB-Type C port.

Features

• 256 gray levels, 256*256*256=16777216” full-colour display
• Built-in control circuit in a 3535 components
• Chainable, can be cascaded with multiple LED rings
• Support 5V/3.3V power in, support 5V/3.3V control data level.
• Dual-signal wires, signal break-point continuous transmission
• Product number: Seeed 104020173

Resources

• Product Wiki (Wiki for the 20 LED version, but the cone and connections are the same, just change PIXEL_COUNT to 42 and you're good to go!)

Pinout

Package Contents

• 1x Grove - Ultimate RGB LED Ring
