Hammond 112x62x31mm ABS Multi-Purpose Enclosure (1591BFLBK) [Discontinued]

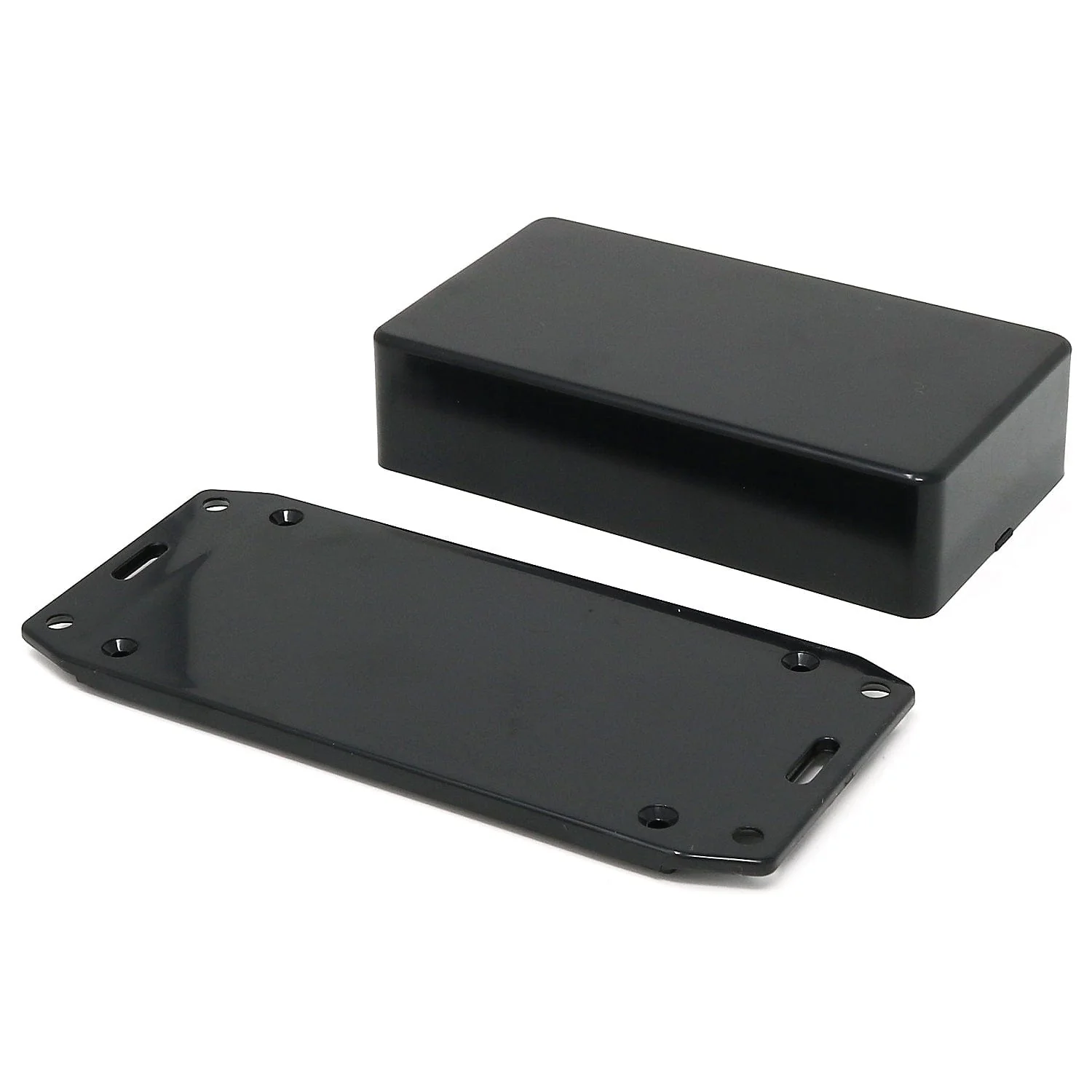

The Hammond range of ABS handheld enclosures are a firm favourite amongst makers as they're an easy starting point for a small, custom enclosure. This model is a Hammond 1591BFLBK 112mm x 62mm x 31mm enclosure.
It's great for general usage, and also includes moulded card guides for mounting custom PCBs. The plastic is easily machined allowing you to create your own custom enclosure for your project.
Fits BCRobotics 1591B boards perfectly!
We've specifically stocked this version to go with our range of BCRobotics 1591B boards, which have mounting holes which match this enclosures lid mounting points perfectly:
- 1591B Proto Board for Raspberry Pi Pico
- 1591B Relay Board for Raspberry Pi Pico
- 1591B Weather Board for Raspberry Pi Pico
- 1591B Proto Board
Features
- Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded-in card guides)
- Integral card guides accept 1.5 mm (0.062”) P.C. cards
- Lap joint construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Moulded from easy-to-machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
- Lid is secured with M3 x 10 mm Phillips machine screws (included), threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
- Includes 4x black screws
Resources
Description
The Hammond range of ABS handheld enclosures are a firm favourite amongst makers as they're an easy starting point for a small, custom enclosure. This model is a Hammond 1591BFLBK 112mm x 62mm x 31mm enclosure.
It's great for general usage, and also includes moulded card guides for mounting custom PCBs. The plastic is easily machined allowing you to create your own custom enclosure for your project.
Fits BCRobotics 1591B boards perfectly!
We've specifically stocked this version to go with our range of BCRobotics 1591B boards, which have mounting holes which match this enclosures lid mounting points perfectly:
- 1591B Proto Board for Raspberry Pi Pico
- 1591B Relay Board for Raspberry Pi Pico
- 1591B Weather Board for Raspberry Pi Pico
- 1591B Proto Board
Features
- Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded-in card guides)
- Integral card guides accept 1.5 mm (0.062”) P.C. cards
- Lap joint construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Moulded from easy-to-machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
- Lid is secured with M3 x 10 mm Phillips machine screws (included), threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
- Includes 4x black screws
