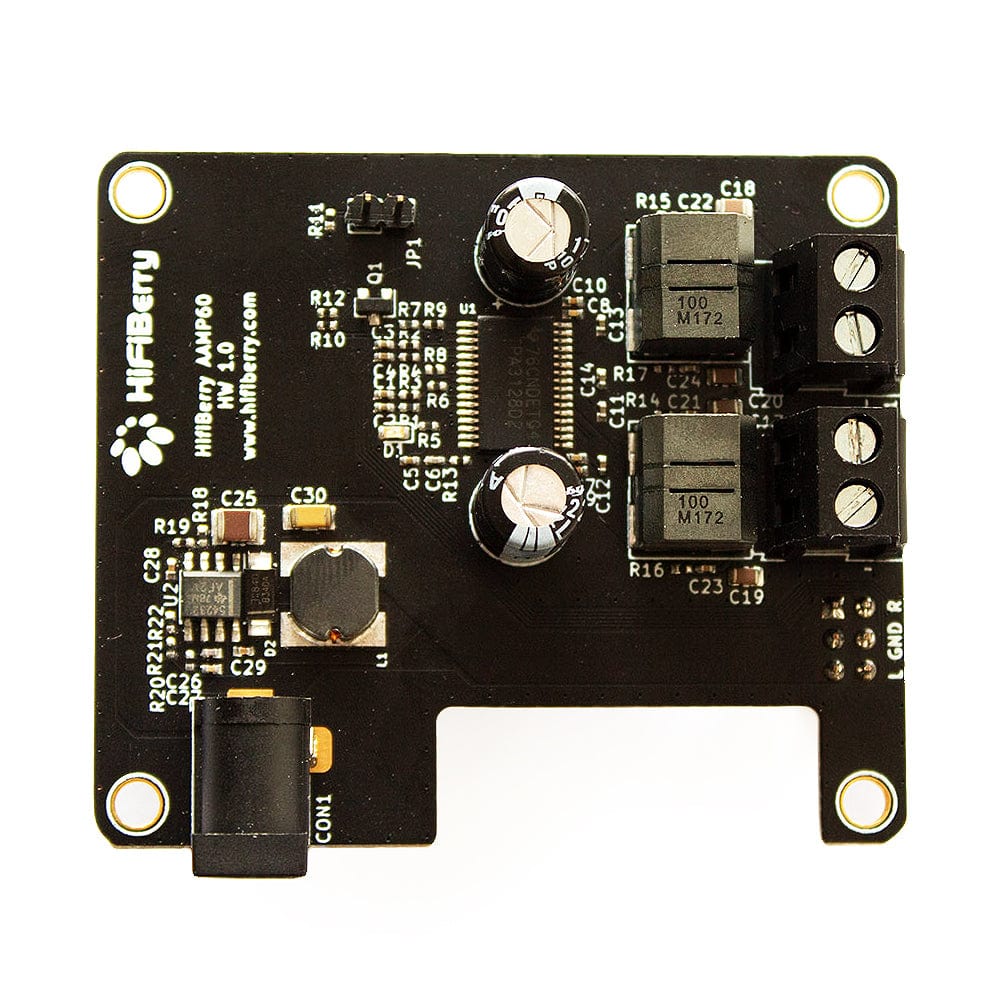

HiFiBerry AAmp60

The HiFiBerry AAmp60 is an analogue power amplifier add-on for compatible HiFiBerry DAC sound cards for Raspberry Pi.

The AAmp is an analogue amplifier add-on to some HiFiBerry boards. It fits onto your HiFiBerry DAC board (specific models - see below) and adds 60W of analogue amplifier power! It cannot be used standalone without a HiFiBerry DAC.

Using a 12-20V power supply, it will not only power the amplifier, but also the DAC and Raspberry Pi.

Compatibility

You can use it with the following HiFiBerry boards that come with the necessary analogue output connector:

• DAC2 HD
• DAC2 Pro
• DAC+ ADC
• DAC+ ADC Pro

Features

• Up to 2x30W output power output
• Uses a single external power supply 12-24V to power the amplifier, DAC board and the Raspberry Pi
• No soldering, comes as a pre-fabricated kit, just plug it onto the Raspberry Pi
• Comes with all components required to mount it

Specifications

Recommended Operating Voltage	12–20V
Absolute Maximum Operating Voltage	24V
Maximum Output Power	60W
THD+N	<0.02% (typical, output power 0.1–10W)
SNR	104dB (typical)
Frequency Response	20–20000Hz (output filter characteristics depend on speaker parameters)
Typical Output Power per Channel	14W (12V, 4Ω, THD+N <0.1%) 18W (18V, 4Ω, THD+N <0.1%) 20W (24V, 4Ω, THD+N <0.1%) 8W (12V, 8Ω, THD+N <0.1%) 17W (18V, 8Ω, THD+N <0.1%) 28W (24V, 8Ω, THD+N <0.1%)
Maximum Output Power per Channel	15W (12V, 4Ω, THD+N <10%) 30W (18V, 4Ω, THD+N <10%) 44W (24V, 4Ω, THD+N <10%) 10W (12V, 8Ω, THD+N <10%) 20W (18V, 8Ω, THD+N <10%) 38W (24V, 8Ω, THD+N <10%)

Resources

• Datasheet

Package Contents

• 1x HiFiBerry AAmp60
