M5Stack 1.27 Header BUS Socket SMD for M5StampS3 (10 sets)

Introducing the 1.27 Socket Kit for StampS3 - the perfect solution for enhancing your M5StampS3 experience! This high-quality header features a pitch of 1.27mm, specifically designed to seamlessly integrate with the M5StampS3 development board.

With the 1.27 Socket Kit, users gain the flexibility to incorporate it into their own PCB designs, allowing them to tailor their embedded projects to their unique requirements. Whether you're a hobbyist, maker, or professional, this kit empowers you to expand the functionalities of your M5StampS3 and unlock endless possibilities.

Crafted with precision and durability in mind, this socket kit ensures a secure and reliable connection, providing a hassle-free experience during installation and usage. Its compact size and user-friendly design make it a breeze to integrate into your existing projects or prototypes.

Features

• SMD Header: 17-Pin and 11-Pin
• 1.27mm pitch

Specifications

Resources	Parameters
Operate Temp	-40°C TO 105°C
Processing Temp	230°C (30-60s)/ 260°C (10s）
SMD Header	17-Pin and 11-Pin
Height of Header	4.6mm
Pitch	1.27mm
Single net weight	0.4g (17P)/0.1g (11P)
Product Size	22 x 4.6 x 3.5mm (For 17P), 14 x 4.6 x 3.5mm (For 11P)
Package Size	136mm x 92mm x 13mm
Product Weight	6.7g
Package Weight	8.7g

Resources

• Product Wiki

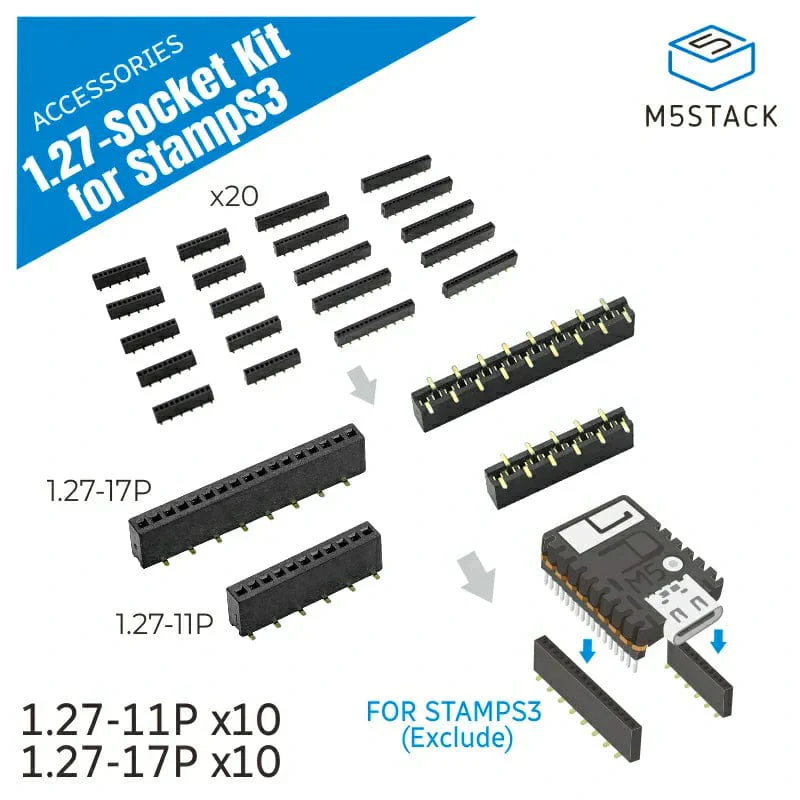

Package Contents

• 10 x SMD Header (1.27mm-17-Pin)
• 10 x SMD Header (1.27mm-11-Pin)
