M5Stack Core ESP32 IoT Development Kit - Fire (PSRAM) V2.0 [Discontinued]
A high spec starter kit for the modular, stackable, and portable M5Stack IoT development board series, with upgraded hardware and inbuilt motion sensors.
Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.
The top of the range Fire kit includes a built-in 9-Axis IMU motion sensor (6-Axis posture acceleration measurement + 3-Axis magnetic measurement) as well as more hardware resources (16MB flash + 4M PSRAM), upgraded base modules (M5GO Base and M5GO CHG Base) and a chunky 500 mAh battery, as well as some building brick compatible connectors!
For more information and for help getting started, click here
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Product Features
- ESP32-based
- Speaker, 3 buttons, LCD screen (320*240)
- TF card slot (16G Maximum size)
- Battery Socket & Lipo Battery
- Extendable Pins & Holes
- M-Bus Socket & Pins
- Development Platform UIFlow, MicroPython, Arduino

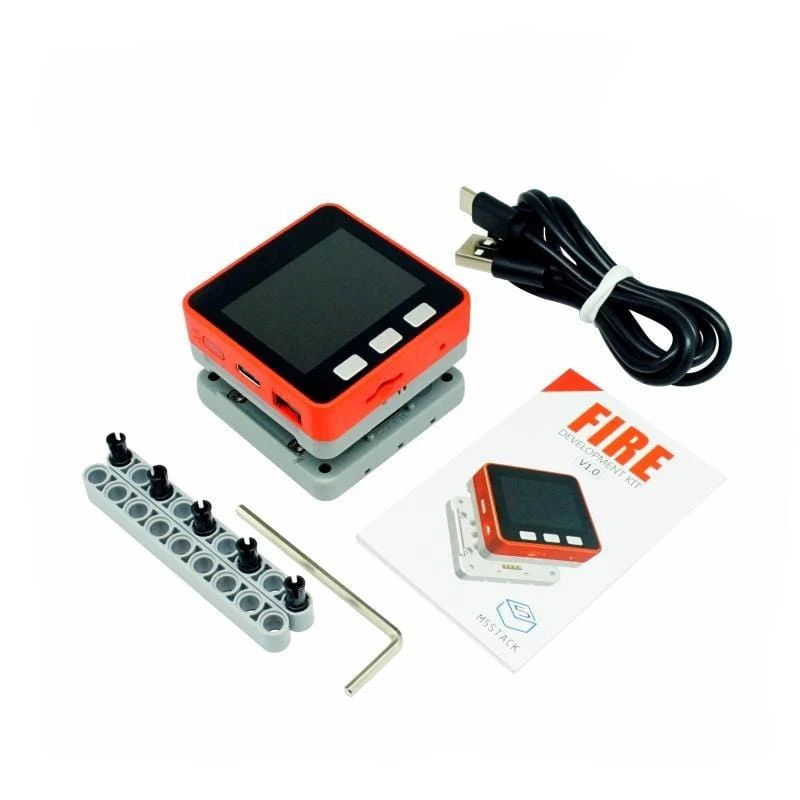

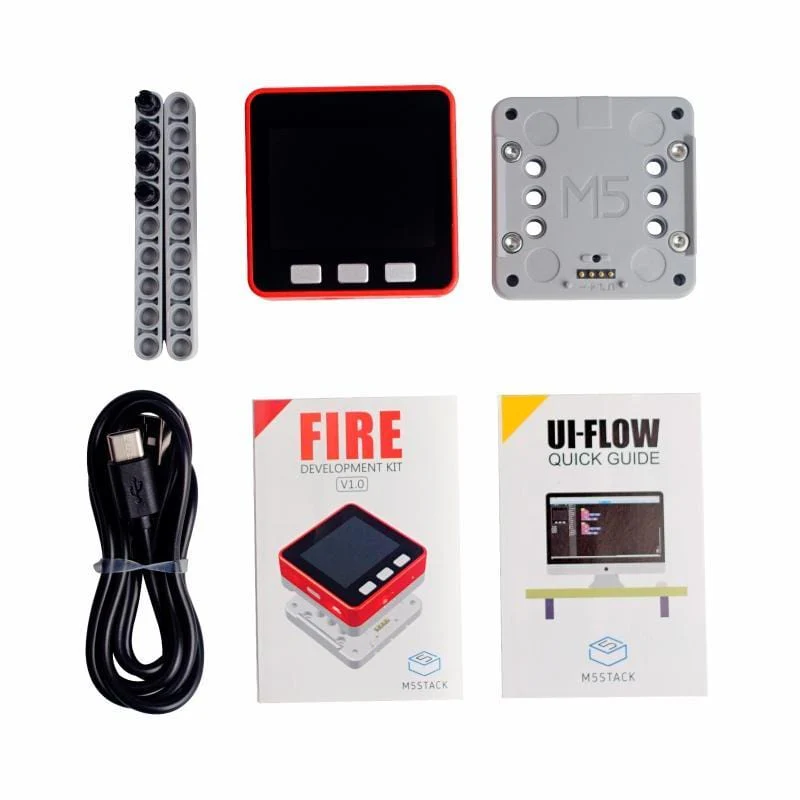

Includes
- 1x FIRE
- 1x M5GO CHG Base
- 2x Building brick-compatible blocks
- 5x Building brick-compatible connectors
- 1x M3 hex wrench
- 1x Type-C USB cable (100cm)
- 1x User Manual
Applications
- Internet of things terminal controller
- Stem education product
- DIY creation

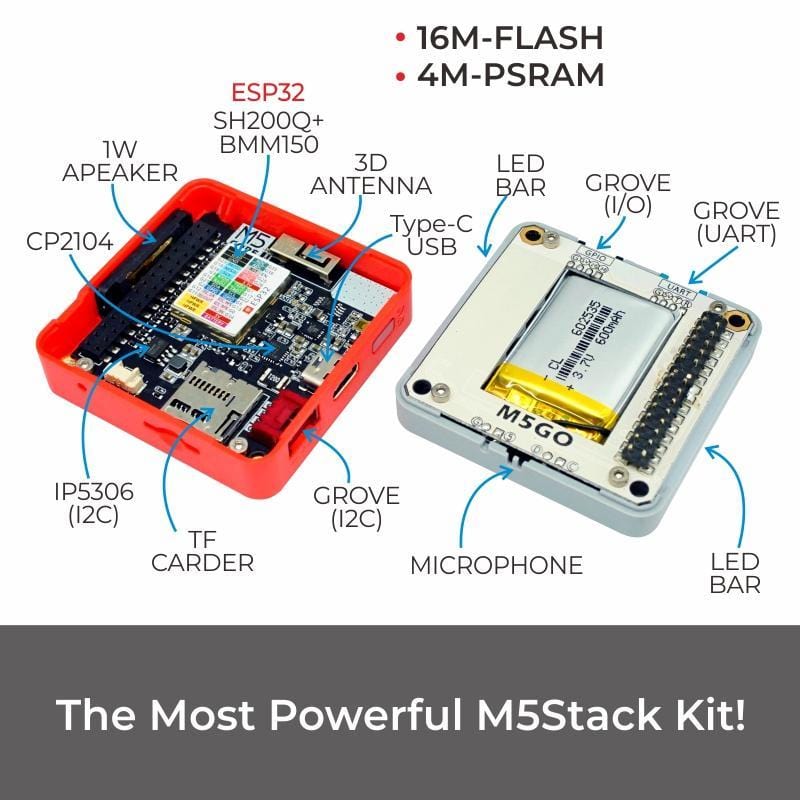

Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory | 16MB |
| PSRAM | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C |
| Speaker | 1W-0928 |
| Button | Custom button x 3 |
| MEMS | BMM150 + MPU6886 |
| Battery | 500 mAh @ 3.7V |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Size | 54.2 x 54.2 x 30.5mm |
| Weight | 62.3g |
| Case Material | Plastic ( PC ) |
Original: $48.90
-65%$48.90
$17.11
Description
A high spec starter kit for the modular, stackable, and portable M5Stack IoT development board series, with upgraded hardware and inbuilt motion sensors.
Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.
The top of the range Fire kit includes a built-in 9-Axis IMU motion sensor (6-Axis posture acceleration measurement + 3-Axis magnetic measurement) as well as more hardware resources (16MB flash + 4M PSRAM), upgraded base modules (M5GO Base and M5GO CHG Base) and a chunky 500 mAh battery, as well as some building brick compatible connectors!
For more information and for help getting started, click here
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Product Features
- ESP32-based
- Speaker, 3 buttons, LCD screen (320*240)
- TF card slot (16G Maximum size)
- Battery Socket & Lipo Battery
- Extendable Pins & Holes
- M-Bus Socket & Pins
- Development Platform UIFlow, MicroPython, Arduino
Includes
- 1x FIRE
- 1x M5GO CHG Base
- 2x Building brick-compatible blocks
- 5x Building brick-compatible connectors
- 1x M3 hex wrench
- 1x Type-C USB cable (100cm)
- 1x User Manual
Applications
- Internet of things terminal controller
- Stem education product
- DIY creation
Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory | 16MB |
| PSRAM | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C |
| Speaker | 1W-0928 |
| Button | Custom button x 3 |
| MEMS | BMM150 + MPU6886 |
| Battery | 500 mAh @ 3.7V |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Size | 54.2 x 54.2 x 30.5mm |
| Weight | 62.3g |
| Case Material | Plastic ( PC ) |
