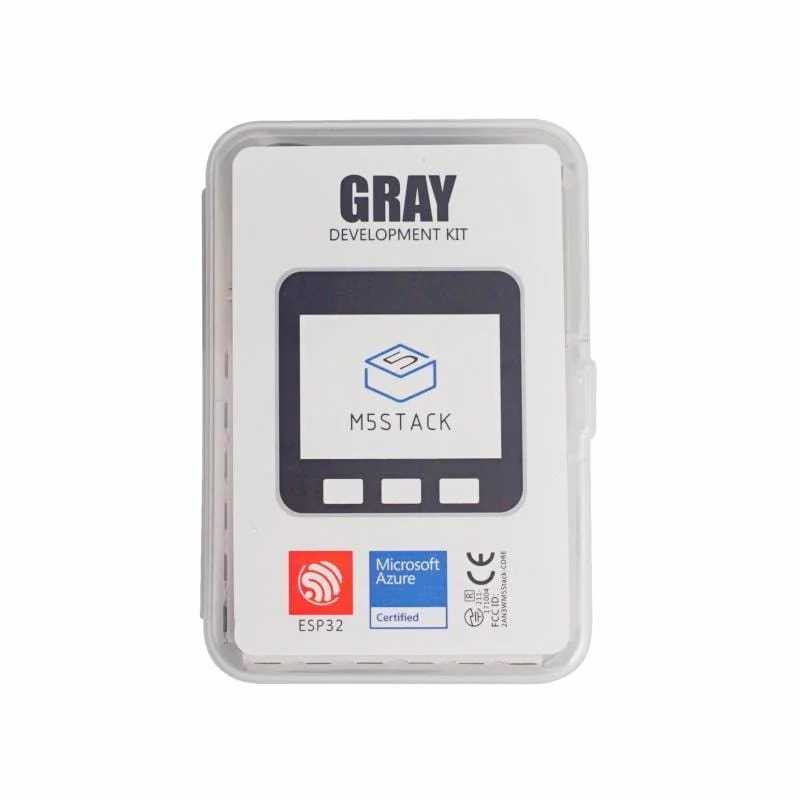

M5Stack Core ESP32 IoT Development Kit - Grey (9Axis Sensor) [discontinued]
A starter kit for the modular, stackable, and portable M5Stack IoT development board series, with a range of inbuilt motion sensors.
Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.
The Grey kit includes a built-in 9-Axis IMU sensor (6-Axis posture acceleration measurement and 3-Axis magnetic measurement), which lets you detect acceleration, angle, and trajectory - ideal for collecting sports data or a 3D remote gesture controller.
For more information and for help getting started, click here
Product Features
- ESP32-based
- Built-in Speaker, Buttons, LCD
- TF card slot (Up to 16GB support)
- Battery Socket & Lipo Battery
- Extendable Pins & Holes
- M-Bus Socket & Pins
- Development Platform UIFlow, MicroPython, Arduino

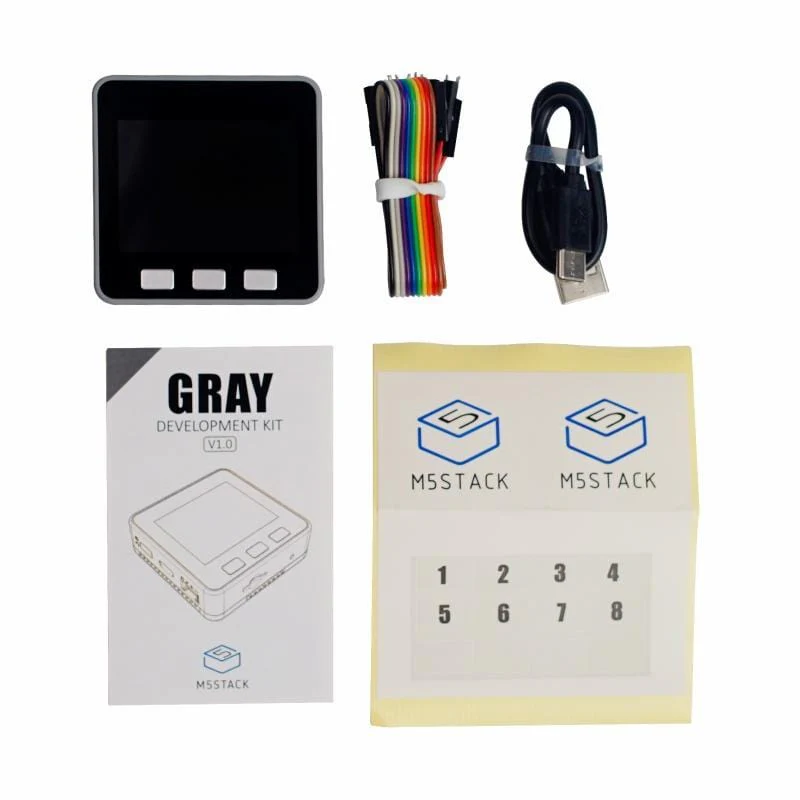

Includes
- 1x Gray
- 10x Female-male Dupont connectors
- 1x Type-C USB cable (20cm)
- 1x User Manual
- 1x Sticker
Applications
- Internet of things terminal controller
- Stem education product
- DIY creation
Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory | 16MB (old: 4MB) |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit |
| Speaker | 1W-0928 |
| Button | Custom button x 3 |
| Core Bottom Port | PIN (G1，G2，G3，G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36) |
| MEMS | BMM150 + MPU6886 |
| Battery | 110mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Size | 54.2 x 54.2 x 17.9mm |
| Weight | 49.2g |
| Case Material | Plastic ( PC ) |
Original: $33.30
-65%$33.30
$11.65
Description
A starter kit for the modular, stackable, and portable M5Stack IoT development board series, with a range of inbuilt motion sensors.
Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.
The Grey kit includes a built-in 9-Axis IMU sensor (6-Axis posture acceleration measurement and 3-Axis magnetic measurement), which lets you detect acceleration, angle, and trajectory - ideal for collecting sports data or a 3D remote gesture controller.
For more information and for help getting started, click here
Product Features
- ESP32-based
- Built-in Speaker, Buttons, LCD
- TF card slot (Up to 16GB support)
- Battery Socket & Lipo Battery
- Extendable Pins & Holes
- M-Bus Socket & Pins
- Development Platform UIFlow, MicroPython, Arduino
Includes
- 1x Gray
- 10x Female-male Dupont connectors
- 1x Type-C USB cable (20cm)
- 1x User Manual
- 1x Sticker
Applications
- Internet of things terminal controller
- Stem education product
- DIY creation
Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory | 16MB (old: 4MB) |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit |
| Speaker | 1W-0928 |
| Button | Custom button x 3 |
| Core Bottom Port | PIN (G1，G2，G3，G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36) |
| MEMS | BMM150 + MPU6886 |
| Battery | 110mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Size | 54.2 x 54.2 x 17.9mm |
| Weight | 49.2g |
| Case Material | Plastic ( PC ) |
