M5Stack LoRa Module (868MHz) v1.1

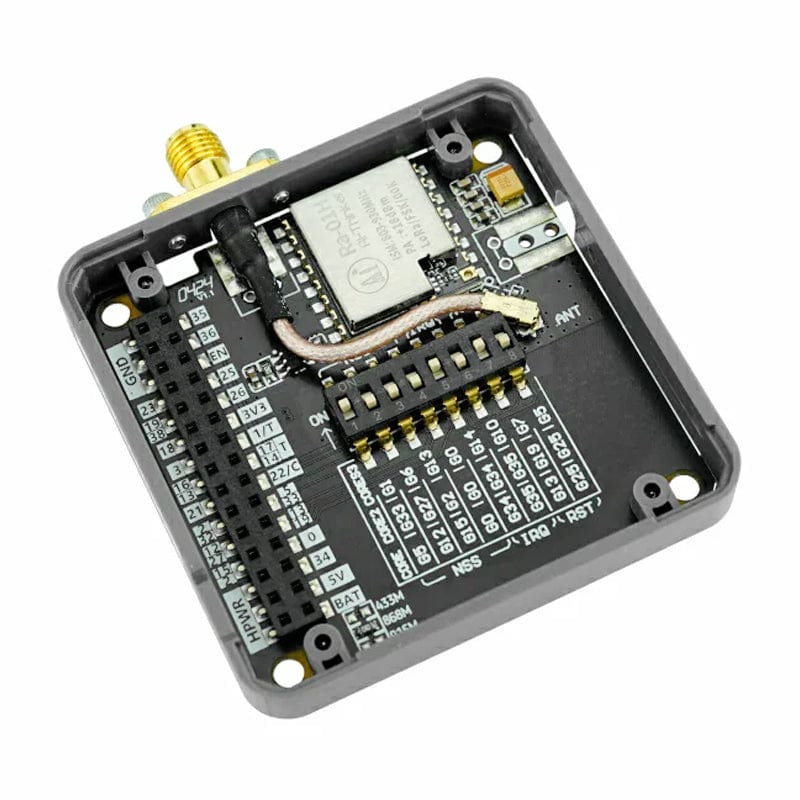

The LoRa868 module is part of the M5Stack stacking module series and is made for LoRa communication at a frequency of 868MHz. It comes with a standard SMA antenna and includes two additional patch MCX antenna socket interfaces, allowing you to switch between different antenna types as needed. The module also features a DIP switch, providing flexible switching between different communication pins for the simultaneous use of multiple stacks, offering better customisation and flexibility. It is ideal for remote monitoring, home and industrial automation, and Internet of Things (IoT) devices.

Features

• Serial communication protocol: SPI
  • Ra-01H Module
• Dip switch Switches I/O
• Multiple stacks
• Operating frequency: 803~930 MHz
• Supports FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation modes
• Reception sensitivity: as low as -148 dBm
• Programmable bit rate up to 300Kbps
• External antenna interface
• Built-in dip switch toggle pin
• Development platform: Arduino, Micropython, UIFlow (Blockly)

Specifications

Resources	Parameters
Spectral Range	803~930MHz
Communication Interface	SPI
Programmable Bit Rate	Up to 300kbps
Operating Temperature	0-40°C

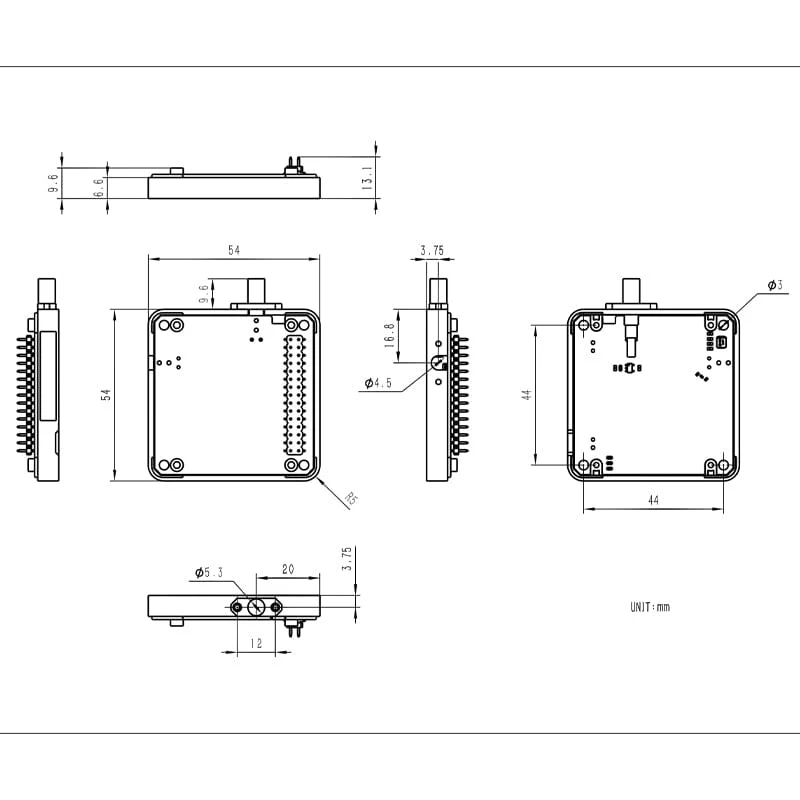

Product Size	54 x 54 x 13.1mm
Package Size	92 x 63 x 25mm
Product Weight	16.1g
Package Weight	44.6g

Resources

• Product Wiki

Package Contents

• 1x LoRa868_V1.1 Module
• 1x SMA External Antenna
