M5Stack M5StickC NeoFlash Hat [Discontinued]

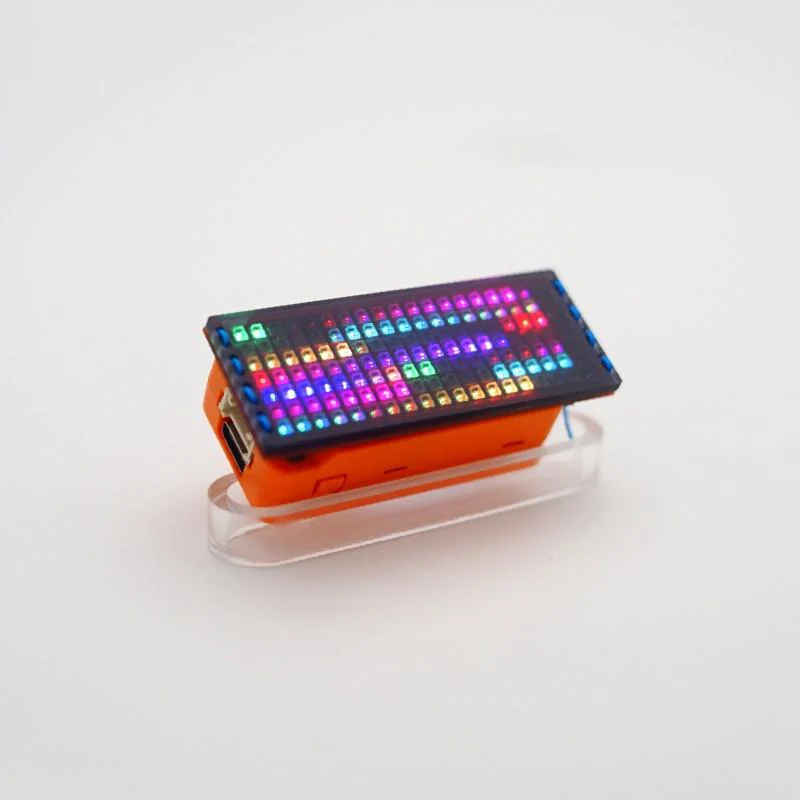

The NeoFlash HAT is specifically designed for the M5StickC and is an RGB LED matrix. The space on the PCB board is 58 x 23.5mm, and the total includes 126 RGB LEDs. Every single RGB LED is programmable, which allows you to set the colours and brightness.
We even prepared a dark brown acrylic board to cover the NeoFlash board. We also provided two types of pin sets with a 90-degree bend so that you can attach the NeoFlash board onto the M5StickC in different ways. If you're thinking about adding a display on your project, the NeoFlash is a good choice.
Features
- Primordial three basic colors for each pixel
- Total brightness levels: 0-255
- Achievable of 16777216 completed all-color display.
- 24-bit RGB data: 8-bit for each color
- RGB LED Quantity: 126 pcs
- Hole Distance: 0.1 in-(2.54 mm)
- Hole Dimension: 0.039 "1mm (CNC Factory)
- Assembly Approach: back to back (default) / horizontal contact
Package Contents
- 1x Neoflash HAT
- 2x 8 pin 2.54mm bend pin set（90°）
- 1x 2mm dark brown acrylic board
- 2x 15cm string (#71, 0.4mm)
Specifications
| Resources | Parameter |
|---|---|
| Net weight | 11g |
| Gross weight | 20g |
| Product Size | 58 x 24 x 3mm |
| Package Size | 67 x 53 x 12mm |
Resources
Original: $14.50
-65%$14.50
$5.07
Description
The NeoFlash HAT is specifically designed for the M5StickC and is an RGB LED matrix. The space on the PCB board is 58 x 23.5mm, and the total includes 126 RGB LEDs. Every single RGB LED is programmable, which allows you to set the colours and brightness.
We even prepared a dark brown acrylic board to cover the NeoFlash board. We also provided two types of pin sets with a 90-degree bend so that you can attach the NeoFlash board onto the M5StickC in different ways. If you're thinking about adding a display on your project, the NeoFlash is a good choice.
Features
- Primordial three basic colors for each pixel
- Total brightness levels: 0-255
- Achievable of 16777216 completed all-color display.
- 24-bit RGB data: 8-bit for each color
- RGB LED Quantity: 126 pcs
- Hole Distance: 0.1 in-(2.54 mm)
- Hole Dimension: 0.039 "1mm (CNC Factory)
- Assembly Approach: back to back (default) / horizontal contact
Package Contents
- 1x Neoflash HAT
- 2x 8 pin 2.54mm bend pin set（90°）
- 1x 2mm dark brown acrylic board
- 2x 15cm string (#71, 0.4mm)
Specifications
| Resources | Parameter |
|---|---|
| Net weight | 11g |
| Gross weight | 20g |
| Product Size | 58 x 24 x 3mm |
| Package Size | 67 x 53 x 12mm |
