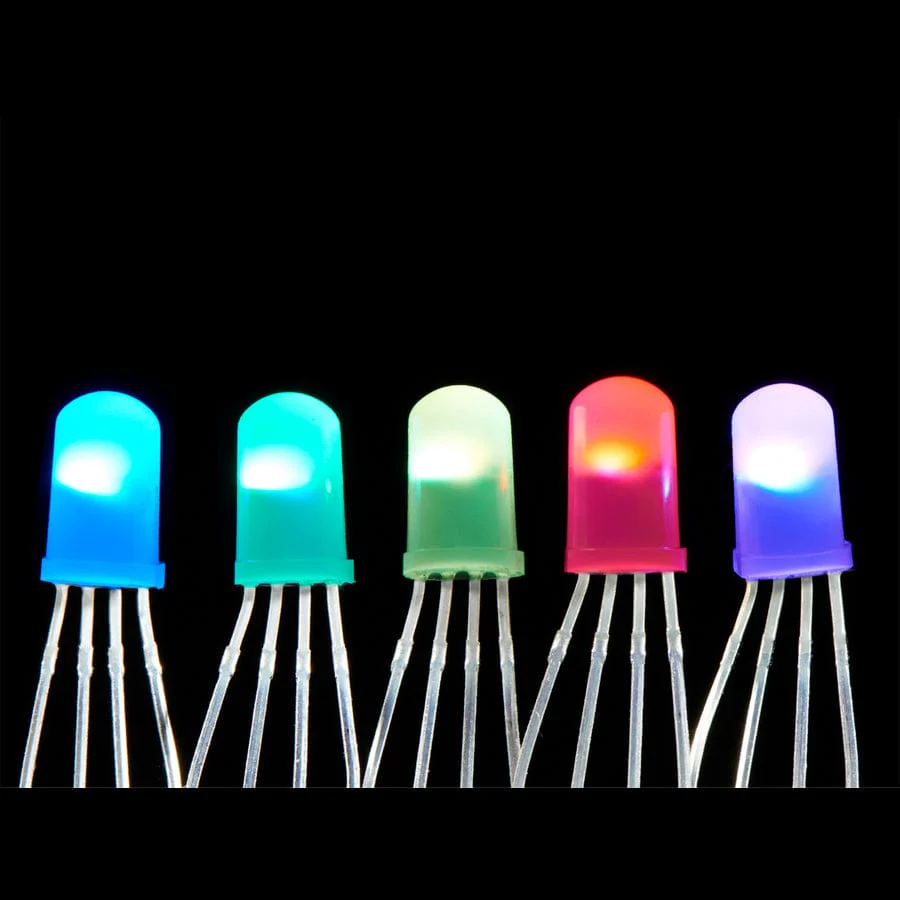

NeoPixel Diffused 5mm Through-Hole LED - 5 Pack
LOLwut? NeoPixels in 5mm through-hole variety? Oh yes, we haz them! If you like NeoPixel strips you'll love these 5mm diffused through-hole NeoPixels. All the single-pin-controlling-hundreds-of-LEDs goodness in a breadboard-friendly format. Each LED looks just like a shorter version of the classic through-hole 5mm RGB LED with 4 legs, but instead of just red/green/blue, there's a little chip inside that can control the LED with high-speed PWM for 24-bit colour.
These are the diffused type instead of the Neopixel Clear 5mm LEDs. They look a lot like the 8mm variety but are smaller.
Power them with 5V and chain them together, tying the Data-Out pin of one to the Data-in of the previous one in the chain. If you're using an Arduino, you can control these LEDs with our wonderfully written Neopixel library for Arduino. They also work great with our Trinkets. Note that these are "RGB" instead of the "GRB" format used in the 5050-sized LEDs you are so used to. Check in the NeoPixel example code for how to swap the colours automatically.
These great-looking LEDs are also fast and responsive with a milky-diffusing lens for a soft look.
They may ship with either WS2812B or SK6812-based LEDs. They are the same brightness, colour and protocol. We don't have a datasheet for the LEDs themselves yet.
Note: Breadboard, cables, wires and board are NOT included
Revision History
- As of Feb 14, 2021 - we are shipping a slightly different, but physically compatible version. The new version does not have a 'blue flicker' on startup like before, it stays off until data is received. The current per LED is 12mA max instead of 18mA. The shape, pins, and pin-out are identical, however, the colour and brightness may be slightly different and noticeable if the two versions are next to each other.
Specifications
- Weight: 0.3g
- The leads are flexible. The spacing starts at 1.1mm (0.04") but we were able to bend them as needed
