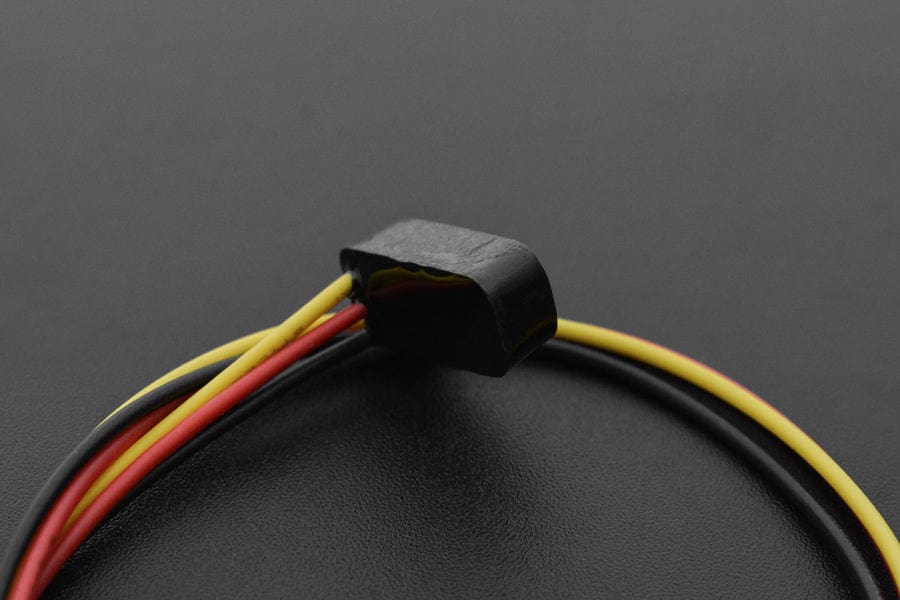

Gravity: Non-contact Liquid Level Switch [Discontinued]
Attention: The new version of the product will no longer have sponge gaskets after the update. Please refer to the new product picture.
This non-contact liquid level switch can be triggered when the liquid level falls below the sensor attached to the outside surface of a non-metal container.
Unlike traditional liquid level sensors, it does not need to be immersed in liquid. So, in this way, the liquid will not be contaminated and the life of the sensor will not be reduced so fast because of the contact between liquid and sensors.
The sensor is very sensitive and stable, and the output current is up to 100mA which can directly drive a relay.
You can use this switch to monitor the condition of your water machine or make a water-drinking reminder by attaching it to the surface of your cup.
Specification
- Power supply: +5V
- Working current: 25μA
- Working temperature: -25~125℃
- Detectable wall thickness: 1~13mm(0.40"x5.12")
Documents
Shipping List
- Non-contact Liquid Level Switch(one sensor cable included) x1
$7.80
Gravity: Non-contact Liquid Level Switch [Discontinued]—
$7.80
Description
Attention: The new version of the product will no longer have sponge gaskets after the update. Please refer to the new product picture.
This non-contact liquid level switch can be triggered when the liquid level falls below the sensor attached to the outside surface of a non-metal container.
Unlike traditional liquid level sensors, it does not need to be immersed in liquid. So, in this way, the liquid will not be contaminated and the life of the sensor will not be reduced so fast because of the contact between liquid and sensors.
The sensor is very sensitive and stable, and the output current is up to 100mA which can directly drive a relay.
You can use this switch to monitor the condition of your water machine or make a water-drinking reminder by attaching it to the surface of your cup.
Specification
- Power supply: +5V
- Working current: 25μA
- Working temperature: -25~125℃
- Detectable wall thickness: 1~13mm(0.40"x5.12")
Documents
Shipping List
- Non-contact Liquid Level Switch(one sensor cable included) x1
