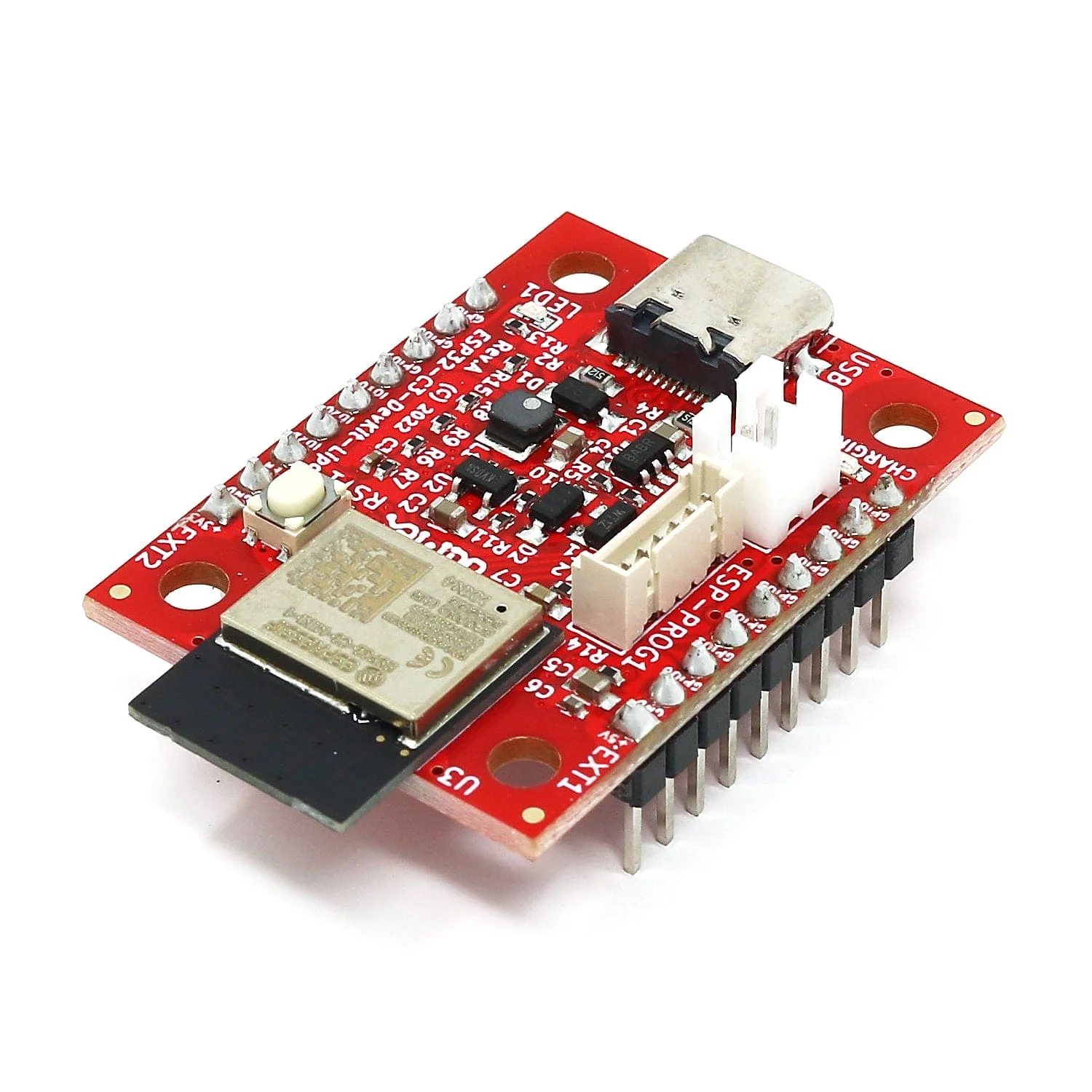

Olimex ESP32-C3-DevKit-Lipo RISC-V Development Board

The Olimex ESP32-C3-DevKit-Lipo is an entry-level RISC-V development board with USB-C, JTAG, WiFi, Bluetooth 5 and a built-in Lipo charger.

The board offers 15 GPIOs, 4MB embedded FLASH, a LiPo battery connector with built-in LiPo charger and status LEDs, an onboard antenna for the onboard WiFi and Bluetooth and more! Programming is achieved via the USB-C connection - be sure to grab a quality USB-C cable.

It is breadboard-compatible *BUT* due to the width of the board, it will need to straddle across two standard breadboards to allow access to pins.

Features

• RISC-V single-core processor running at 160 Mhz
• 384 KB ROM, 400 KB SRAM, 8 KB SRAM in RTC
• 4 MB embedded flash
• 2.4 GHz WiFi (802.11 b/g/n) 1T1R up to 150 Mbps
• Bluetooth 5
• 15 GPIOs
• Onboard antenna
• Built-in LiPo battery charger with STATUS LED, for handheld operations
• Lipo battery connector for LiPo batteries
• RESET button
• STATUS LED
• ICSP programming connector for rescue with ESP-PROG-C
• 4 mount holes
• USB-C connector for Debugging and Programming
• EXT1, EXT2 headers with all signals and power supply

Resources

Documentation

• User manual
• EU Declaration of Conformity
• UKCA Declaration of Conformity

Hardware

• Schematic in PDF format
• GitHub repository

Software

• Esspresif guide for Arduino IDE installation
• Esspressif guide for PlatformIO installation
• Espressif ESP-IDF installation
• JTAG debugging installation

Package Contents

• 1x Olimex ESP32-C3-DevKit-Lipo RISC-V Development Board
