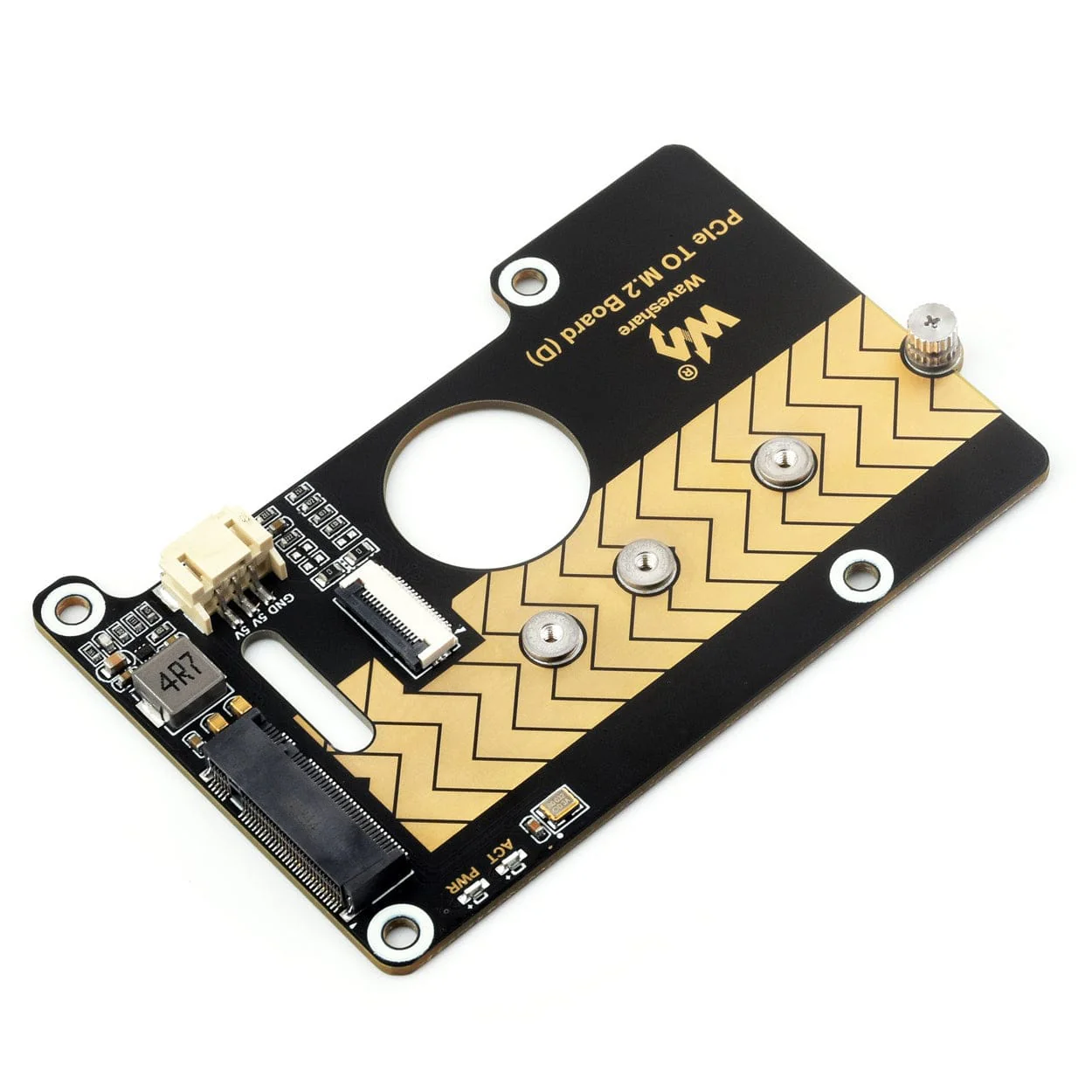

M.2 Adapter Board (D) for Raspberry Pi 5

This PCIe M.2 add-on board for Raspberry Pi 5 allows you to run fast M.2 NVMe SSDs via the Pi 5's PCIe interface, mounting on top of your Raspberry Pi without blocking or consuming any GPIO pins.

The unique design of this M.2 add-on includes a central cut-out to ensure any installed Active Cooler gets the airflow it requires, something often overlooked by alternative solutions.

The board is compatible with 2230 / 2242 / 2260 / 2280 format M.2 NVMe SSDs, supporting PCIe X1 Gen2 or Gen3 modes. Onboard LED indicators highlight power status and M.2 activity.

A 2-pin PH2.0 header also gives you the option to provide additional power to the SSD from your GPIO pins using the included cable, in case your SSD is high-capacity and requires additional current.

Raspberry Pi and SSD not included

Features

• PCIe M.2 add-on board for Raspberry Pi 5
• Mounts on top of the Pi 5 without blocking GPIO pins
• Central cut-out allows full airflow to the Raspberry Pi Active Cooler
• Compatible with M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes
• Supports PCIe X1 Gen2 and Gen3 modes
• Onboard LEDs for power and M.2 activity status
• Optional SSD power input via 2-pin PH2.0 header using included GPIO cable

Resources

• Product Wiki

Package Contents

• 1x PCIe M.2 Adapter Board (D) for Raspberry Pi 5
• 1x 16-pin PCIe Cable - 40mm
• 1x PH2.0 3-pin power cable - ~5cm
• 1x Standoff pack

Raspberry Pi and SSD not included
