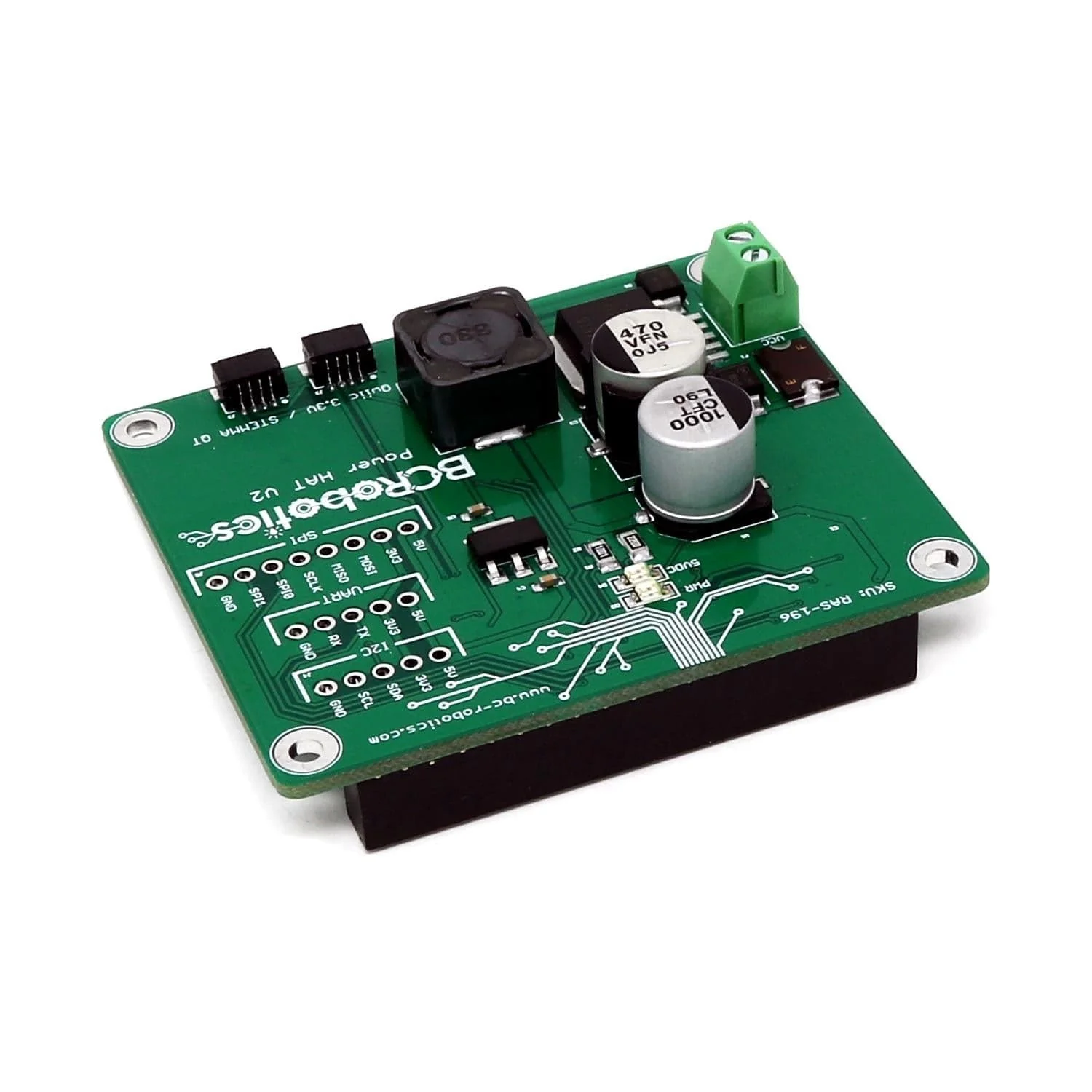

Power HAT V2 for Raspberry Pi
Need a simple way to power a Raspberry Pi from a DC source? This Raspberry Pi Power HAT solves this problem!
Onboard is a fused and reverse polarity protected DC input coupled to a beefy 3A 5V DC/DC converter. Connected to a 12V automotive battery, this board is happy running the Pi under heavy load all day long.
To make this board even more useful, we have also included two SparkFun Qwiic / Adafruit STEMMA QT connectors – this is an easy-connect system for I2C sensors, actuators, shields using pre-built cables that make prototyping faster and less prone to error. Add sensors and further expand your Pi’s monitoring and control capabilities as you need, with no soldering required.
This version is fully assembled – no soldering required. Just hook it up and you are good to go! The board is compatible with all “A” and “B” versions of the Raspberry Pi (Pi A+, B+, 2, 3, 3A+, 3B+, and Pi 4).
Note: Raspberry Pi not included
Features
- Two STEMMA QT / Qwiic connectors
- 5V 3A Output to power Raspberry Pi
- Dimensions: 65 x 56mm
- Recommended Input: 7 – 16VDC
- Separate onboard 3.3V Regulator for Qwiic / STEMMA QT Bus
- Maximum Regulator Input: 36VDC
- Weight: 35g
- Manufactured in Canada
