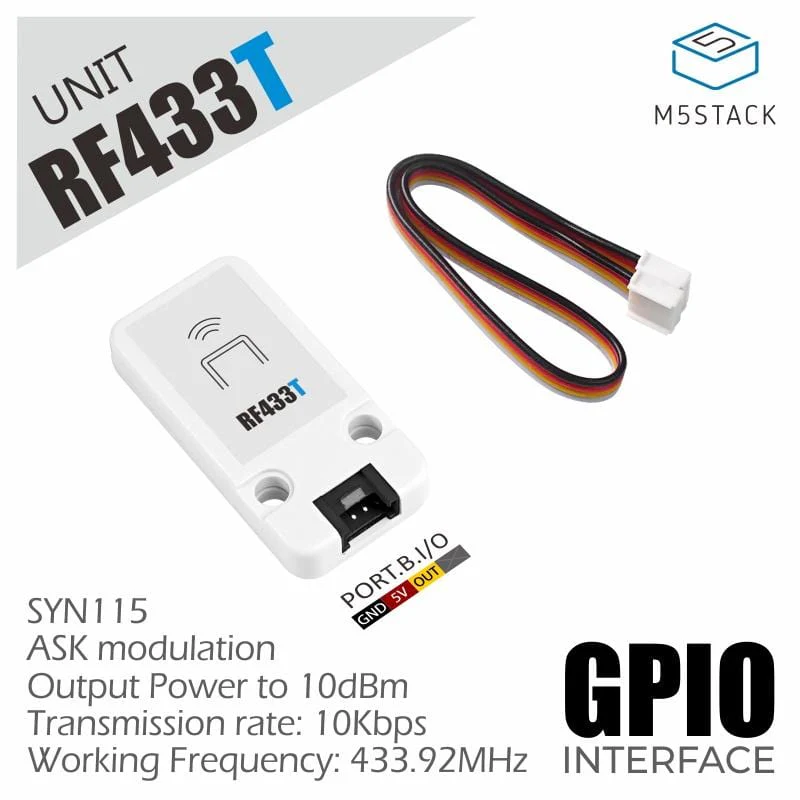

M5Stack RF UNIT 433MHz Transmitter (SYN115)
This RF Unit is a radio frequency (RF) transmitter, using SYN115 radio frequency transmitter IC, working frequency is 433.92MHz (using ASK modulation) which is commonly used by wireless controllers, a built-in PCB antenna, stable signal transmission distance up to 10M, and the output power reaches 10dBm. The compact housing design can be embedded in a variety of radio frequency remote control applications.
Features
- Working frequency: 433.92MHz
- Data transmission rate 10kbps (ASK modulation)
- Output power 10dBm
- PCB antenna
Package Contents
- 1x RF433T Unit
- 1x HY2.0-4P Cable
Specifications
| Resources | Parameter |
|---|---|
| Transmitter IC | SYN115 |
| Working current | 12mA |
| Stable communication distance | 10M |
| Output Power | 10dBm |
| Antenna type | PCB antenna |
| Net weight | 6g |
| Gross weight | 21g |
| Product Size | 48 x 24 x 8mm |
| Package Size | 67 x 53 x 12mm |
Resources
Original: $4.40
-65%$4.40
$1.54
Description
This RF Unit is a radio frequency (RF) transmitter, using SYN115 radio frequency transmitter IC, working frequency is 433.92MHz (using ASK modulation) which is commonly used by wireless controllers, a built-in PCB antenna, stable signal transmission distance up to 10M, and the output power reaches 10dBm. The compact housing design can be embedded in a variety of radio frequency remote control applications.
Features
- Working frequency: 433.92MHz
- Data transmission rate 10kbps (ASK modulation)
- Output power 10dBm
- PCB antenna
Package Contents
- 1x RF433T Unit
- 1x HY2.0-4P Cable
Specifications
| Resources | Parameter |
|---|---|
| Transmitter IC | SYN115 |
| Working current | 12mA |
| Stable communication distance | 10M |
| Output Power | 10dBm |
| Antenna type | PCB antenna |
| Net weight | 6g |
| Gross weight | 21g |
| Product Size | 48 x 24 x 8mm |
| Package Size | 67 x 53 x 12mm |
