RGB LED Module (Unassembled Kit) [Discontinued]

This Arduino-compatible module uses three TI TLC5940 PWM LED chips to drive a 4x4 array of RGB LEDs. Each color is controlled by a different chip so you can adjust the reference resistors for the appropriate current. The TLC5940 chips are not directly connected to any Arduino pins, but a header is provided for you to make a manual connection depending on the needs of your sketch.

Up to 16 of these modules can be serially connected to make a fantastic LED wall or a LED circle.

It can be directly connected with Arduino via F/M cables. If you want ,you can also connect it to Interface shield through an IDC2x5 cables,and then plug the Interface shield to Arduino.

• Supply Power:DC 5v
• RGB LED: common anode
• IDC2x5 Serial Data Interface
• 4x4 array of RGB LEDs
• TLC5940 LED driver
• 16 Channels RGB LED with PWM control
• Size:78x45x12mm (3x1.8x0.5'')
• Interface:
  • D13(SCK) TLC5940 SCLK
  • D10(SS) TLC5940 BLANK
  • D11(MOSI) TLC5940 SIN
  • D9 TLC5940 XLAT
  • D3 TLC5940 GSCLK

• Product Wiki page
• Soldering tutorial
• TLC5940 sample codes
• TLC5940 DataSheet
• Arduino library(contains simple code)
• Schematics

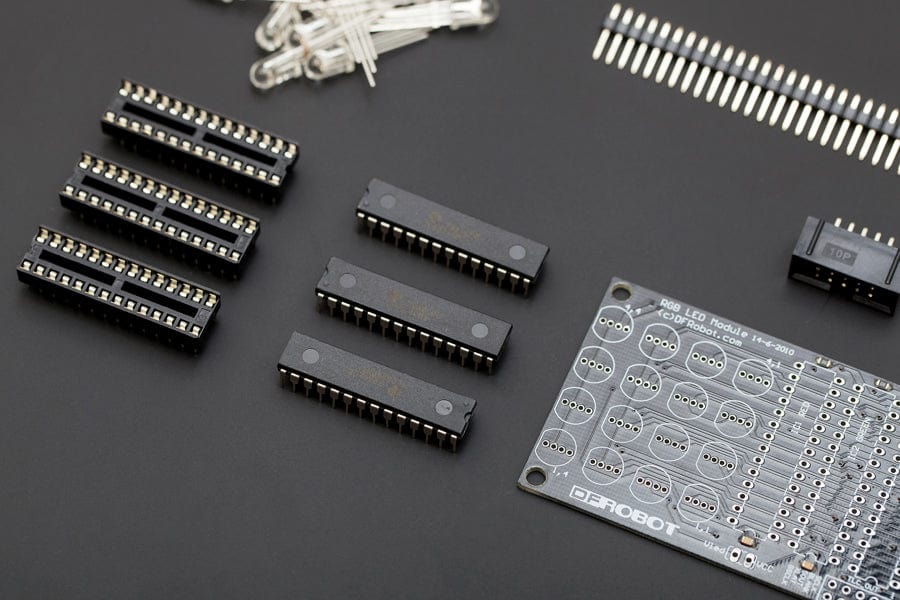

• RGB Module PCB board x1
• RGB LEDs x16
• IDC10 Interface x1
• TLC5940NT chips x3
• DIP28 socket x3
• Jumper cap x1
• 20pin row needles x1
