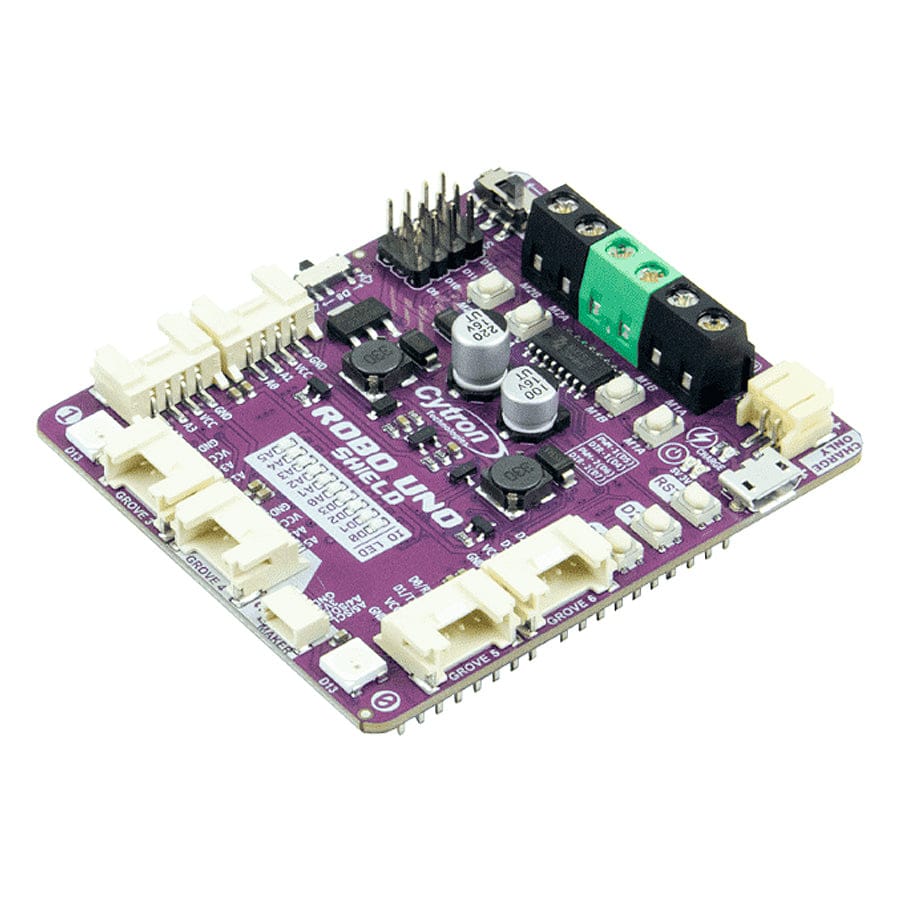

Robo Uno Shield
The Cytron Robo Uno Shield is a multifunctional robotics add-on board for the Arduino Uno and Uno-compatible boards. It simplifies motor and servo control, sensor integration and power management by reducing the need for external components or complex wiring.
Designed for educational and prototyping use, it includes dedicated ports for Grove and Qwiic/STEMMA QT, as well as built-in support for 2x DC motors and 4x servos. It also features automatic power selection, LiPo battery charging with protection, and direct compatibility with both Arduino IDE and mBlock programming platforms.
As always with Cytron's hardware - that's not all - it's packed with lots of other handy features such as IO indication LEDs, motor quick test buttons and more. Check out the video below and the features list to learn more!
Features
- Compatible with all Arduino Uno models and Uno-compatible boards
- Supports 4x servos
- Supports 2x DC motors
- Maximum current 1.0A continuous / 1.5A peak (less than 5 seconds)
- Motor quick-test buttons and indicator LEDs
- Dual H-bridge motor driver with quick test buttons and LED indicators

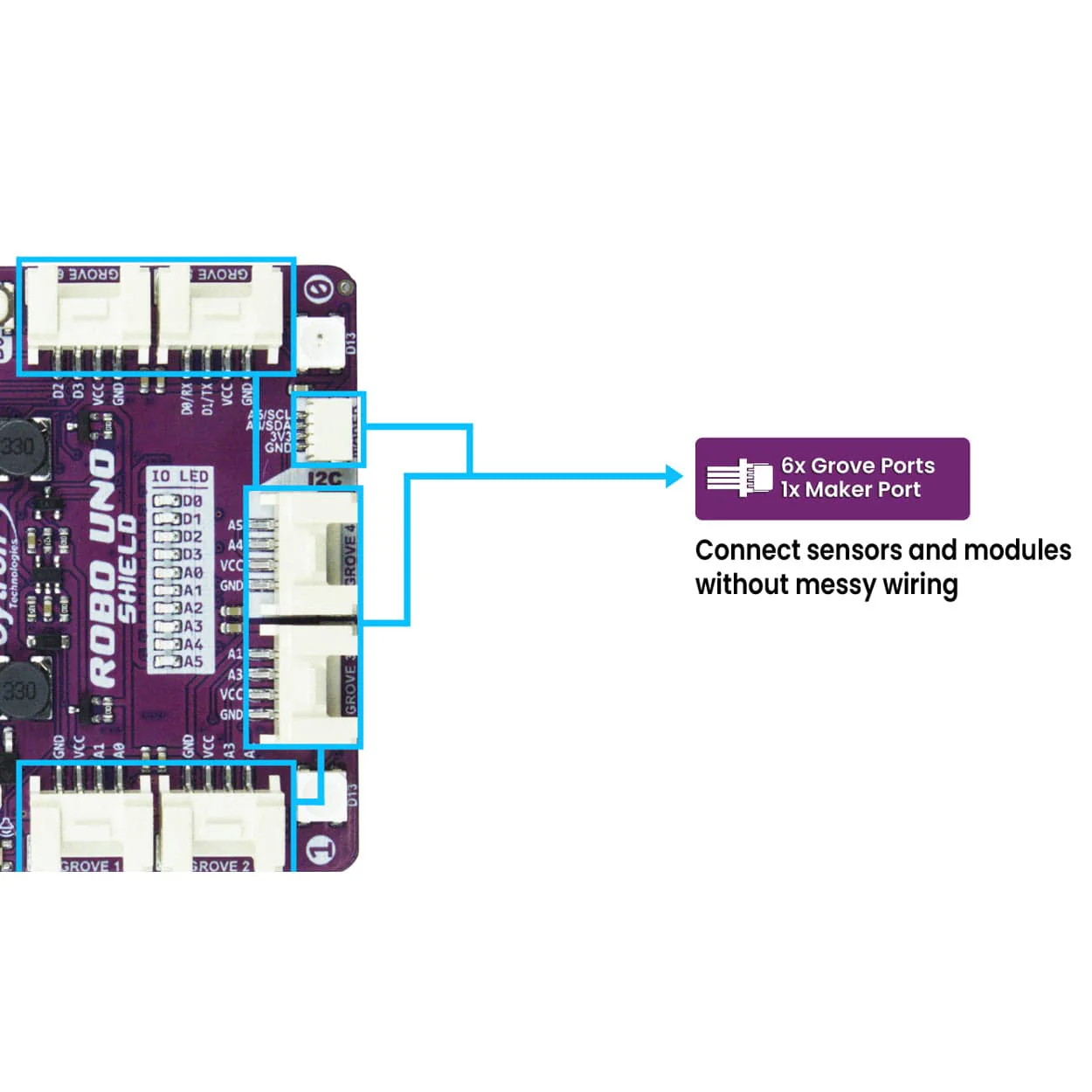

- 6x Grove ports
- 1x Qwiic/STEMMA QT port

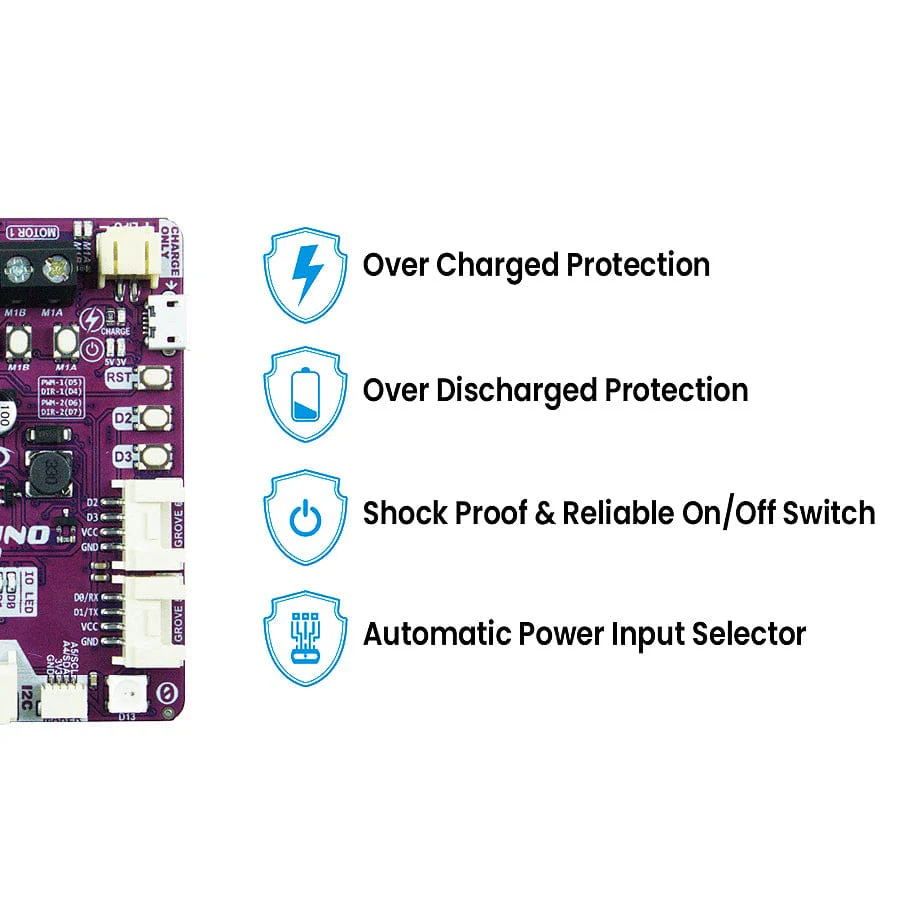

- Built-in 1-cell LiPo/Li-Ion charging circuit with safety features
- Overcurrent protection
- Overvoltage protection
- Short circuit protection
- Overcharging protection
- Over-discharging protection
- Piezo buzzer with mute switch

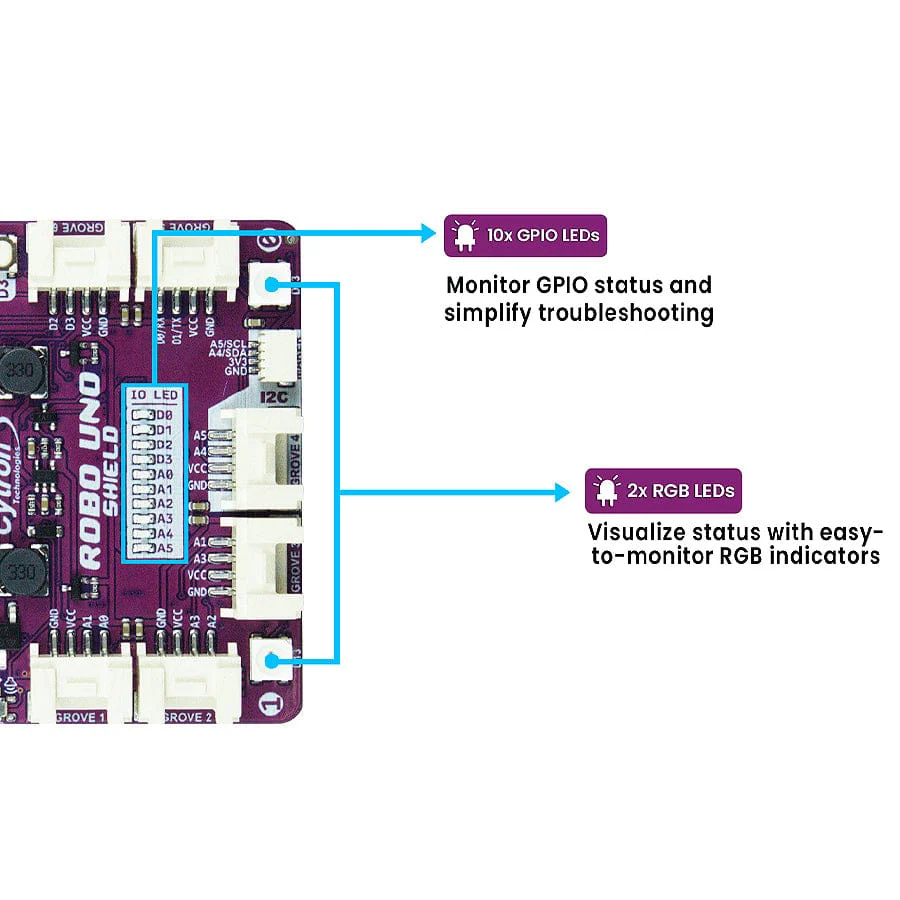

- 10x IO status LEDs
- 2x RGB LEDs
- Automatic power selection:
- LiPo/Li-Ion battery (3.7V)
- VIN terminal block (3.6–6V)
- Micro USB (5V)
- Power on/off switch with status LED
- VCC voltage automatically follows the microcontroller reset pin voltage
- Supports Arduino IDE and mBlock programming
Specifications
| Motor Driver | Dual-channel H-bridge |
| Motor Voltage | 2.5V to 6V DC |
| Motor Current | 1.0A continuous, 1.5A peak (under 5 seconds) |
| Power Inputs | VIN (3.6–6V), VBAT (3.7V LiPo/Li-Ion), VUSB (5V via micro USB) |
| Battery Charging | 1-cell LiPo/Li-Ion with overcharge/discharge protection |
| Programming | Arduino IDE and mBlock supported |
Resources
Package Contents
- 1x Robo Uno Shield
- 1x Small Philips Screwdriver
- 4x Grove to Female Header Cables
Original: $14.20
-65%$14.20
$4.97
