RTC WatchDog HAT for Raspberry Pi [Discontinued]
Looking for an RTC Module for your next Raspberry Pi project? The RTC WatchDog HAT for Raspberry Pi from Waveshare is exactly what you are looking for. This HAT incorporates a highly accurate I2C real-time clock (RTC) that features a DS3231SN high precision RTC chip, and a backup battery holder to ensure accurate timing in the event of power-losss. A standard 40-pin header layout for the Raspberry Pi and Raspberry Pi Zero makes for easy integration, and is compatible with extended header-pins to enable HAT stacking.
Online development resources are available, which include wiring guidance and example code, with additional information being found on the Product Wiki & Manual.
Note: The Raspberry Pi is NOT included
Features
- MAX705 monitoring circuit with auto reset function
- Incorporates DS3231SN high precision RTC chip with backup battery holder
- Reset pin selection for swiching watchdog
- Indicator for watchdog output warning

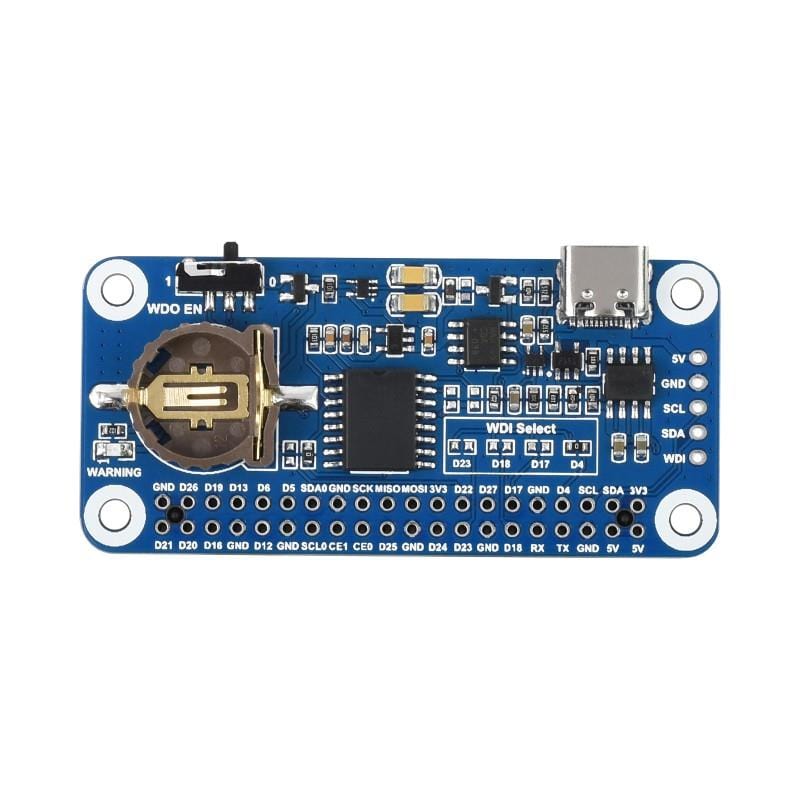

Whats On Board
- USB Type-C power input
- MAX705 watchdog
-
Watchdog output enable
- 1: Enabled
- 0: Disabled
-
CR1220 RTC battery holder
- RTC power supply, supports CR1220 button cell
-
Watchdog output warning
- lights up if the watchdog is overflow
- Raspberry Pi 40PIN GPIO header
-
RTC chip
- DS3231 high precision RTC chip
- Watchdog reset pin selection
-
Control interface
- For use with other host boards
Connection Examples
Resources
Pinout
Package Contents
- 1x - RTC WatchDog HAT
- 1x - 20-PIN female header
- 1x - Standoffs pack
Original: $12.50
-65%$12.50
$4.38
