SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued]

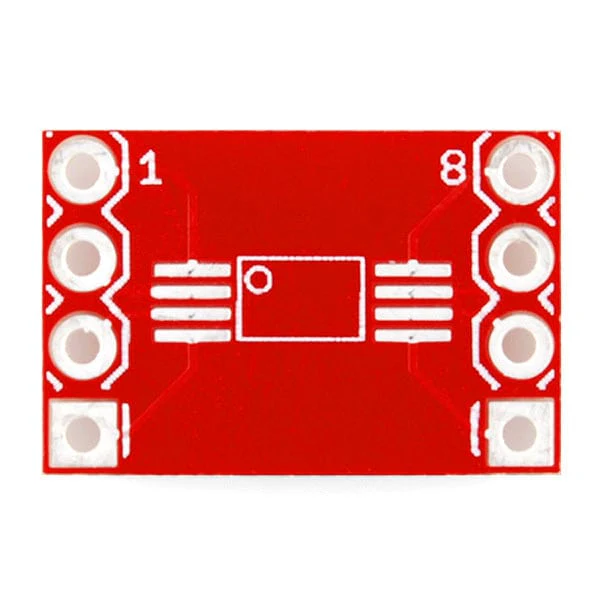

8-Pin SSOP to DIP breakout board. The footprint was rotated to accommodate different width SSOP devices and can be used with 8-pin SSOPs.
Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine. Can be used with packages from 0.200" (5mm) up to 0.450" (11.4mm) in width.
Break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.
Features
- 8-pin: 0.6 x 0.4" (15.24 x 10.16mm) 500mil DIP spacing
Resources
- Schematic
- Eagle Files
- GitHub (Design Files)
Original: $3.80
-65%$3.80
$1.33
Description
8-Pin SSOP to DIP breakout board. The footprint was rotated to accommodate different width SSOP devices and can be used with 8-pin SSOPs.
Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine. Can be used with packages from 0.200" (5mm) up to 0.450" (11.4mm) in width.
Break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.
Features
- 8-pin: 0.6 x 0.4" (15.24 x 10.16mm) 500mil DIP spacing
Resources
- Schematic
- Eagle Files
- GitHub (Design Files)
