Universal ePaper Driver Shield (B) for Arduino

This E-Paper raw driver shield is equipped with an onboard voltage translator making it compatible with both 3.3V and 5V microcontrollers. It includes an onboard MX25R6435F Flash chip for data storage and management.

Additionally, it features reserved external RAM soldering pads, providing the option to expand memory space as needed for more complex projects. This driver shield is an ideal choice for people using e-paper displays in their projects, as it offers flexibility and ease of use. The shield connects with a variety of host boards including nRF528xx, UNO, Leonardo, NUCLEO, and XNUCLEO through standard Arduino connectivity.

Note: The board and e-paper screen are NOT included

Features

• Standard Arduino connectivity, compatible with host boards like nRF528xx, UNO, Leonardo, NUCLEO, XNUCLEO
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Onboard MX25R6435F Flash chip
• Reserved external RAM soldering pads for expanding more space
• Comes with online resources and manual

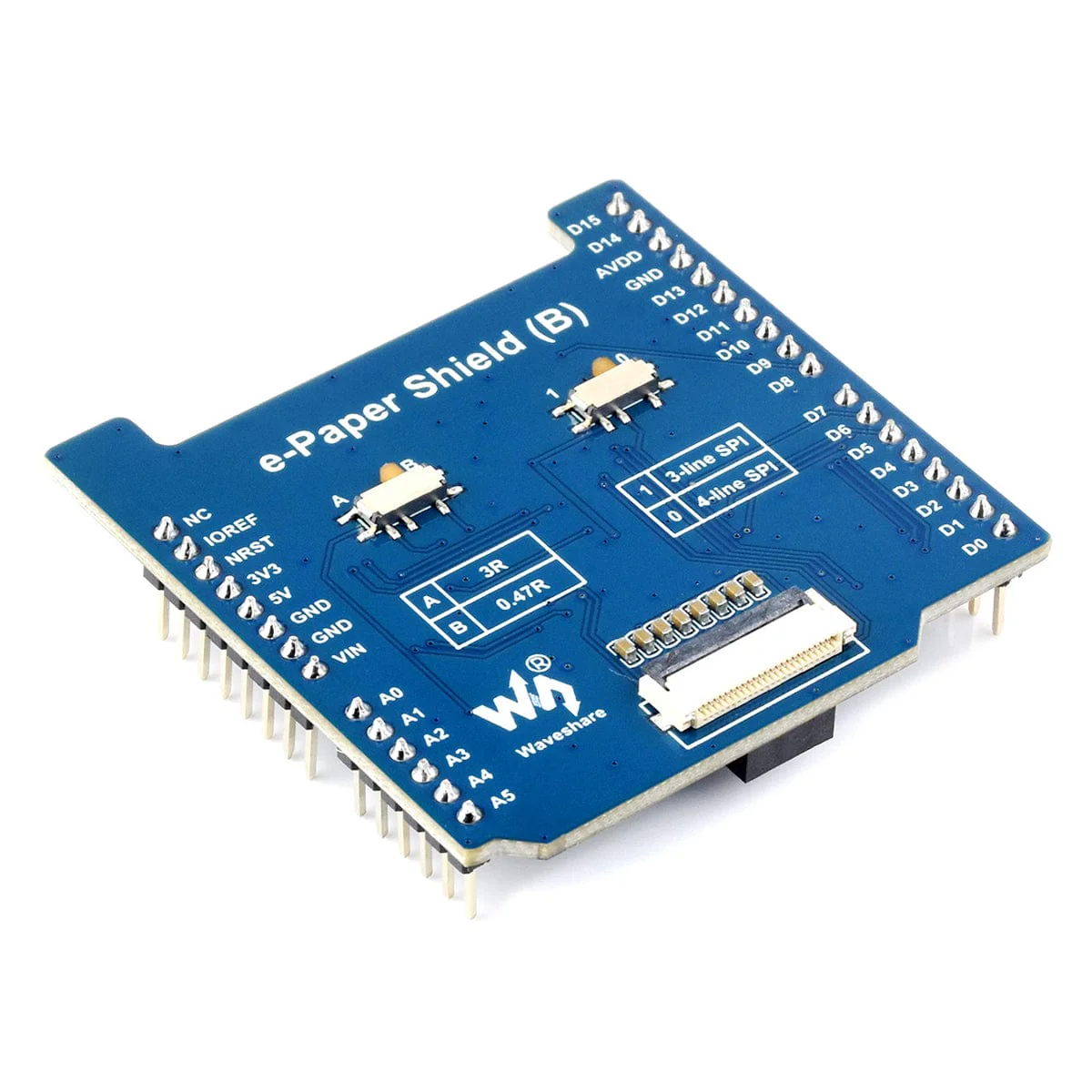

What's on Board

1. E-Paper driver resistor selection
2. 3-wire/4-wire SPI selection
3. 24-Pin E-paper connector
4. Arduino standard interface
5. Voltage translator
6. Flash Chip
7. DIP switch
   Arduino board SPI communication selection (ICSP by default)
8. ICSP header
9. Power selection
   IOREF by default
10. Reserved RAM soldering pads

Specifications

Operating Voltage	3.3V/5V
Interface	3-wire SPI, 4-wire SPI
Flash Memory Size	64M-bit / 8M-byte
Reserved RAM Package	SOIC-8

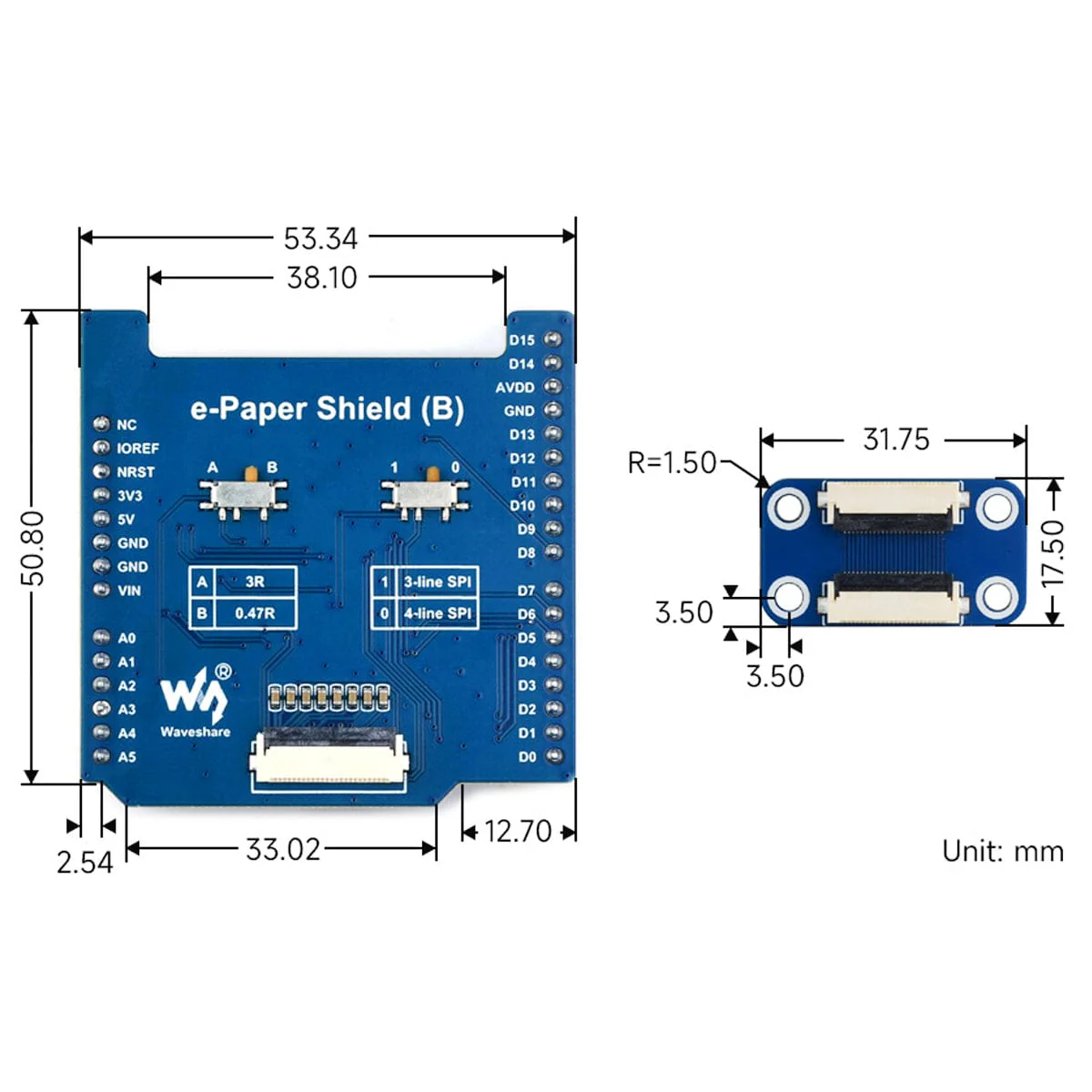

Dimensions	53.34 x 53.34mm

Resources

• Product Wiki
• Schematic
• E-Paper_Floyd-Steinberg

Pinout

Board Pin	PIN	Description
5V/3.3V/IOREF(default)	VCC	Power input
GND	GND	Ground
SCLK/D13	SCLK	SPI clock input
MOSI/D11	MOSI	SPI data input
MISO/D12	MISO	SPI data output
D10	EPD_CS	E-Paper chip selection
D9	EPD_DC	E-Paper data/command
D8	EPD_RST	E-Paper reset
D7	EPD_BUSY	E-Paper busy
D6	Flash_CS	SPI Flash chip selection
D5	RAM_CS	SPI RAM chip selection
D4	SCLK (Flash optional)	SPI clock input (Flash optional)
D3	MOSI (Flash optional)	SPI data input (Flash optional)
D2	MISO (Flash optional)	SPI data output (Flash optional)

Package Contents

• 1x E-Paper Shield (B)
• 1x E-Paper Adapter with 24-Pin FFC cable ~200mm
